64 Tray Rotary Oven for Industrial Bakery.html Plants
Plan industrial output around a large 64 tray rotating chamber and a site-specific utility package. The RMX-64 platform is available with electric, gas, diesel, electric + gas or electric + diesel heating and reaches 300°C. With a 3200 × 2000 × 2400 mm body and 2500 kg net weight, it should be sold as an engineered bakery-plant project — not a plug-and-play appliance.
For plants that need a large industrial oven with proven rack-oven baking results, the RMX-64D is a large-capacity baking oven built for continuous high-volume production — factory-direct industrial baking oven for sale with custom site specifications.
64 trays · 90 kW electric · 5.5 kW auxiliary fuel versions · 2500 kg · Five heating configurations

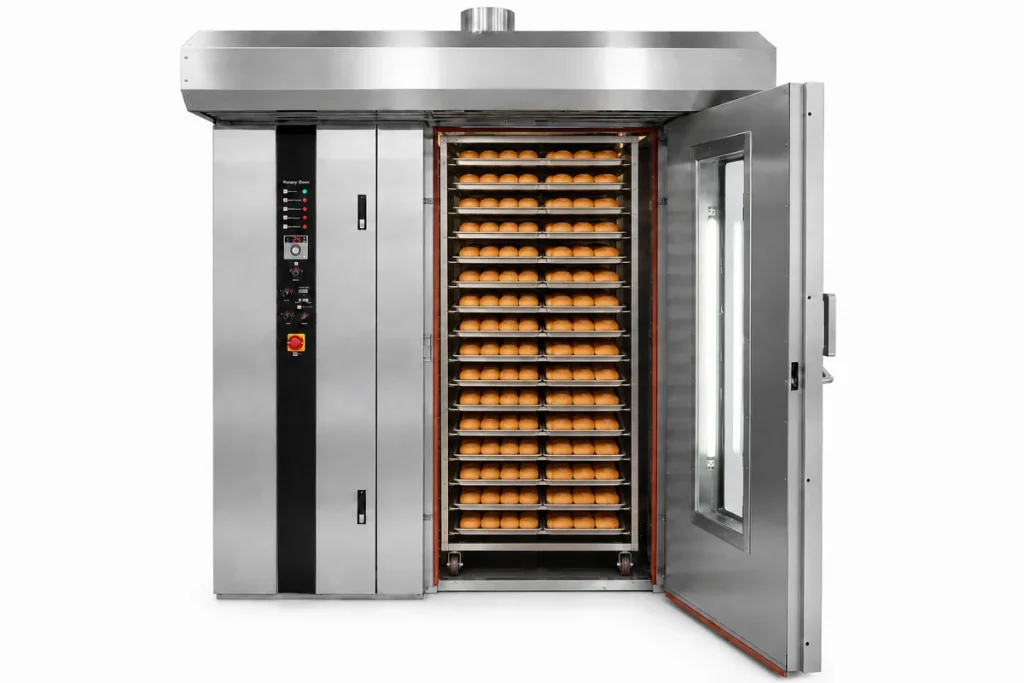

Large-Capacity Rotary Baking for Plant Output
Sixty-four tray positions support high-output bakery plants and central production facilities. To estimate throughput: multiply your pieces per tray × trays per batch × batches per hour × shift hours. Do not publish a universal output figure — actual results depend on product type, loading weight, bake time and shift design.
At 3200 × 2000 × 2400 mm and 2500 kg, this industrial rotating oven is a project-category piece of equipment. Doorway access, floor loading, service space, exhaust route and rigging must be verified before order — not during installation.

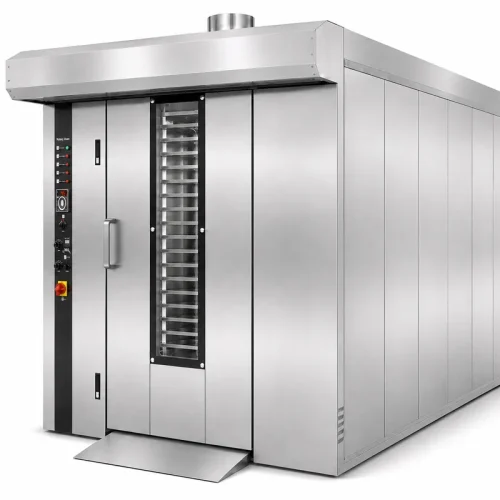

Rack Flow, Staging and Building Layout
With 64 tray capacity, the production flow from proofing → loading → baking → cooling becomes a structured logistics challenge. Plan dedicated rack staging lanes, separation between proofed and baked rack routes, and adequate cooling conveyor or table space downstream.
Note: the 64-tray capacity suggests a two-rack arrangement, but the current specification does not confirm trolley count. Do not publish “double rack” until engineering confirms the number of simultaneous rack trolleys.

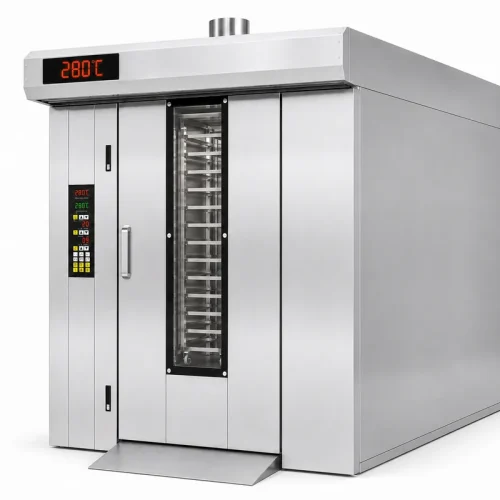

Utility Selection for a 64 Tray Oven
| Model | Energy | Rated Input |
|---|---|---|
| RMX-64D | Electric | 90 kW |
| RMX-64M | Gas | 5.5 kW auxiliary |
| RMX-64C | Diesel | 5.5 kW auxiliary |
| (confirm) | Electric + Gas | Confirm model code |
| (confirm) | Electric + Diesel | Confirm model code |
At 90 kW electrical input, the RMX-64D requires careful electrical infrastructure planning — confirm distribution board capacity, cable sizing and local grid constraints with your electrical contractor before ordering.
The 5.5 kW listed for gas and diesel versions is auxiliary electrical input only. Burner thermal input and fuel consumption must be confirmed for the actual project.

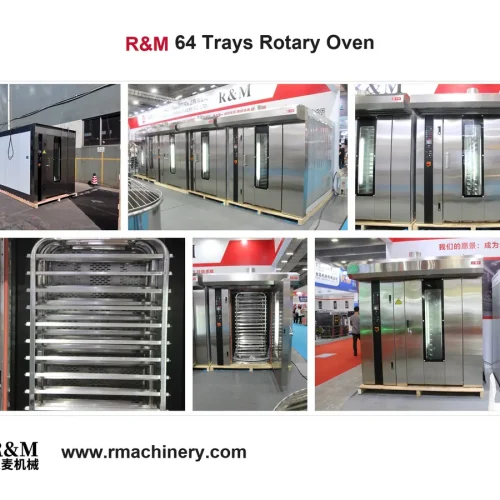

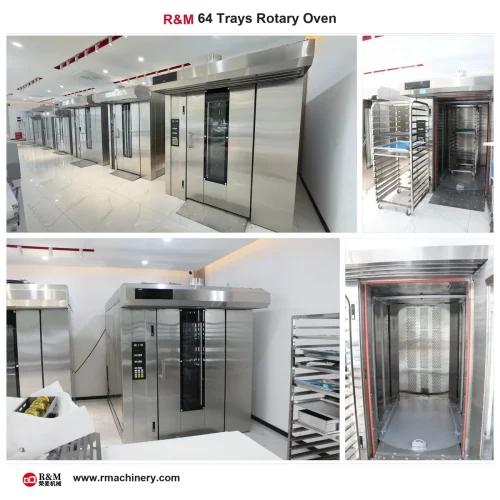

Structure, Insulation and Combustion System
| Component | Specification | Version |
|---|---|---|
| Base plate | 6.0 mm A3/Q235 | All |
| Rotating turntable | 6.0 mm | All |
| Wall insulation | 120 kg/m³ rock wool, 135 mm | All |
| Combustion chamber | 3.0 mm SUS 304 | Gas/diesel |
| Electric heating | 0.72 mm SUS 304 tubes | Electric |
| Exterior panels | 201 SS, 1.0–1.2 mm | All |

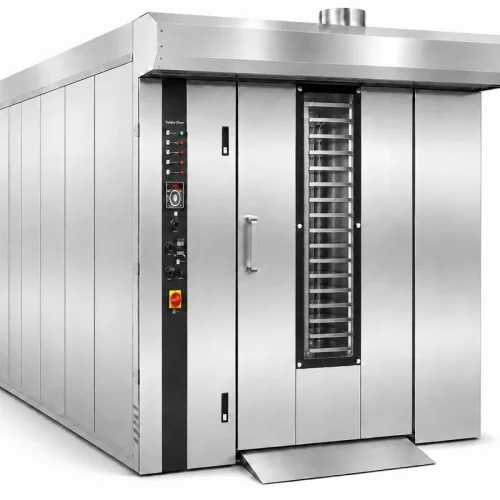

Site-Readiness Checklist Before Quotation
Before requesting a 64 tray industrial oven quotation, confirm:
- Floor load capacity (2500 kg + rack weight + dynamic load)
- Doorway and corridor dimensions for rigging and installation
- Electrical distribution: 90 kW supply or fuel-fired utility capacity
- Exhaust connection diameter, route and local ventilation code
- Water connection for steam option
- Fuel storage compliance (gas or diesel)
- Local equipment standards and certifications required
- Commissioning scope: factory, site, or joint
64 Tray Rotary Oven — Technical Specifications
The following specifications apply to the standard 64 tray rotary oven electric model (RMX-64D).
| Field | Value |
|---|---|
| Loading format | Roll-in trolley / large industrial rack oven |
| Nominal capacity | 64 trays |
| Energy options | Electric; gas; diesel; electric + gas; electric + diesel |
| Model codes | RMX-64D (electric); RMX-64M (gas); RMX-64C (diesel) |
| Hybrid model codes | Confirm in quotation |
| Overall dimensions | 3200 × 2000 × 2400 mm |
| Chamber dimensions | 1700 × 1700 × 1885 mm |
| Rated input (electric) | 90 kW |
| Auxiliary input (fuel) | 5.5 kW |
| Net weight | 2500 kg |
| Temperature range | Ambient to 300°C |
| Electrical supply | 380 V / 50 Hz |

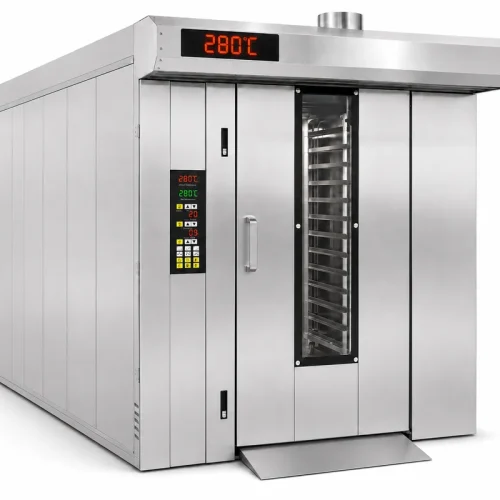

Compare 32 and 64 Tray Industrial Ovens
| 32 Tray | 64 Tray | |
|---|---|---|
| Chamber | 1350×1350×1885 mm | 1700×1700×1885 mm |
| Electric input | 50 kW | 90 kW |
| Net weight | 1600 kg | 2500 kg |
| Best fit | Wholesale bakery, high-shift | Bakery.html plant, central production |
→ View all rotary oven sizes
64 Tray Industrial Rotary Oven — FAQ
Is the 64 tray model a double rack oven?
The 64 tray rotary oven is designed for bakery plant environments. The 64-tray capacity suggests a two-rack arrangement, but current specifications do not confirm trolley count. Do not publish “double rack” claims until engineering confirms the number of simultaneous rack trolleys.
What power does the electric 64 tray oven require?
The RMX-64D is rated at 90 kW, 380 V / 50 Hz. Confirm local voltage, phase and distribution requirements with your electrical contractor.
How should we estimate production output?
Use your actual pieces per tray, bake time, loading time and shifts. A product test is the safest basis for an output claim.
What must be checked before installation?
Floor capacity, doorway and rigging route, service clearance, electrical or fuel supply, exhaust, ventilation, water, drainage and local approvals.
Do dual-energy versions switch automatically?
Do not assume automatic changeover. Confirm the control logic, allowed operating modes and both energy ratings in the project specification.
How do we request a 64 tray industrial oven quotation?
Provide products, rack/tray data, target output, operating hours, utilities, building drawings, destination standards and installation/commissioning scope.
Is this the largest rotary oven R&M makes?
The 64 tray model is our largest rotary oven and the largest big oven for baking in the R&M rack oven range. It is a large industrial oven designed for bakery plant and food factory environments. If your volume exceeds this capacity, contact us — we can discuss custom configurations or multiple-unit installations.
Designing a high-output bakery plant?
Send your target output, products, rack layout, utilities and building-access drawings. Contact R&M to configure your 64 tray rotary oven and we will prepare a site-ready technical proposal.
