MSS CabinetsNetwork Cabinet 19” Data Center Cabinet
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

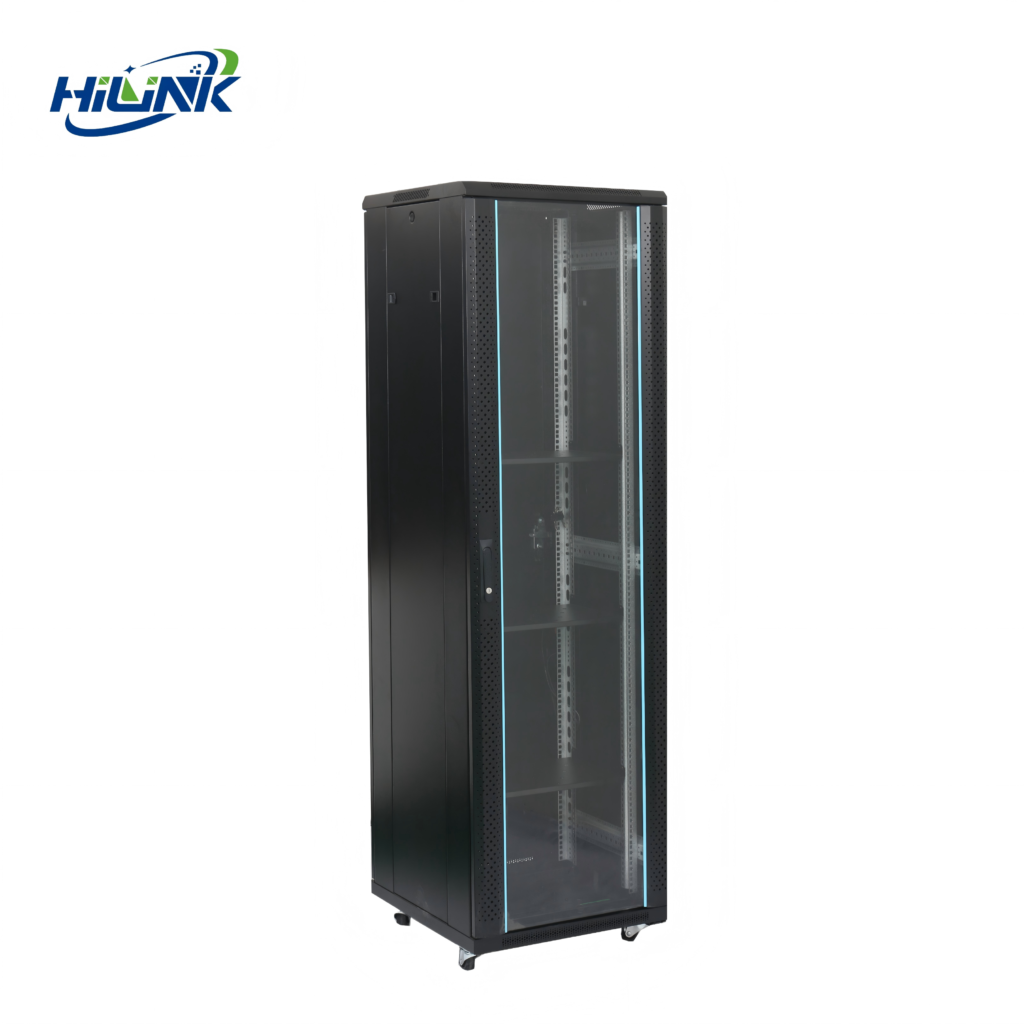

MSS Cabinets Network Cabinet 19” Data Center Cabinet
Short Description
♦ Front door：Toughened glass door with round hole vented arc door border
♦ Rear door：Plate steel real door/plate vented rear door (Optioal double-section rear door)
♦ Static loading capacity：1000（KG）
♦ Degree of Protection：IP20
♦ Package Type：Disassembly

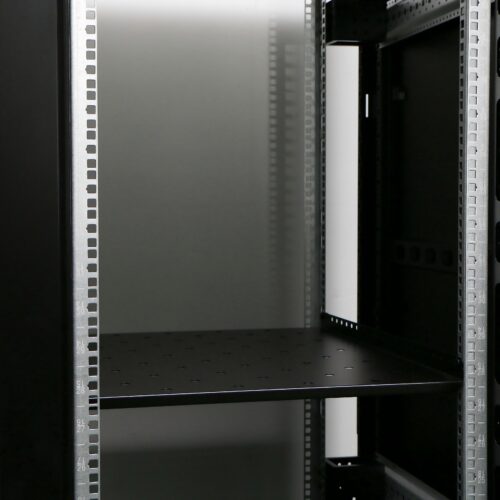

♦ Mounting profiles with laser U-mark

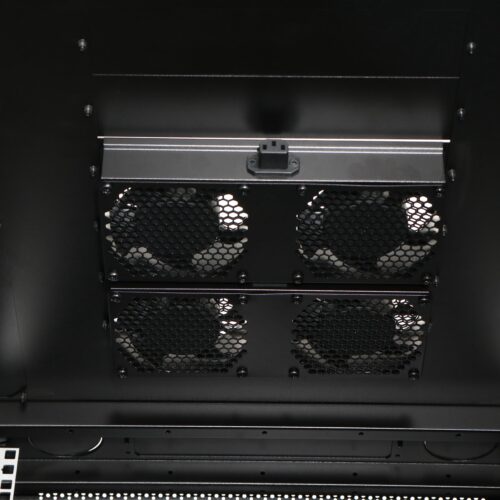

♦ Optional Fan unit easy installation

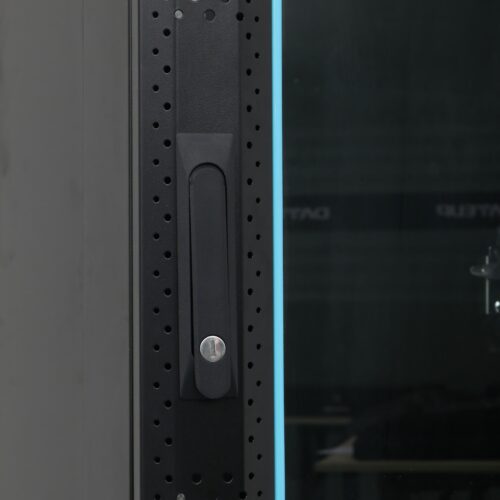

♦ DATEUP safety lock
♦ Optional Accessories, convenient disassembly easy maintenance
♦ Comply with UL ROHS certifications
Details
| Materials | SPCC cold rolled steel |
| Frame | Disassembly |
| Width(mm) | 600/800 |
| Depth(mm) | 600.800.900.1000.1100.1200 |
| Capacity(U) | 18U.22U.27U.32U.37U.42U.47U |
| Color | Black RAL9004SN(01) / Gray RAL7035SN(00) |
| Turning degree | ＞180° |
| Side panels | Removable side panels |
| Thickness（mm） | Mounting profile 2.0，Mounting angle 1.5，Others 1.2 |
| Surface finish | Degreasing, Silanization，Electrostatic spray |
Product specification
| Model No. | Description |
| MSS.■■■■.900■ | Toughened glass door with round hole vented arc door border blue ornament strip Plate steel rear door |
| MSS.■■■■.930■ | Toughened glass door with round hole vented arc door border blue ornament strip Double-section plate steel rear door |
| MSS.■■■■.980■ | Toughened glass door with round hole vented arc door border blue ornament strip Plate vented rear door |
| MSS.■■■■.960■ | Toughened glass door with round hole vented arc door border blue ornament strip Double-section plate vented rear door |
Remarks： First denotes width，second denotes depth，third & fourth denotes capacity;
9000 denotes Gray(RAL7035)，9001 denotes Black(RAL9004).
Payment:
For FCL(Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL(Less than Container Load), 100% payment before production.
Shipping:
For FCL(Full Container Load), FOB Ningbo, China.
For LCL(Less than Container Load), EXW.
WARRANTY
1 year limited warranty
FAQ：
What are the points to note when choosing a network cabinet?
When choosing a network cabinet, be sure to consider the network storage devices, monitors, and other standard equipment used to install the server. In addition, some non-standard equipment will have other requirements in the process of application. Therefore, the overall structure should have good strength and a good effect. The server cabinet should also be better shock and corrosion resistant, which can ensure the stability of the server cabinet to a large extent.
Its size should be based on the overall width and depth of the cabinet. We can further install a guide rail on the cabinet opening, which can really ensure that it is more flexible and convenient in the process of use.
Therefore, be sure to explain your specific needs to the manufacturer before purchasing, so that you can develop a cabinet that better meets the requirements. This will really bring more protection in the process of future application, and will have better results for overall use.
