Description

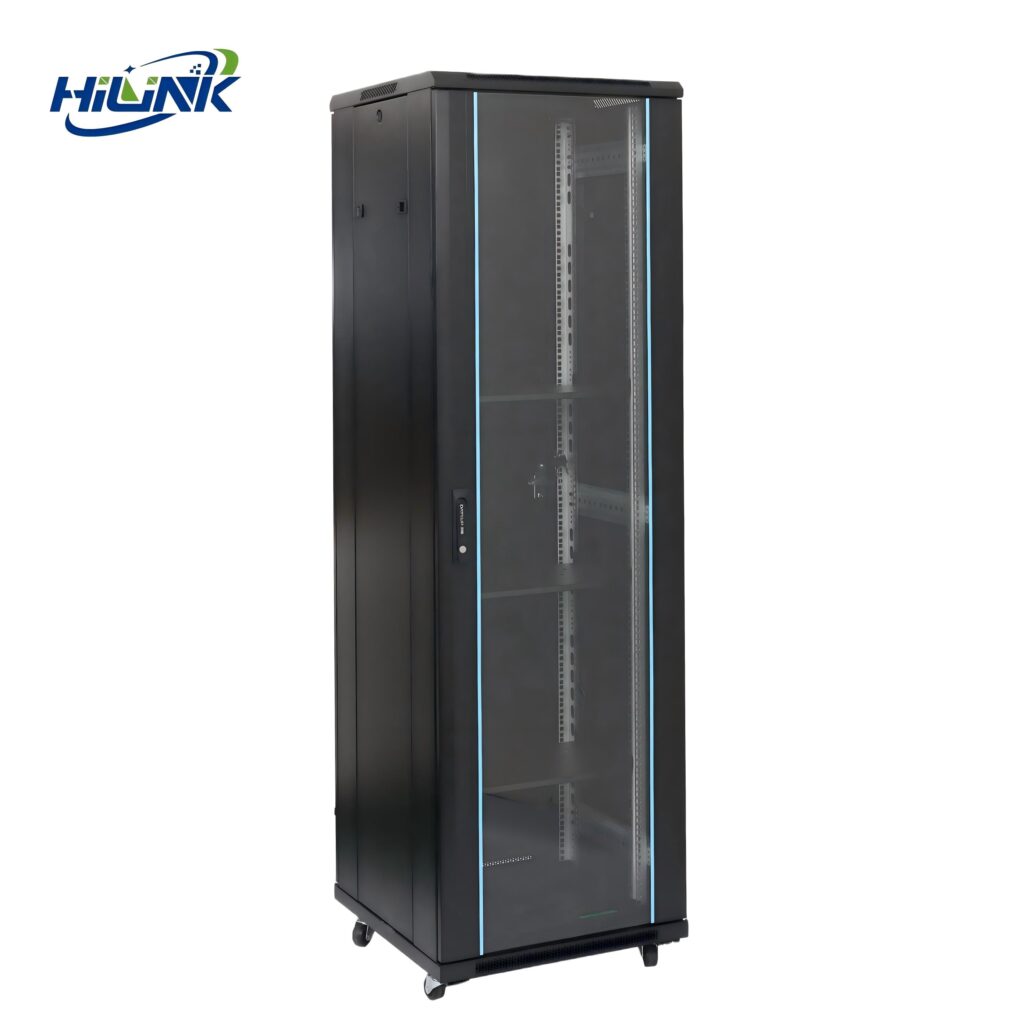

MS2 Cabinets Network Cabinet 19” Data Center Cabinet
Short Description
♦ Front door：5mm Toughened glass door
♦ Rear door：Plate steel door/ Vented plate door
♦ Static loading capacity：1000（KG）
♦ Degree of Protection：IP20
♦ Package Type：Disassembly

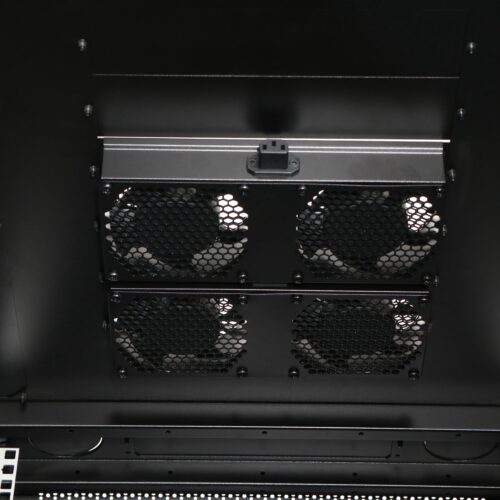

♦ Optional Fan unit easy installation

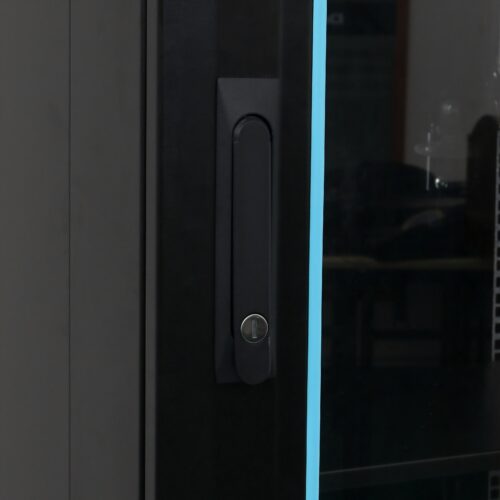

♦ DATEUP safety lock

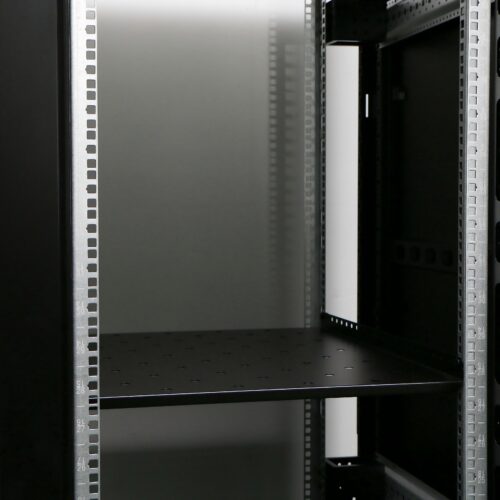

♦ Mounting profiles with laser U-mark
♦ Comply with UL ROHS certifications
Details
| Materials | SPCC cold rolled steel |
| Frame | Disassembly |
| Width(mm) | 600/800 |
| Depth(mm) | 600.800.900.1000.1100.1200 |
| Capacity(U) | 18U.22U.27U.32U.37U.42U.47U |
| Color | Black RAL9004SN(01) / Gray RAL7035SN(00) |
| Turning degree | ＞180° |
| Side panels | Removable side panels |
| Thickness（mm） | Mounting profile 2.0，Mounting angle 1.5，Others 1.2 |
| Surface finish | Degreasing, Silanization，Electrostatic spray |
Product specification
| Model No. | Description |
| MS2.■■■■.900■ | Toughened glass door blue ornament strip Plate steel rear door |
| MS2.■■■■.930■ | Toughened glass door blue ornament strip Double-section plate steel rear door |
| MS2.■■■■.980■ | Toughened glass door blue ornament strip Plate vented rear door |
| MS2.■■■■.960■ | Toughened glass door blue ornament strip Double-section plate vented rear door |
Remarks：First denotes width，second denotes depth，third & fourth denotes capacity;
9000 denotes Gray(RAL7035)，9001 denotes Black(RAL9004).
Payment:
For FCL(Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL(Less than Container Load), 100% payment before production.
Shipping:
For FCL(Full Container Load), FOB Ningbo, China.
For LCL(Less than Container Load), EXW.
WARRANTY
1 year limited warranty
FAQ：
Why choose MS2 Series cabinets?
(1)High-end and superior appearance design for the network cabinet with exquisite technology, precision size, standard specifications, preferred choices for classic wiring engineering.
(2)1.2 thickness high-quality cold-rolled steel plate is used to prevent rust.
Four doors can be removed, which is convenient for equipment installation and maintenance.
(3)Multiple cable channels are preset at the top and bottom for easy installation and maintenance.
(4)Internationally popular transparent glass front door with door strips.
