MSD Cabinets Network Cabinet 19” Data Center Cabinet
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

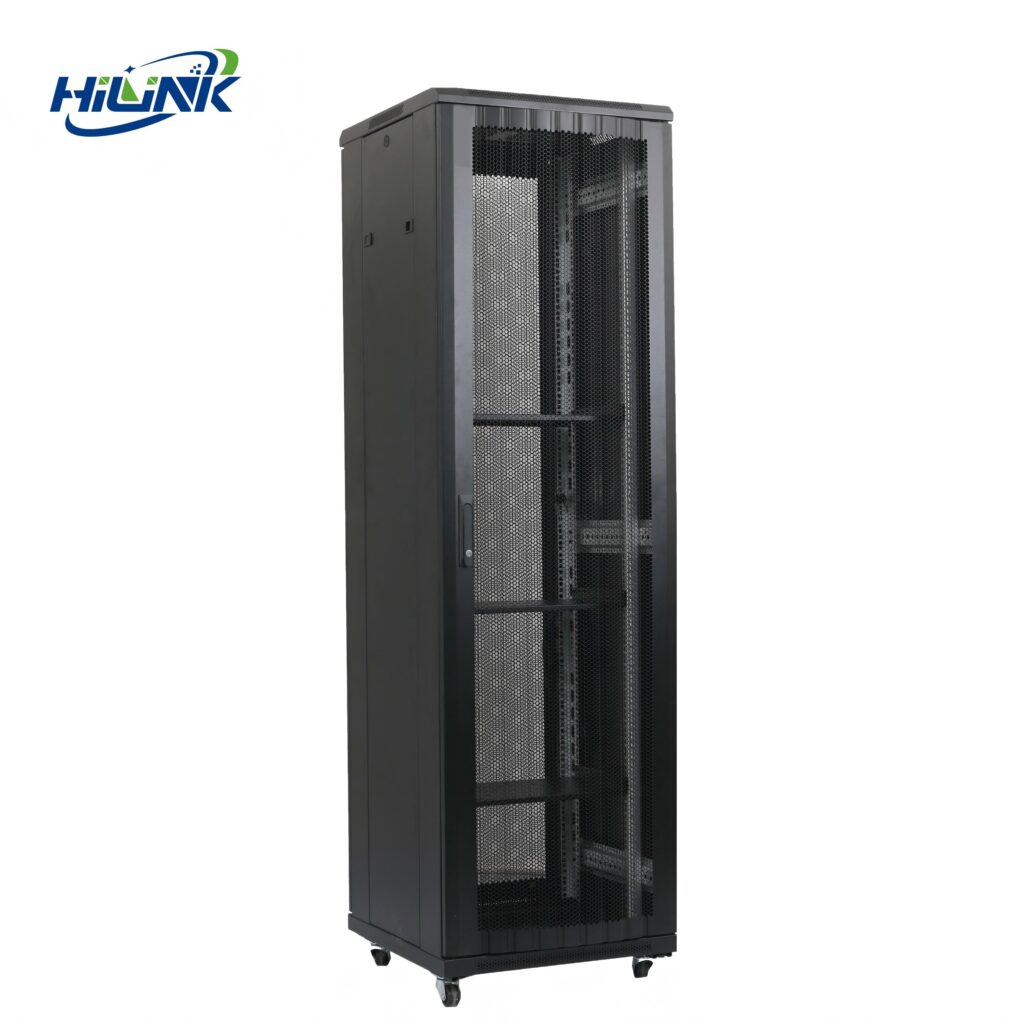

MSD Cabinets Network Cabinet 19” Data Center Cabinet
Short Description
♦Front door：Hexagonal reticular high density vented are door
♦Rear door：Hexagonal reticular high density vented plate door (Double-section optional)
♦Static loading capacity：1000（KG）
♦Degree of Protection：IP20
♦Package Type：Disassembly
♦ High ventilation rate:＞75%

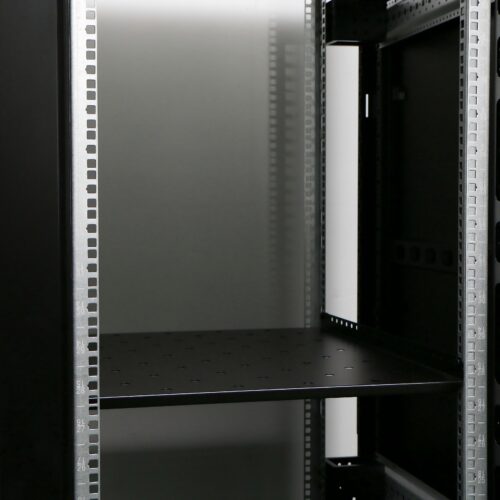

♦ Mounting profiles with laser U-mark

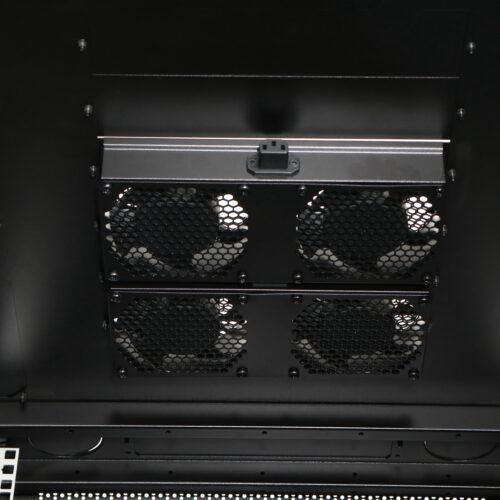

♦ Optional Fan unit easy installation

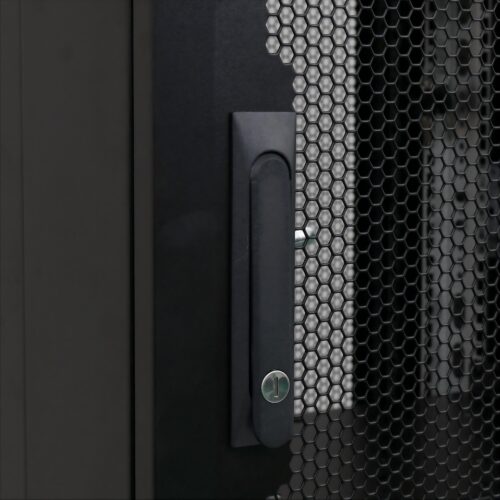

♦ DATEUP safety lock
♦ Comply with UL ROHS certifications
Details
| Brand name | Dateup |
| Materials | SPCC cold rolled steel |
| Frame | Disassembly |
| Width(mm) | 600/800 |
| Depth(mm) | 600.800.900.1000.1100.1200 |
| Capacity(U) | 18U.22U.27U.32U.37U.42U.47U |
| Color | Black RAL9004SN(01) / Gray RAL7035SN(00) |
| Side panels | Removable side panels |
| Thickness（mm） | Mounting profile 2.0，Mounting angle 1.5，Others 1.2 |
| Surface finish | Degreasing, Silanization，Electrostatic spray |
Product specification
| Model No. | Description |
| MSD.■■■■.9800 | Hexagonal reticular high density vented are frond door，Hexagonal reticular high density vented plate rear door，Gray |
| MSD.■■■■.9801 | Hexagonal reticular high density vented are frond door，Hexagonal reticular high density vented plate rear door，Black |
| MSD.■■■■.9600 | Hexagonal reticular high density vented plate frond door， Double-section Hexagonal reticular high density vented plate rear door，Gray |
| MSD.■■■■.9601 | Hexagonal reticular high density vented plate frond door， Double-section Hexagonal reticular high density vented plate rear door，Black |
Remarks： First denotes width，second denotes depth，third & fourth denotes capacity.
Payment:
For FCL(Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL(Less than Container Load), 100% payment before production.
Shipping:
For FCL(Full Container Load), FOB Ningbo, China.
For LCL(Less than Container Load), EXW.
WARRANTY
1 year limited warranty
FAQ：
What to consider when choosing a network cabinet?
- Dimensions: The dimensions of the server cabinet directly affect the placement of server devices. Generally speaking, the larger the size of the server cabinet, the more server devices can be accommodated.
- Power supply and heat dissipation: The server cabinet must provide stable power supply and good heat dissipation to ensure the normal running of servers. Therefore, pay attention to the power supply and heat dissipation design when selecting a server cabinet.
- Scalability: Server cabinets need to have certain extensibility to facilitate the addition and upgrade of server equipment in the future.
- Security: Server cabinet must provide security to ensure the security of server devices and data.
- Brand and quality: When choosing a server cabinet, you need to choose well-known brands and products with reliable quality. Well-known server cabinets are of better quality and reliability to ensure the normal running of servers.
