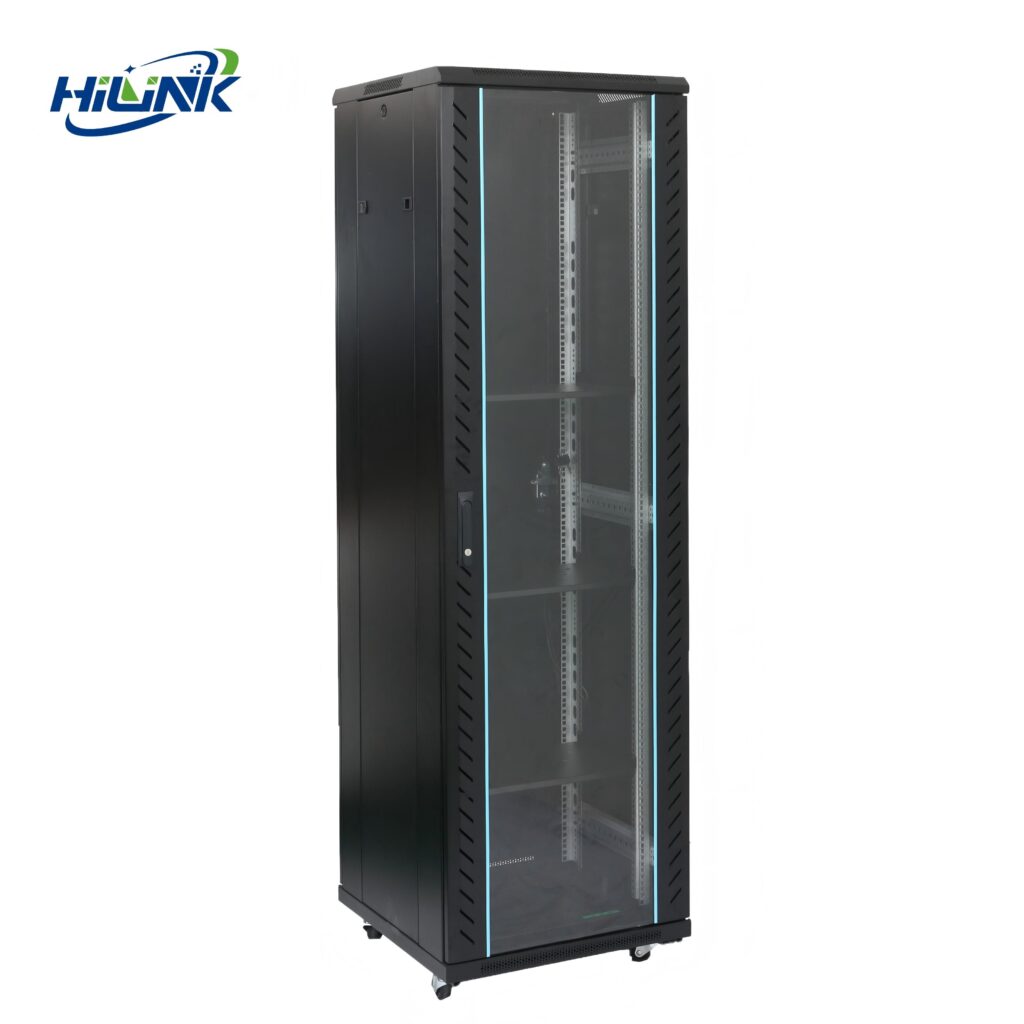

MS4 Cabinets Network Cabinet 19” Data Center Cabinet
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
MS4 Cabinets Network Cabinet 19” Data Center Cabinet
Short Description
♦ Front door：Toughened glass door with slanted slot door border
♦ Rear door：Plate steel real door/plate vented rear door（Optioal double-section rear door）
♦ Static loading capacity：1000（KG)
♦ Degree of Protection：IP20
♦ Package Type：Disassembly
♦ Mounting profiles with laser U-mark
♦ Optional Accessories easy installation

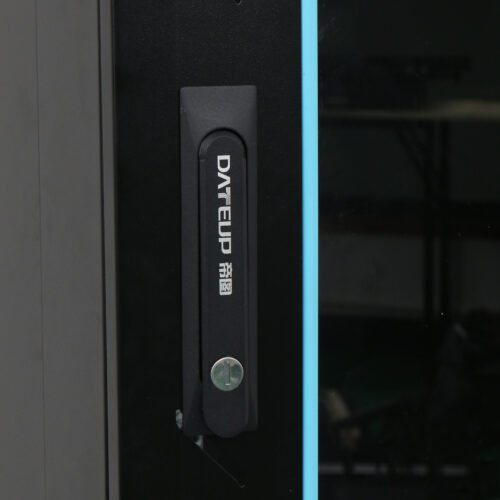

♦ Removable doors with DATEUP safety lock(optional)
♦ Comply with UL ROHS certifications
Details
| Materials | SPCC cold rolled steel |
| Frame | Disassembly |
| Width(mm) | 600/800 |
| Depth(mm) | 600.800.900.1000.1100.1200 |
| Capacity(U) | 18U.22U.27U.32U.37U.42U.47U |
| Color | Black RAL9004SN(01) / Gray RAL7035SN(00) |
| Turning degree | ＞180° |
| Side panels | Removable side panels |
| Thickness（mm） | Mounting profile 2.0，Mounting angle 1.5，Others 1.2 |
| Surface finish | Degreasing, Silanization，Electrostatic spray |
Product specification
| Model No. | Description |
| MS4.■■■■.900■ | Toughened glass door with slanted slot door border blue ornament strip Plate steel rear door |
| MS4.■■■■.930■ | Toughened glass door with slanted slot door border blue ornament strip Double-section plate steel rear door |
| MS4.■■■■.980■ | Toughened glass door with slanted slot door border blue ornament strip Plate vented rear door |
| MS4.■■■■.960■ | Toughened glass door with slanted slot door border blue ornament strip Double-section plate vented rear door |
Remarks： First denotes width，second denotes depth，third & fourth denotes capacity;
9000 denotes Gray(RAL7035)，9001 denotes Black(RAL9004).
Payment:
For FCL(Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL(Less than Container Load), 100% payment before production.
Shipping:
For FCL(Full Container Load), FOB Ningbo, China.
For LCL(Less than Container Load), EXW.
WARRANTY
1 year limited warranty
FAQ：
What are the technical specifications of MS4 network cabinet?
- The cabinet production standard is in accordance with the ISO quality management system standard, compatible with 19″ international standard and other standards.
- Galvanized fastener surface,mounting profile with 2.0mm thickness; professional cabinet bayonet screws.
- Straight bending lines of the cabinet, flat door panels, clean corners, no blanking burrs or welding slag, parts withoutabnormal deformation.
- High quality cold rolled SPCC steel sheet, degreasingsurface, silane, electrostatic spray treatment.
- No obvious scratches, bruises, pinholes, particles, adhesion stains on the external surface.
Uniform coating and consistent grain. No crack, foaming, peeling, peeling.
