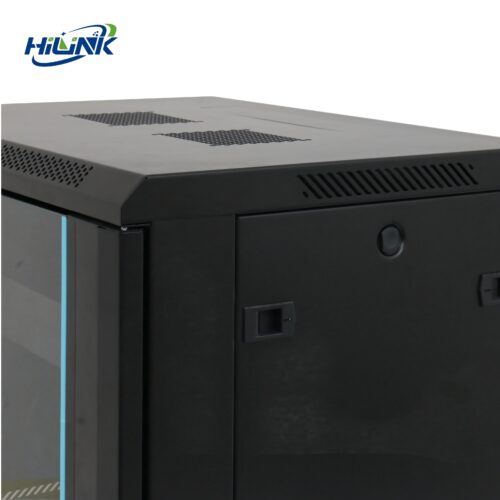

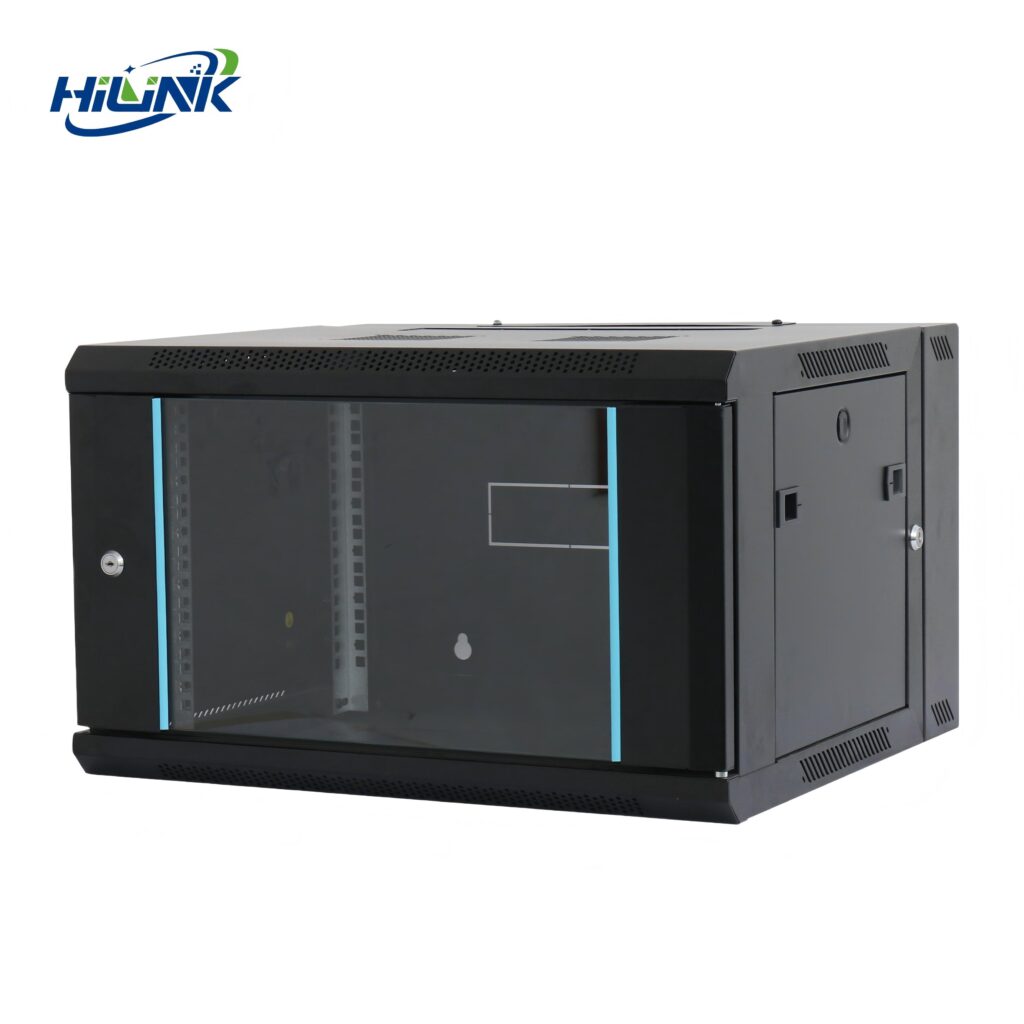

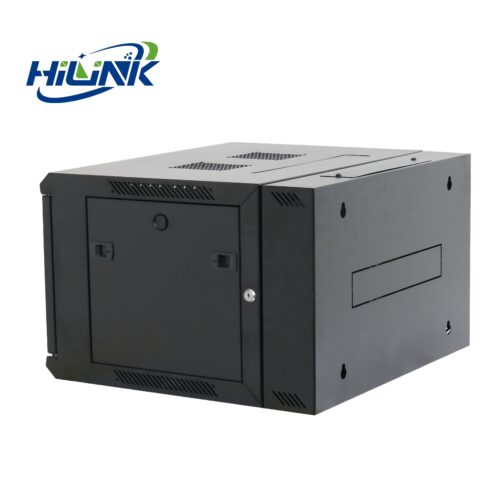

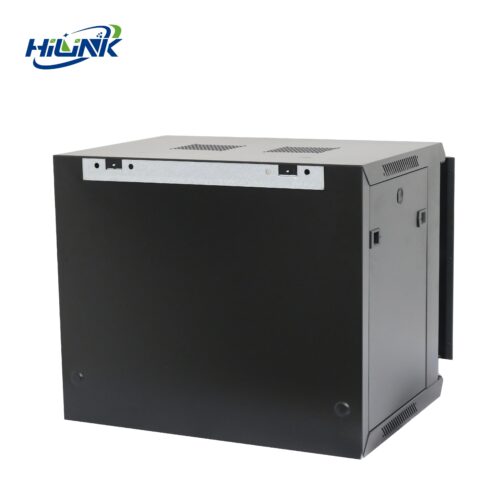

MZH Wall-mounted cabinets
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
MZH Wall-mounted cabinets
Short Description
♦ Static loading capacity: 70 (KG)
♦ Package Type：Assembly
♦ Structure: Welded frame
♦ Top and bottom cover with knock out holes
♦ Removable side panels;
Side door locks optional
♦ Double section welded frame structure;
Easy operation and maintaining at the back.
♦ Turning angle of front door: above 180 degrees;
Turning angle of rear door: above 90 degrees.
♦ Comply with UL ROHS certifications
Details：
| Materials | SPCC cold rolled steel |
| Model Series | MZH Series Wall Mounted Cabinet |
| Width(mm) | 600(6) |
| Depth(mm) | 450(4).500(A).550(5).600(6) |
| Capacity(U) | 6U.9U.12U.15U.18U.22U.27U |
| Color | Black RAL9004SN(01) / Gray RAL7035SN(00) |
| Thickness of Steel（mm） | Mounting profile 1.5mm others 1.0mm |
| Surface finish | Degreasing， Silanization， Electrostatic spray |
| Lock | Small round lock |
Product Specification：
| Model No. | Description |
| MZH.6■■■.90■■ | Toughened glass front door door border without holes small round lock |
| MZH.6■■■.91■■ | Toughened glass front door with round hole vented arc door border small round lock |
| MZH.6■■■.92■■ | Plate steel door small round lock |
| MZH.6■■■.93■■ | Hexagonal reticular high density vented plate door small round lock |
| MZH.6■■■.94■■ | Toughened glass front door with slanted slot door border small round lock |
Remarks: First denotes depth second & third denotes capacity。When fourth & fifth is“00” denotes Gray color(RAL7035) “01”denotes Black color(RL9004).
Payment:
For FCL(Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL(Less than Container Load), 100% payment before production.
Shipping:
For FCL(Full Container Load), FOB Ningbo, China.
For LCL(Less than Container Load), EXW.
WARRANTY
1 year limited warranty
FAQ：
What are the functions of the network cabinet?
In addition to reducing the device footprint, the network cabinet also has the following functions:
- Greatly improve the overall aesthetic degree of the machine room.
For example, the 19-inch design can accommodate a large number of network devices, simplifying the layout of the equipment room and improving the overall appearance of the equipment room.
- Effectively ensure the safety and stability of the equipment.
The cooling fan of the network cabinet can send the heat emitted by the equipment out of the cabinet to ensure the safe and stable operation of the equipment. In addition, network cabinets also have the effect of enhancing electromagnetic shielding, reducing working noise, and even filtering air.
