Description
Model No.:FTB-16K-1
1 Overview

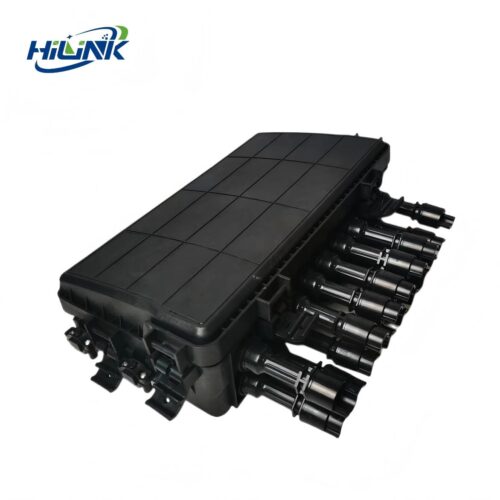

YIPU Model No. FTB-16K-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Technical Index
| Model No. | FTB-16K-1 | Color | Black |
| Capacity | 16cores | Protection Level | IP65 |
| Material | PP+Glass Fibe | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 359×278×104 | Splitter | Can be with 2×1:8 Tube Type Splitter |

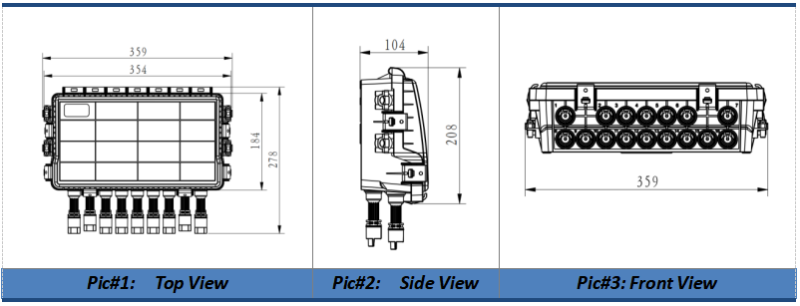

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;
3.2 It can inlet and outlet 4pcs Φ8mm ~ Φ11mm cable;
3.3 It can realize cable cutting, diverging and direct melting, etc;

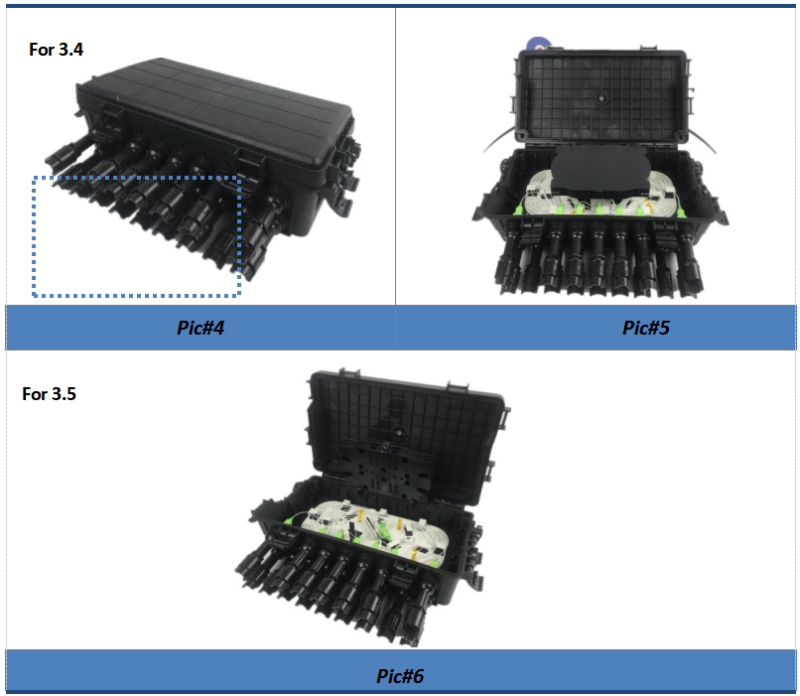

3.4 It can install 8pcs of SC Tyco adapter(Pic#4 for details);
3.5 The drop leaf can be installed 1 pcs of 1*8 Tube Type Splitter ( Pic#6 for details);

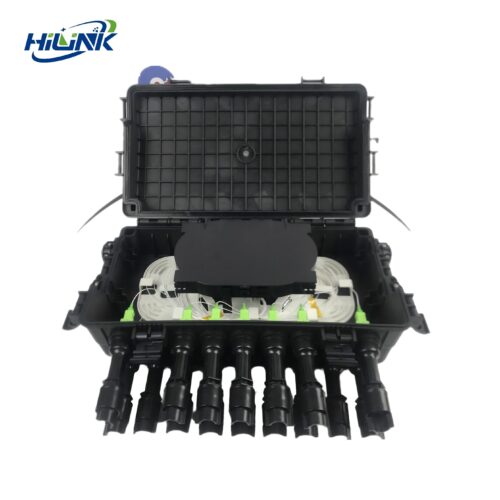

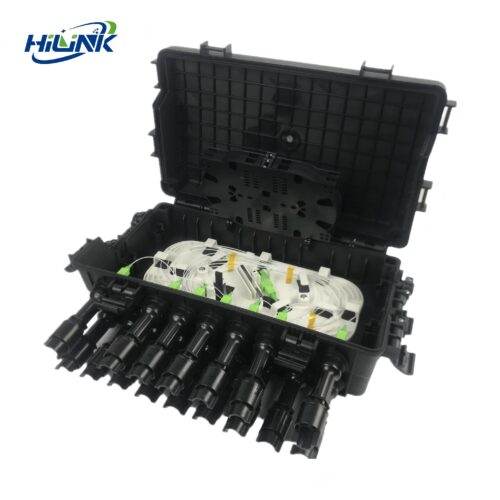

Pictures for reference:
4 Package Information
4.1 Plastic bag size:500*410mm
4.2 Inner box with single corrugated size: 385×290×125mm
4.3 Carton with double corrugated size: 655×400×600（10PCS/BOX）
4.4 Weight per carton：17.5 KG
