HL-FTB-24E
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Model No.:FTB–24E-1
1 Overview
YIPU Model No. FTB-24E-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 24 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Technical Index
| Model No. | FTB-24E-1 | Color | Black, Grey White.. |
| Capacity | 8cores & 16cores & 24cores & 32cores | Protection Level | IP55 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 346*210*88 | Splitter | Can be with tube splitter |

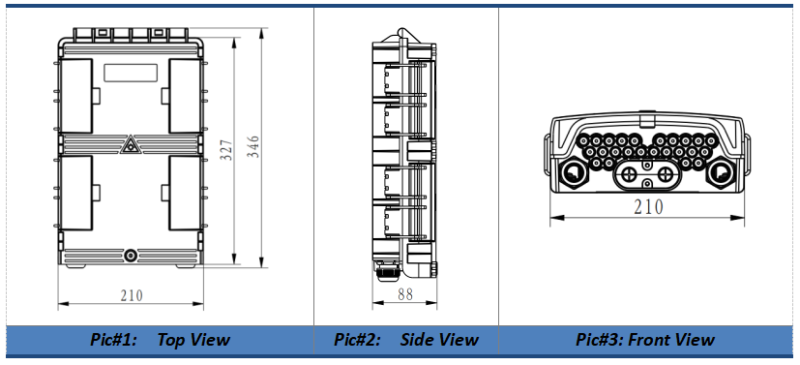

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;

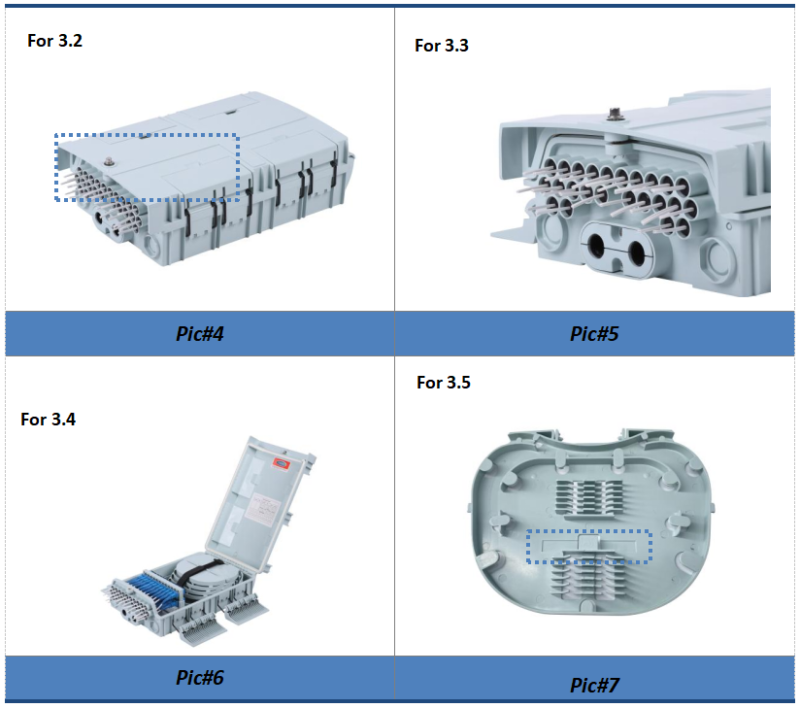

3.2 With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);
3.3 With the independent rubber sealing plug for drop cable, better waterproof performance ( Pic#5 for details);
3.4 With double-page design, the box can be installed and maintained easily,
the fusion and termination are completely separated ( Pic#6 for details);
3.5 The drop leaf can be installed 4 pcs of 1*8 tube splitter ( Pic#7 for details);
Pictures for reference:
4 Package Information
4.1 Plastic bag size: 500*410mm
4.2 Inner box with single corrugated size: 350*215*100mm
4.3 Carton with double corrugated size: 450*370*520mm(10PCS/Box)
4.4 Weight per carton：19 KG
