HL-FTB-08C
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Model No.:FTB-08C-1
1 Overview
YIPU Model No. FTB-08C-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Technical Index
| Model No. | FTB-08C-1 | Color | Black, Grey White.. |
| Capacity | 8cores | Protection Level | IP55 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 232*203*53 | Splitter | Can be with 1×1:8 Tube Type Splitter |

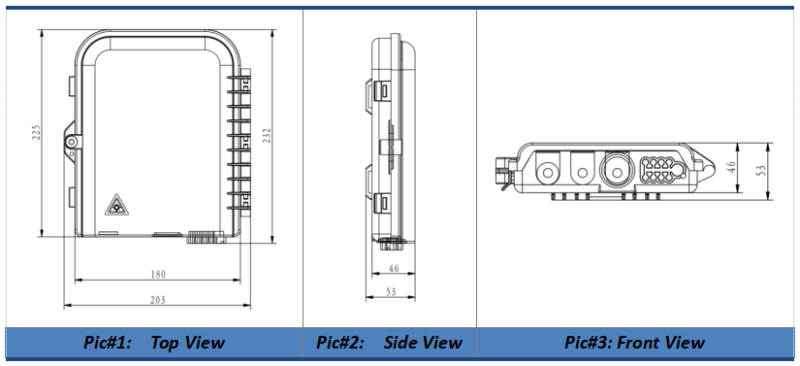

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;

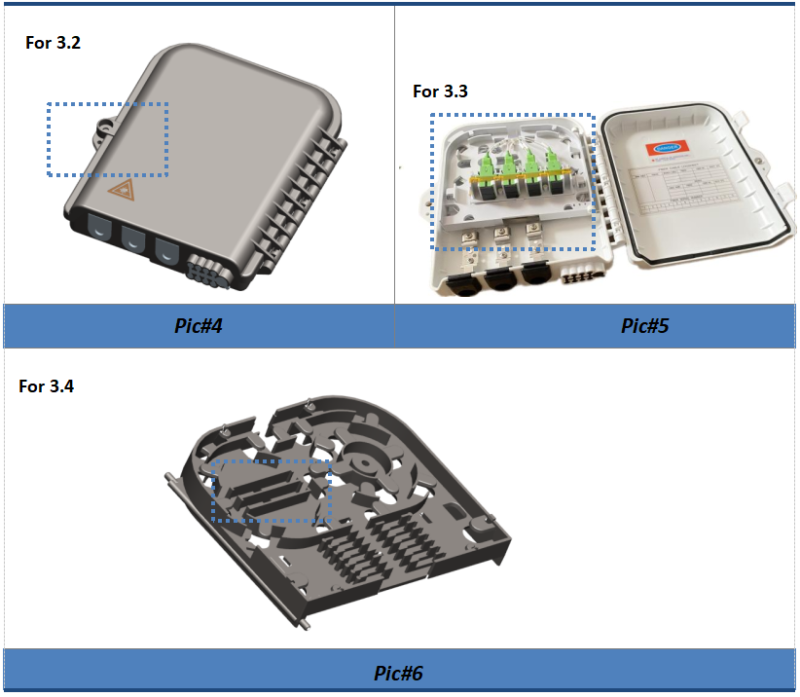

3.2 With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);
3.3 With double-page design, the box can be installed and maintained easily,
the fusion and termination are completely separated; ( Pic#5 forS details);
3.4 The drop leaf can be installed 1 pcs of 1*8 Tube Type Splitter ( Pic#6 for details);
Pictures for reference:
4 Package Information
4.1 Plastic bag size:320*270mm
4.2 Inner box with single corrugated size: 250*210*65mm
4.3 Carton with double corrugated size: 525*445*370mm(20PCS/Box)
4.4 Weight per carton：15KG
Downloads
| File | Download |
|---|---|
| Datasheet-of-FTB-08C-1.pdf | Download |
