Description

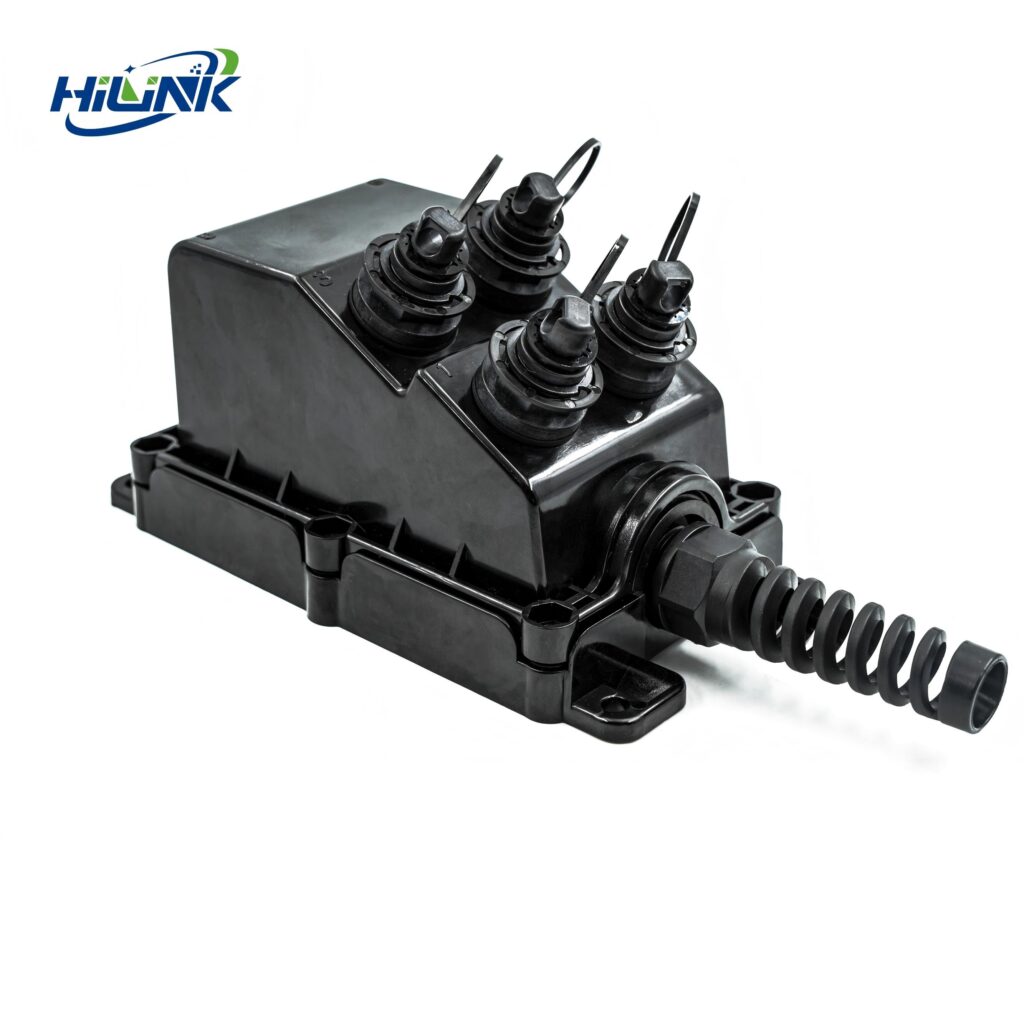

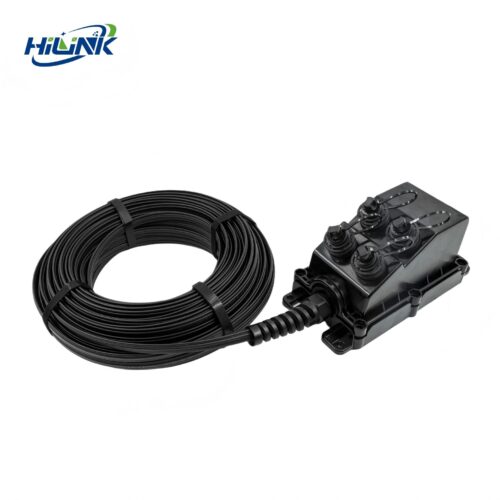

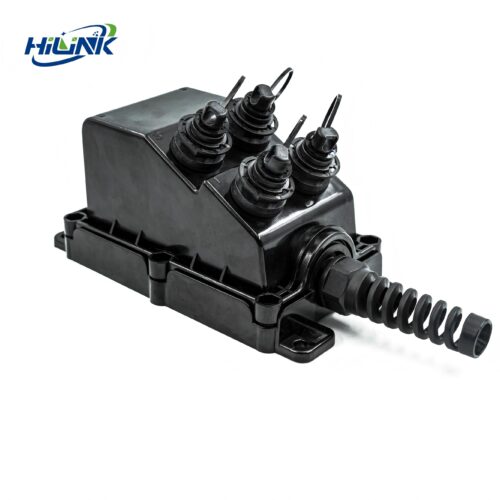

Model No.:FTB–04C–2
1 Overview
YIPU Model No. FTB-04C-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 4 users requirements. It can help splicing, splitting, s torage and management with suitable space.
2 Technical Index
| Model No. | FTB-04C-2 | Color | Black |
| Capacity | 4 cores | Protection Level | IP55 |
| Material | PC,PC+ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 210*112*92 | Splitter | Can be with 1×1:4 tube splitter |

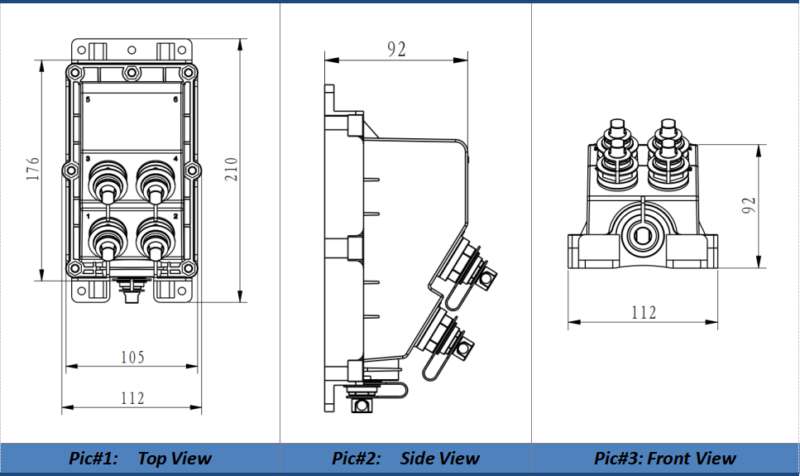

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;

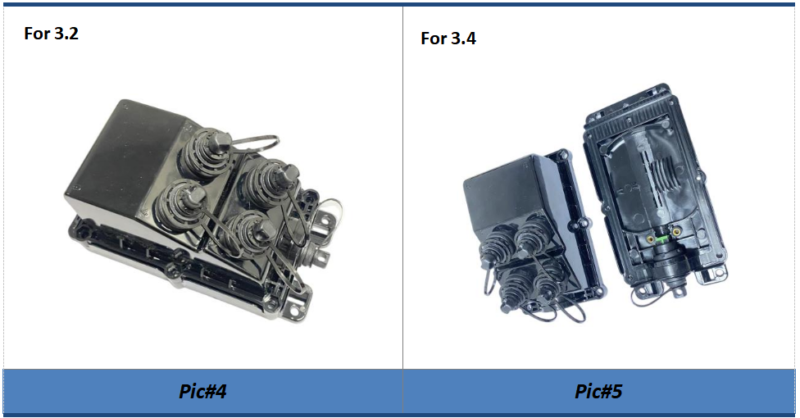

3.2 It is fastened and sealed with bolts, with good waterproof performance, and is suitable for indoor and outdoor natural environments (Pic#4 for details);
3.3 With CORNING water-proof adapter, the box can be operated more conveniently ( Pic#4 for details);
3.4 The drop leaf can be installed 1 pcs of 1*4 tube splitter ( Pic#5 for details);
Pictures for reference:
4 Package Information
4.1 Plastic bag size: 300*350mm
4.2 Inner box with single corrugated size: 215*115*120mm
4.3 Carton with double corrugated size: 595*235*500mm(20PCS/Box)
4.4 Weight per carton：12 KG
