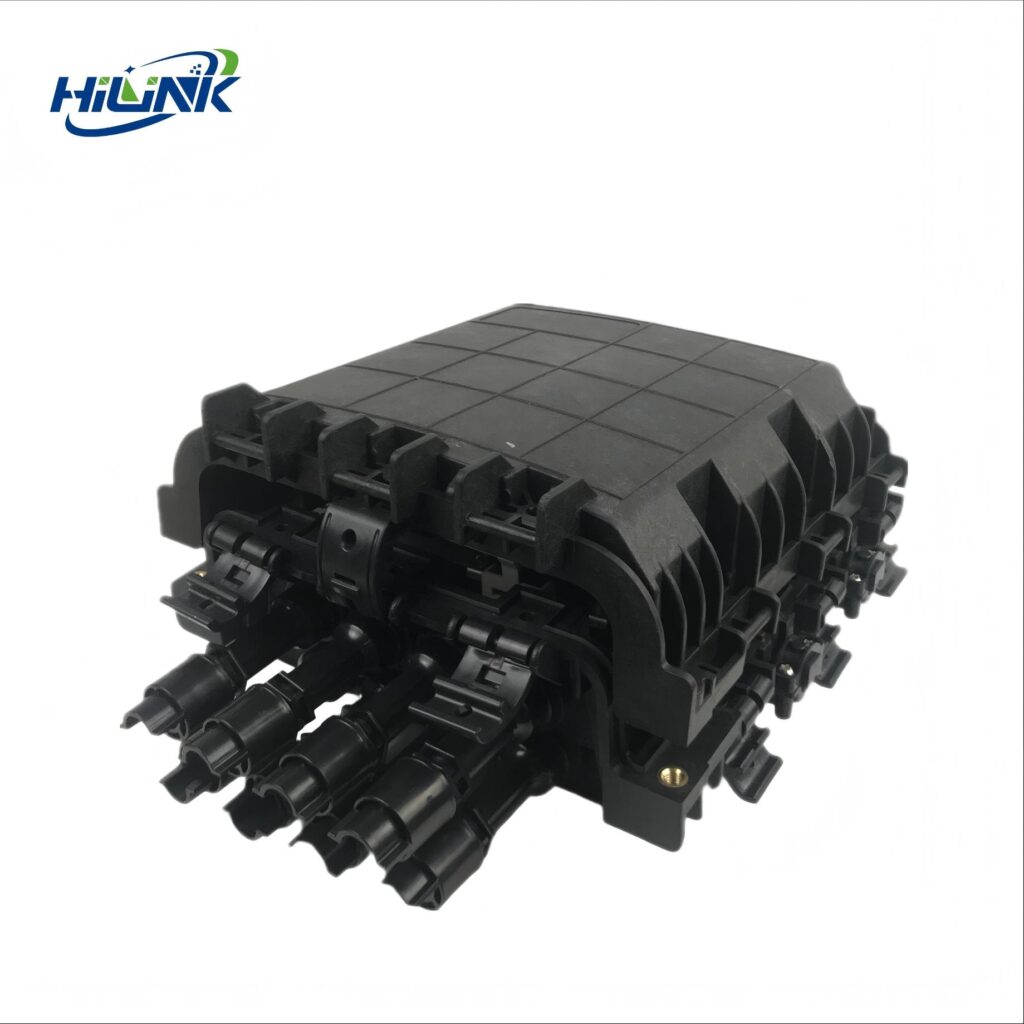

HL-FTB-08J-1
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Model No.:FTB-08J-1
1 Overview
YIPU Model No. FTB-08J-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Technical Index
| Model No. | FTB-08J-1 | Color | Black |
| Capacity | 8cores | Protection Level | IP55 |
| Material | PP+Glass Fibe | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 328*247*124 | Splitter | Can be with 1×1:8 Tube Type Splitter |

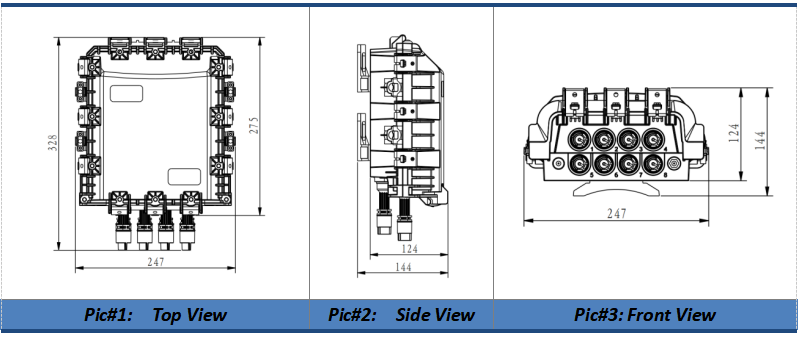

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;
3.2 It can enter and exit 4 optical cables of Φ8mm～Φ11mm;
3.3 It can realize the connection, distribution and direct melting of the optical cable;

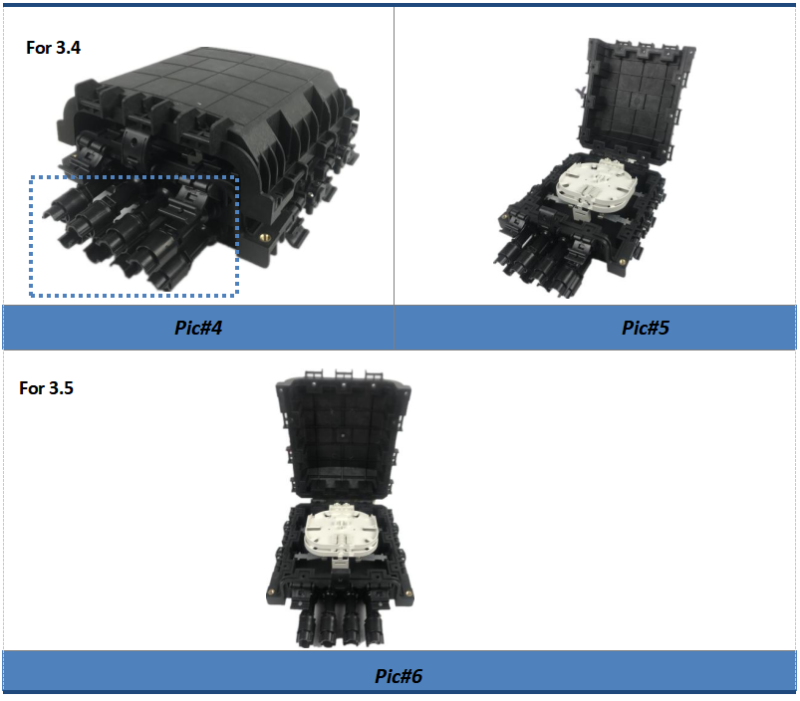

3.4 It can install 8pcs of SC Tyco adapter(Pic#4 for details);
3.5 The drop leaf can be installed 1 pcs of 1*8 Tube Type Splitter ( Pic#6 for details);

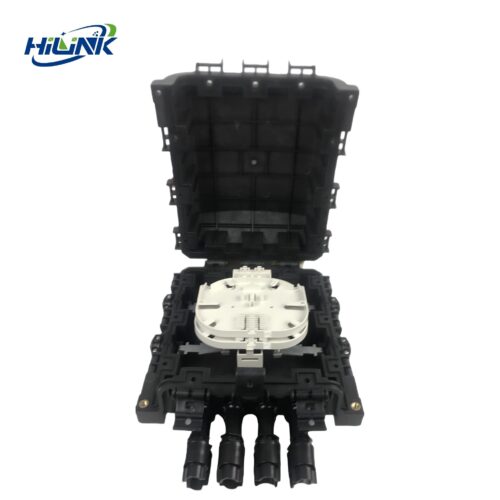

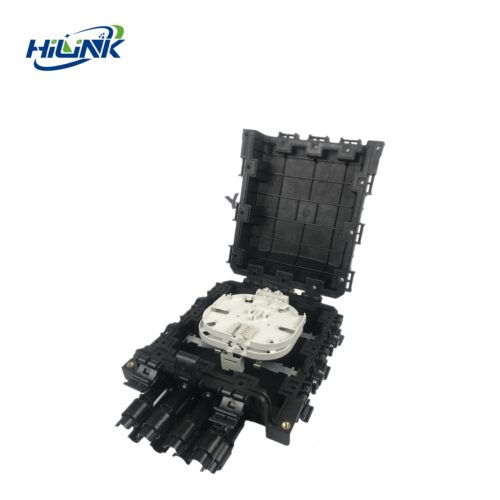

Pictures for reference:
4 Package Information
4.1 Plastic bag size:500*410mm
4.2 Inner box with single corrugated size: 375×250×140mm
4.3 Carton with double corrugated size: 730×390×520（10PCS/BOX）
4.4 Weight per carton：17 KG
Downloads
| File | Download |
|---|---|
| Datasheet-of-FTB-08J-1.pdf | Download |
