Full-Automatic Rotary Pharmaceutical Bottle Washing Machine for Sterile Filling Production Lines

Core Application Scope of Our Bottle Washing Equipment

Our industrial bottle washing machines are specially matched with our complete pharmaceutical filling lines, perfectly supporting 11 categories of liquid medicine packaging containers:

1. Sterile glass ampoules for injection preparations
2. Multi-spec clear & amber pharmaceutical vials
3. Small eye drop plastic & glass bottles
4. Nasal spray pump bottles
5. Pharmaceutical aluminium cartridge tubes
6. Glycerine enema soft tubes
7. Oral liquid plastic bottles
8. Medical oil packaging containers
9. Inhalation anaesthetic aerosol cans
10. External topical liquid bottles
11. Laboratory diagnostic reagent vials

This rotary bottle washer serves as the front-end core station of the whole aseptic filling workflow, thoroughly removing dust, glass debris, grease and residual impurities inside and outside containers to meet Class A cleanroom production standards.

Advanced Rotary Washing Structure & Working Principle

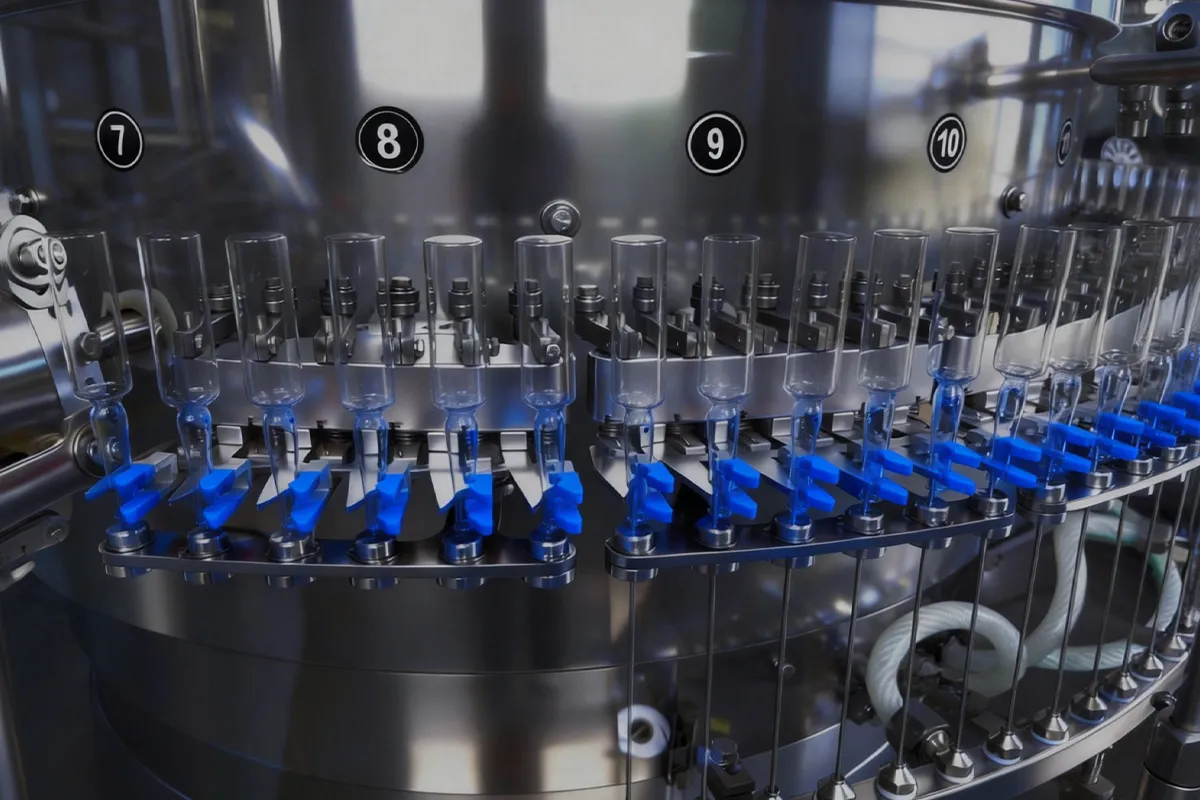

The picture shows our mainstream rotary bottle washing machine with multi-station circulating cleaning design, equipped with numbered independent washing stations (7–10 as displayed on the equipment).

1. Automatic Bottle Feeding & Positioning: Empty bottles are automatically inverted and fixed by blue plastic clamps to ensure the bottle mouth faces downwards, avoiding secondary pollution from residual water.
2. Multi-stage Circulating Washing Process:

• Primary pure water high-pressure flushing to wash away large particulate contaminants
• Ultrasonic auxiliary cleaning to strip stubborn oil stains and glass powder
• Secondary WFI water reverse flushing for deep inner-wall purification
• Compressed air blow-drying to drain residual liquid inside bottles

3. Stainless Steel Rotary Transmission System: The whole frame and contact parts adopt 316L sanitary stainless steel, corrosion-resistant and easy to disassemble for daily sanitization.
4. Independent Station Control: Each numbered washing unit operates independently, adjustable flushing pressure and flow according to bottle capacity to avoid liquid overflow or incomplete cleaning.

Key Advantages That Comply With GMP & FDA Pharmaceutical Standards

1. Full closed cleanroom design, no cross-contamination between cleaned and uncleaned bottles, matching laminar flow sterile environment requirements.
2. High washing efficiency, supporting continuous online connection with depyrogenation tunnel sterilizer, filling machine, capping machine and Labelling machine to form an integrated turnkey production line.
3. Intelligent PLC automatic control, touch screen parameter setting, automatic alarm for abnormal water pressure, bottle blockage and air supply failure.
4. Energy-saving water circulation filtration system, with multi-layer filter elements to recycle pure washing water, effectively reducing production water consumption.
5. Wide adaptability, quick mould switching to adapt containers from 1ml micro vials to 500ml oral liquid bottles without complicated part replacement.
6. Low maintenance cost, wear-resistant clamps and no-leakage flushing nozzles, stable long-term continuous operation for mass pharmaceutical factory production.

Matching Turnkey Production Line Solutions

As a professional pharmaceutical machinery manufacturer with 18 years of R&D experience, Reliance Machinery does not supply single washing machines separately. We provide integrated solutions combining bottle washing, depyrogenation sterilization, filling, stoppering, capping and Labelling.

Whether you need a small laboratory pilot filling line or a large-scale mass production workshop turnkey project, our technical team can customize the layout, station quantity and processing speed of the bottle washing machine according to your daily output, container type and cleanroom space size.

Full Lifecycle Technical Support Service

• Pre-sales: Free production layout design, equipment parameter matching and GMP compliance scheme guidance
• In-production: Factory test run (FAT), real-time video inspection before delivery
• After-sales: Oversea engineer on-site installation, equipment commissioning, operator training and 24-hour online technical support
• Long-term: Supply of original spare parts, regular equipment maintenance reminder and upgrade scheme service

Our rotary pharmaceutical bottle washing machine is the essential front-end supporting equipment for all our liquid pharmaceutical filling lines. Strict cleaning performance, sanitary stainless steel construction and full automatic intelligent control help global pharmaceutical manufacturers simplify sterile production procedures, pass factory GMP audits and improve finished drug qualification rate. If you are looking for a reliable bottle washing machine matched with your filling line, contact us to customize your exclusive cleaning solution.
