Pad Mounted Transformer
Our pad mounted transformers are engineered for underground distribution systems, delivering reliable voltage transformation, high efficiency, and long-term performance for residential, commercial, industrial, and utility applications.
YAWEI TRANSFORMER
Product Overview
Pad-mounted transformers are designed for outdoor underground distribution systems. Their tamper-resistant enclosure, compact footprint, and durable construction make them ideal for utility, commercial, residential, and industrial applications.
Up To
46 kV
Voltage
Up To
15 mVA
Capacity
ONAN/ ONAF/
KNAN/ KNAF
Cooling
Only
45 Days
Lead Time
YAWEI TRANSFORMER
Standard Specifications
| Voltage Range | 4.16–46kV |
| Power Rating | Up to 15 mVA |
| Frequency | 60 HZ |
| Phase | Three Phase |
| Cooling Method | ONAN/ ONAF/ KNAN/ KNAF |
| Tap Changer | DETC |
| Winding Material | Copper / Aluminum |
| Ambient Temperature | -45°C to +50°C (Optional) |
| Standards | IEEE C57, IEC 60076 |
| Installation | Indoor / Outdoor |
| Lead Time | 45 Days |
| Service Life | ≥25 Years |
YAWEI TRANSFORMER
Main Applications
Utility Transmission & Distribution Networks
Power Generation Plants
Renewable Energy
(Solar & Wind Farms)
Industrial Facilities
Oil & Gas Industry
Mining Operations
Data Centers
Infrastructure Projects
Commercial & Residential Power Supply
Substations
YAWEI TRANSFORMER
Product Features
High Efficiency
Low Loss
Low Noise
High Reliability
Low Partial Discharge
Long Service Life
IEC / IEEE Compliant
Custom Design
Easy Maintenance
YAWEI TRANSFORMER

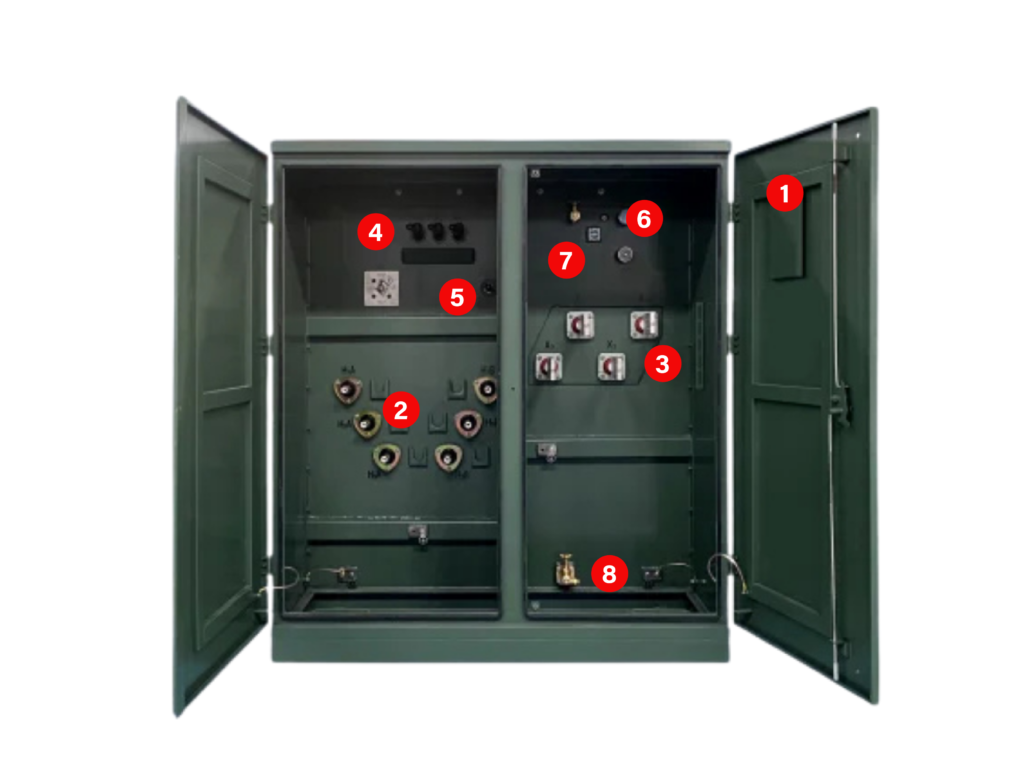

Main Components
1
Transformer Enclosure
2
High-Voltage Bushings
3
Low-Voltage Bushings
4
Bay-O-Net Fuse
5
Tap Changer
6
Pressure Relief Device
7
Oil Level Indicator
8
Grounding Provisions
YAWEI TRANSFORMER
Get a Quote
Looking for a reliable power transformer solution? Our engineering team is ready to help you select the right transformer for your project.
