Dry Transformer
Dry Transformers use advanced insulation technology to deliver safe, flame-retardant, and pollution-free operation without insulating oil.
YAWEI TRANSFORMER
Product Overview
Dry-type transformers eliminate the need for insulating oil while providing dependable performance and low maintenance. They are commonly installed in commercial buildings, hospitals, schools, factories, and renewable energy facilities.
Up To
35 kV
Voltage
Up To
25 mVA
Capacity
ANAN/
ANAF
Cooling
Only
45 Days
Lead Time
YAWEI TRANSFORMER
Standard Specifications
| Voltage Range | 4.16–35kV |
| Power Rating | Up to 25 mVA |
| Frequency | 50/60 HZ |
| Phase | Three Phase |
| Cooling Method | ANAN / ANAF |
| Tap Changer | DETC / OLTC |
| Winding Material | Copper / Aluminum |
| Ambient Temperature | -25°C to +50°C (Optional) |
| Standards | IEEE C57, IEC 60076 |
| Installation | Indoor / Outdoor |
| Lead Time | 45 Days |
| Service Life | ≥25 Years |
YAWEI TRANSFORMER
Main Applications
Utility Transmission & Distribution Networks
Power Generation Plants
Renewable Energy
(Solar & Wind Farms)
Industrial Facilities
Oil & Gas Industry
Mining Operations
Data Centers
Infrastructure Projects
Commercial & Residential Power Supply
Substations
YAWEI TRANSFORMER
Product Features
High Efficiency
Low Loss
Low Noise
High Reliability
Low Partial Discharge
Long Service Life
IEC / IEEE Compliant
Custom Design
Easy Maintenance
YAWEI TRANSFORMER

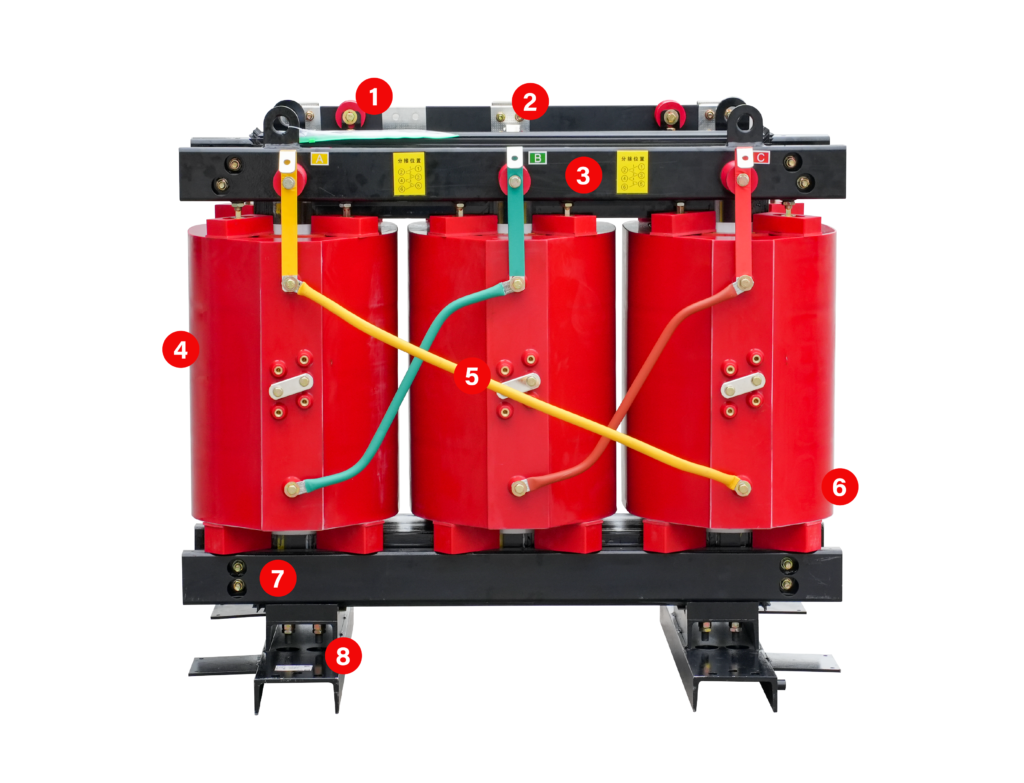

Main Components
1
Lifting Lugs
2
HV Terminal
3
LV Terminal
4
Cast Resin Coil
5
HV/LV Terminals
6
Insulating Support Pads
7
Base Frame
8
Mounting Feet
YAWEI TRANSFORMER
Get a Quote
Looking for a reliable power transformer solution? Our engineering team is ready to help you select the right transformer for your project.
