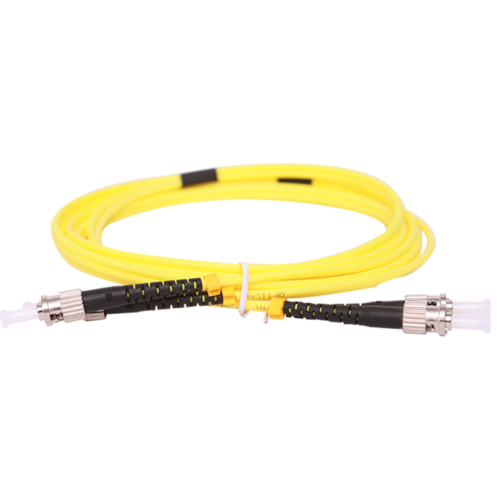

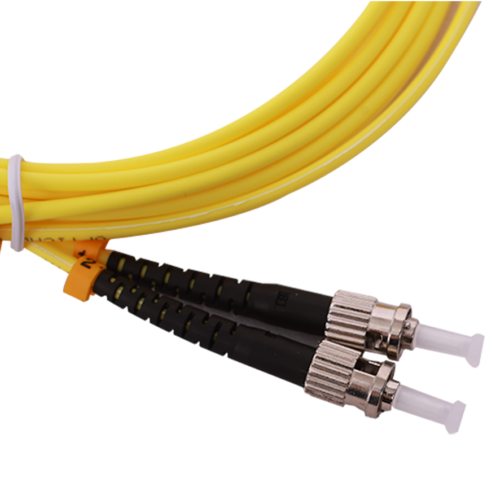

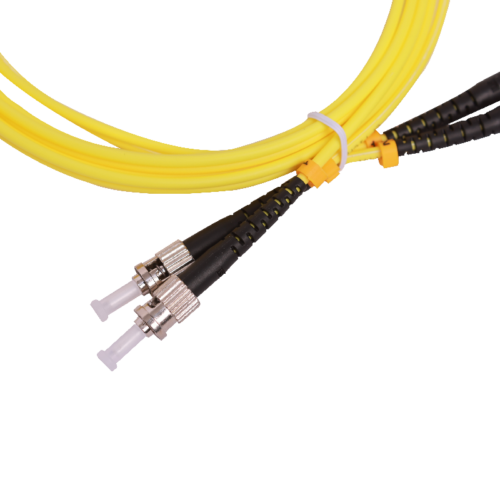

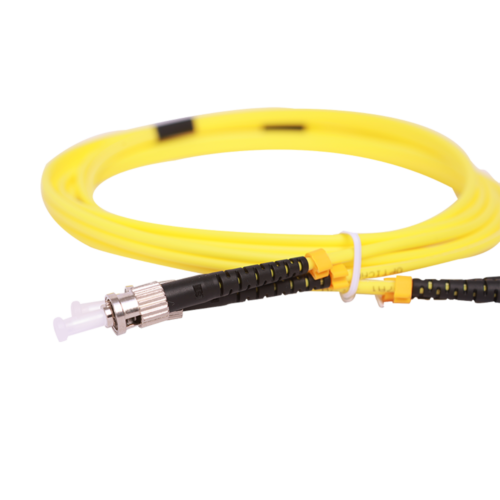

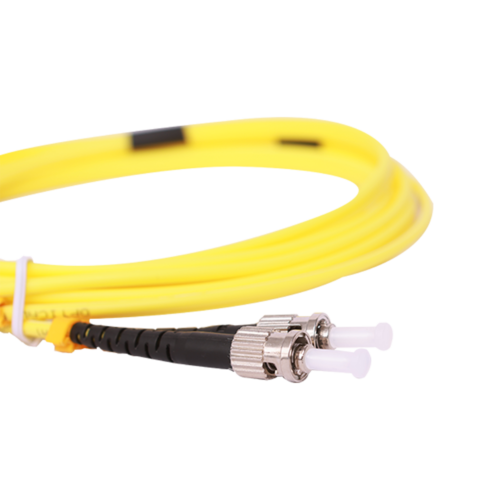

ST UPC-ST UPC Duplex
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
PRODUCT DESCRIPTION
PRODUCT SPECIFICATIONS
|
Items
|
Unit
|
Technical index
|
|
Product Description
|
–
|

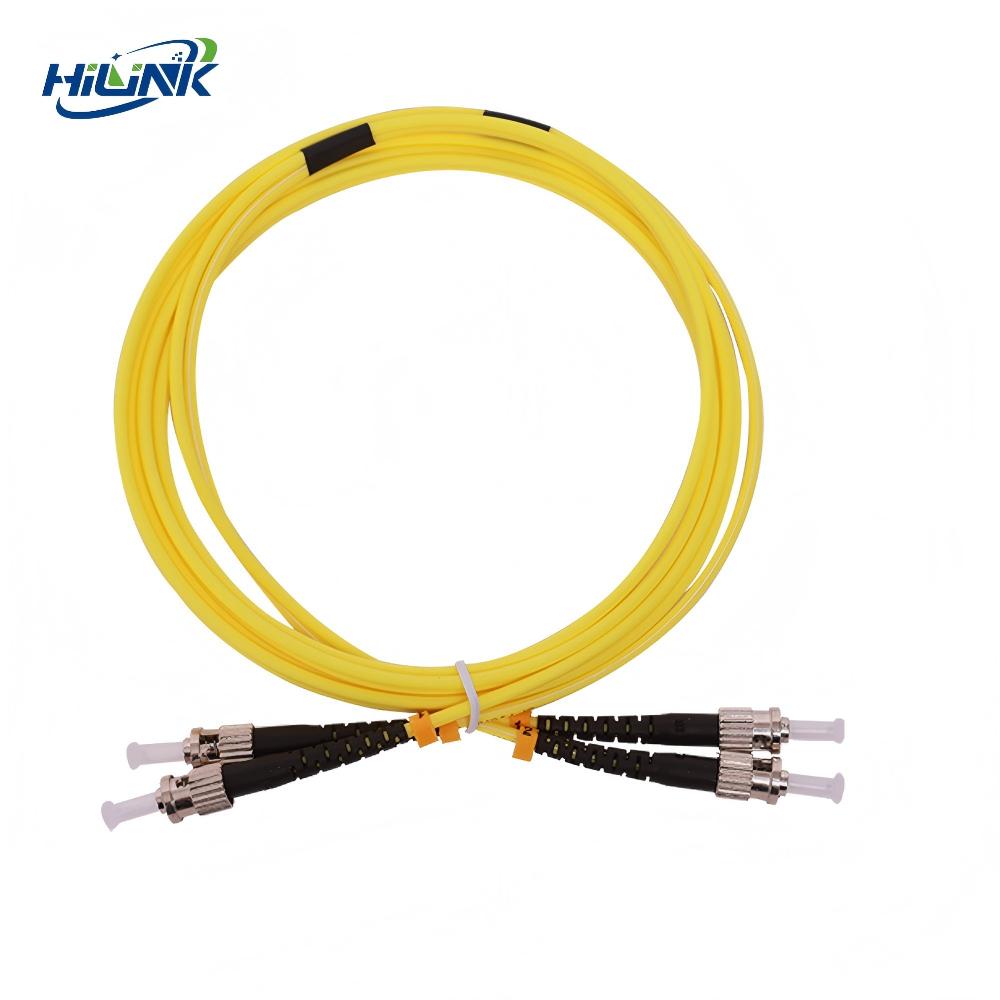

PATCHCORD-ST UPC-ST UPC Duplex-SINGLE CORE-G657A1/A2-LSZH
|
|
Length
|
m
|
1-30
|
|
Mating Cycles
|
–
|
>1000
|
|
Product Model
|
–
|
ST UPC-ST UPC Duplex
|
|
Tensile strength
|
≥200N
|
|
|
Cable Diameter
|
mm
|
3.0/2.0/0.9
|
|
Working Wavelength
|
nm
|
1260-1650
|
|
Insertion Loss
|
dB
|
≤0.35
|
|
Return Loss
|
dB
|
≥50(UPC); ≥60（APC）
|
|
Operating Temperature
|
℃
|
-40~75
|
|
Storage Temperature
|
℃
|
-40~85
|
SIMILAR PRODUCTS
|
CODE
|
TYPE
|
FIBER COUNTS
|
LENGTH
|
|
SC APC-SC APC
|
Simplex
|
1-30M
|
|
|
SC APC-SC APC
|
Duplex
|
1-30M
|
|
|
SC APC-LC APC
|
Simplex
|
1-30M
|
|
|
SC APC-LC APC
|
Duplex
|
1-30M
|
|
|
SC APC-LC UPC
|
Simplex
|
1-30M
|
|
|
SC APC-LC UPC
|
Duplex
|
1-30M
|
|
|
SC UPC-SC UPC
|
Simplex
|
1-30M
|
|
|
SC UPC-SC UPC
|
Duplex
|
1-30M
|
|
|
SC UPC-LC APC
|
Simplex
|
1-30M
|
|
|
SC UPC-LC APC
|
Duplex
|
1-30M
|
|
|
SC UPC-LC UPC
|
Simplex
|
1-30M
|
|
|
SC UPC-LC UPC
|
Duplex
|
1-30M
|
|
|
SC UPC-FC UPC
|
Simplex
|
1-30M
|
|
|
SC UPC-FC UPC
|
Duplex
|
1-30M
|
|
|
FC APC-FC APC
|
Simplex
|
1-30M
|
|
|
FC APC-FC APC
|
Duplex
|
1-30M
|
|
|
FC APC-LC APC
|
Simplex
|
1-30M
|
|
|
FC APC-LC APC
|
Duplex
|
1-30M
|
|
|
FC APC-SC APC
|
Duplex
|
1-30M
|
|
|
FC UPC-FC UPC
|
Simplex
|
1-30M
|
|
|
FC UPC-FC UPC
|
Duplex
|
1-30M
|
|
|
FC UPC-LC APC
|
Simplex
|
1-30M
|
|
|
FC UPC-LC APC
|
Duplex
|
1-30M
|
|
|
FC UPC-LC UPC
|
Simplex
|
1-30M
|
|
|
FC UPC-LC UPC
|
Duplex
|
1-30M
|
|
|
FC UPC-SC APC
|
Duplex
|
1-30M
|
|
|
LC APC-LC APC
|
Simplex
|
1-30M
|
|
|
LC APC-LC APC
|
Duplex
|
1-30M
|
|
|
LC APC-ST UPC
|
Simplex
|
1-30M
|
|
|
LC UPC-LC UPC
|
Simplex
|
1-30M
|
|
|
LC UPC-ST UPC
|
Simplex
|
1-30M
|
|
|
LC UPC-SC APC
|
Duplex
|
1-30M
|
|
|
LC UPC-ST UPC
|
Duplex
|
1-30M
|
|
|
ST UPC-ST UPC
|
Simplex
|
1-30M
|
|
|
ST UPC-ST UPC
|
Duplex
|
1-30M
|
|
|
ST UPC-FC UPC
|
Duplex
|
1-30M
|
|
|
E2000 UPC-LC APC
|
Simplex
|
1-30M
|
|
|
E2000 UPC-LC APC
|
Duplex
|
1-30M
|
|
|
E2000 UPC-LC UPC
|
Simplex
|
1-30M
|
|
|
E2000 APC-LC APC
|
Simplex
|
1-30M
|
|
|
E2000 APC-LC APC
|
Duplex
|
1-30M
|
|
|
E2000 APC-LC UPC
|
Duplex
|
1-30M
|
|
|
E2000 APC-E2000 APC
|
Simplex
|
1-30M
|
|
|
E2000 UPC-E2000 UPC
|
Simplex
|
1-30M
|
|
|
E2000 UPC-E2000 UPC
|
Duplex
|
1-30M
|
Product Schematic Diagram
