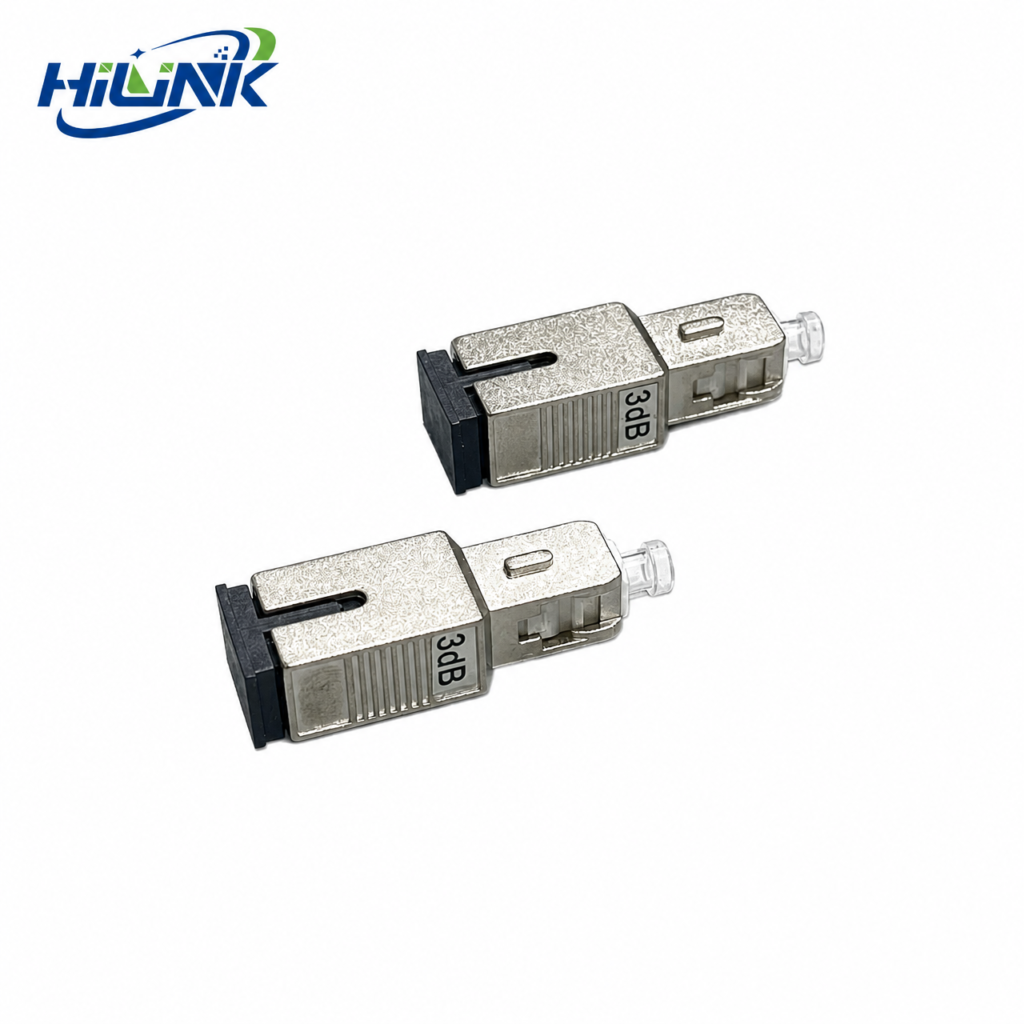

SC-UPC 3dB Attenuator

Name: SC-UPC 3dB Attenuator
Brand: hloptical.com

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Description

Model Number	SC-UPC 3dB
Place of Origin	Zhejiang, China
Brand Name	HILINK
Attenuation Value	1dB ~ 30dB
Operating Wavelength	1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss	UPC >55dB
Return Loss	APC >65dB
Attenuation Accuracy	1 ~ 7 dB ±0.5dB
	8 ~ 12 dB ±0.7dB
	13 ~ 17 dB ±1.0dB
	18 ~ 25 dB ±1.3dB
Maximum Optical Input Power	1000mW
Insertion Loss	≤0.3DB PC≥45 APC≥55
Polarization Dependent Loss	≤0.1dB
Operating Temperature Range	-40 to 75
Storage Temperature Range	-40 to 85
Humidity	95%RH
