SC-H036-01
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Model No.:SC-H036-01
1.General Information

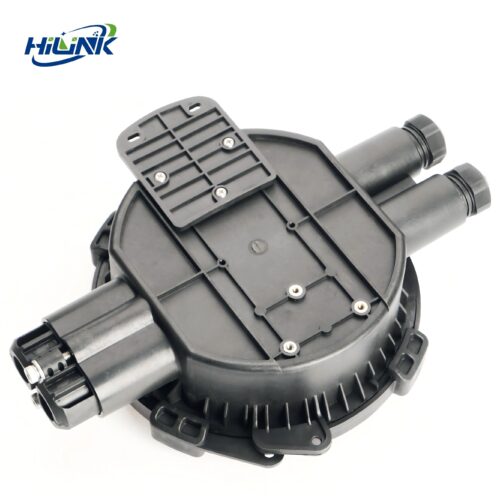

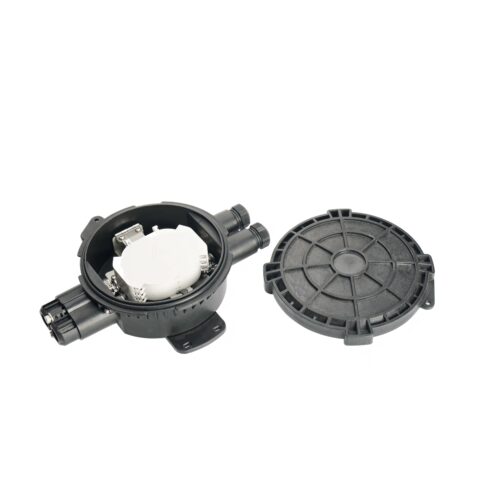

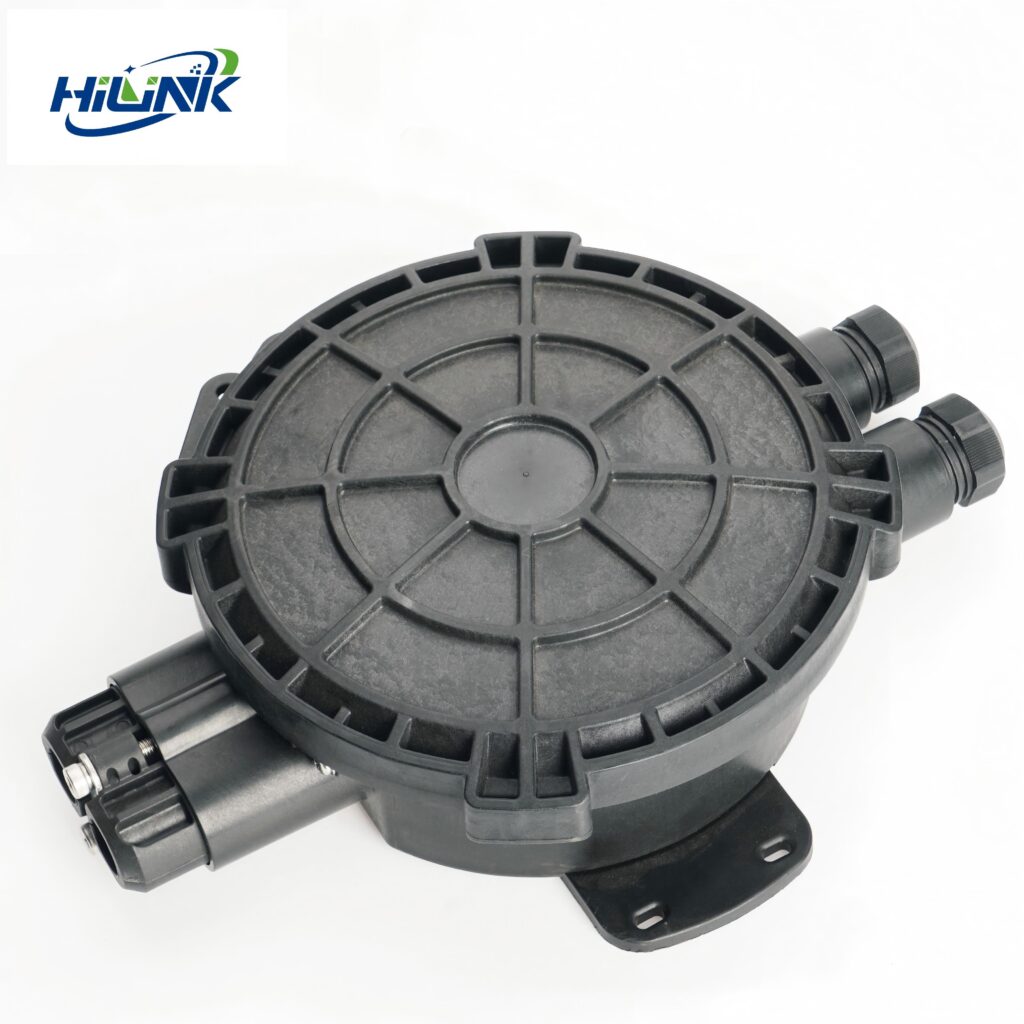

SC-H036-01 type of Fiber Optic Splice Closure is a member in dome series, the main function is to provide direct pass, branch and splice protection for various types of fiber cable during optical transmission. Protection rate is IP68. This type has two round cable ports and one oval cable port for uncut fiber cable. The material of seal component is , the cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws. This model is excellent in sealing performance, easy for installation, wide applications.
2.Feature
Total 3 trays with maximum capacity of 36 cores.
This connector box is suitable for wall mounting and pipeline.

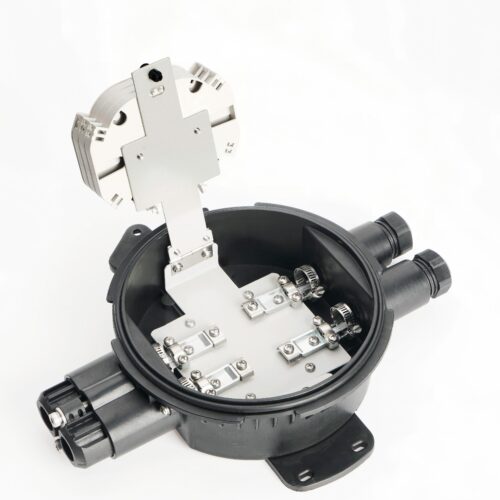

The hinge is used for the fiber trays , which is convenient for the operation of each fiber trays.
No screw page-turning structure , plug and play, fast response for new subscribers.
3.Specification
| Dimension（mm） | 295X220X90 | Max. capacity (single fiber) | |
| Weight（kg） | Maximum number of trays | ||
| Uncut port（mm） | 1（Φ10～17.5） | Sealing type | Mechanical |
| Branch ports(mm) | IP grade | ||

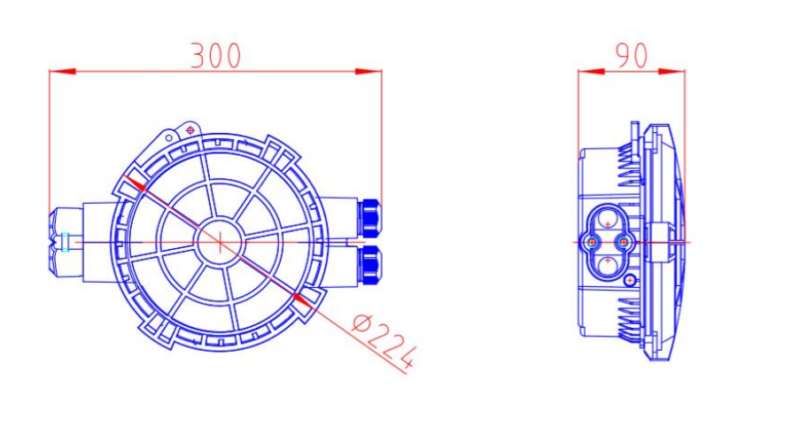

4. Structure Drawing
Downloads
| File | Download |
|---|---|
| SC-H036-01-datasheet.pdf | Download |
