HL-FTB-10B-2
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

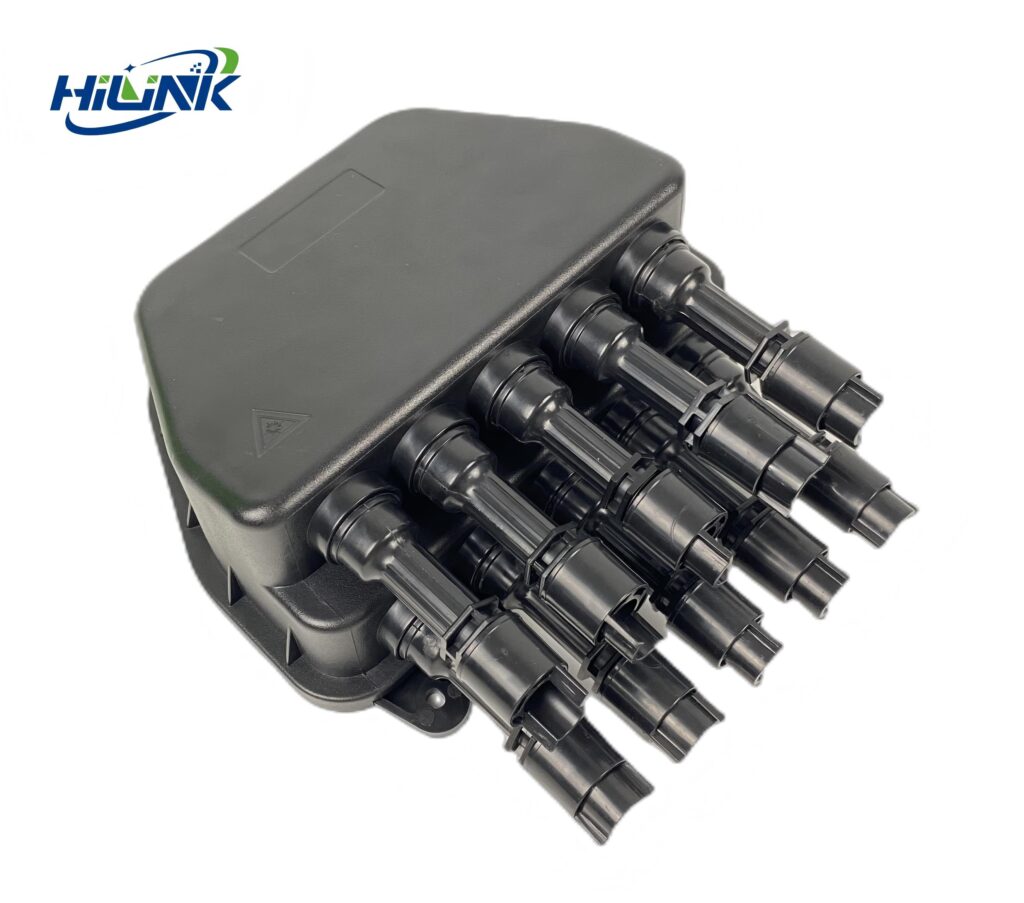

Model No.:FTB–10B-2
1 Overview
YIPU Model No. FTB-10B-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 & 9 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Technical Index
| Model No. | FTB-10B-2 | Color | Black, Grey White.. |
| Capacity | 8 & 9 cores | Protection Level | IP55 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 209*205*86 | Splitter | Can be with 2×1:4 tube splitter |

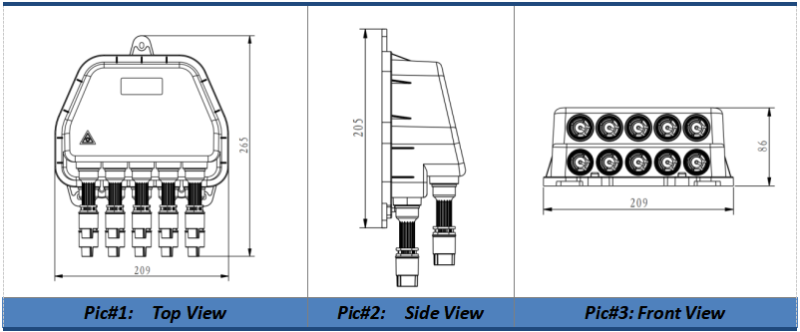

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;
3.2 With good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);
3.3 It can install 8pcs of SC Tyco adapter ( Pic#5 for details);
3.4 The drop leaf can be installed 2 pcs of 1*4 & 1 pcs of 1*8 & 1 pcs of 1*9 tube splitter ( Pic#7 for details);

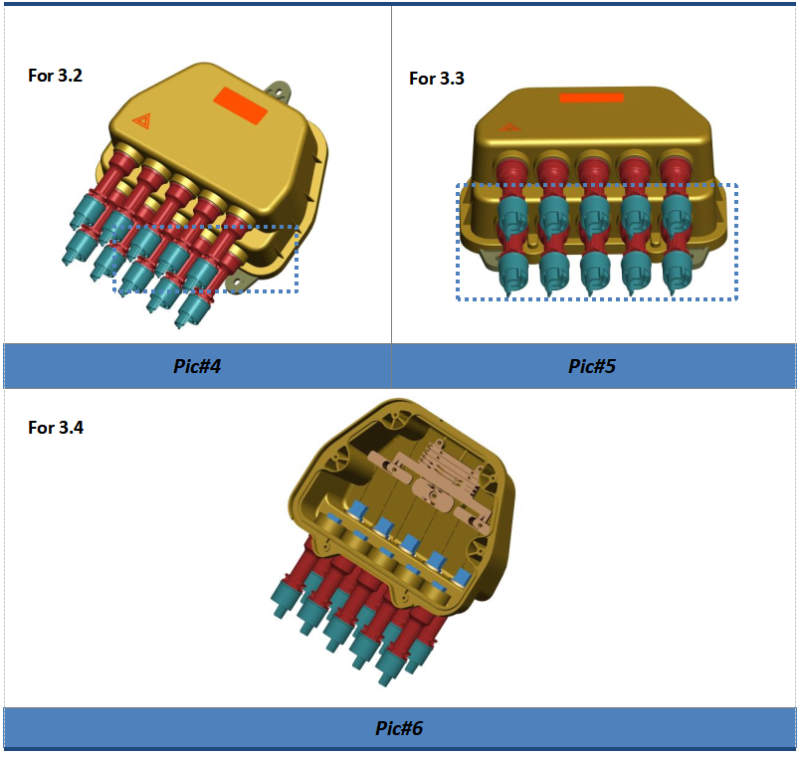

Pictures for reference:
4 Package Information
4.1 Plastic bag size: 300*350 mm
4.2 Inner box with single corrugated size: 270*210*90mm
4.3 Carton with double corrugated size: 555*435*465mm (20PCS/Box)
4.4 Weight per carton：14.5KG
Downloads
| File | Download |
|---|---|
| Datasheet-of-FTB-10B-2.pdf | Download |
