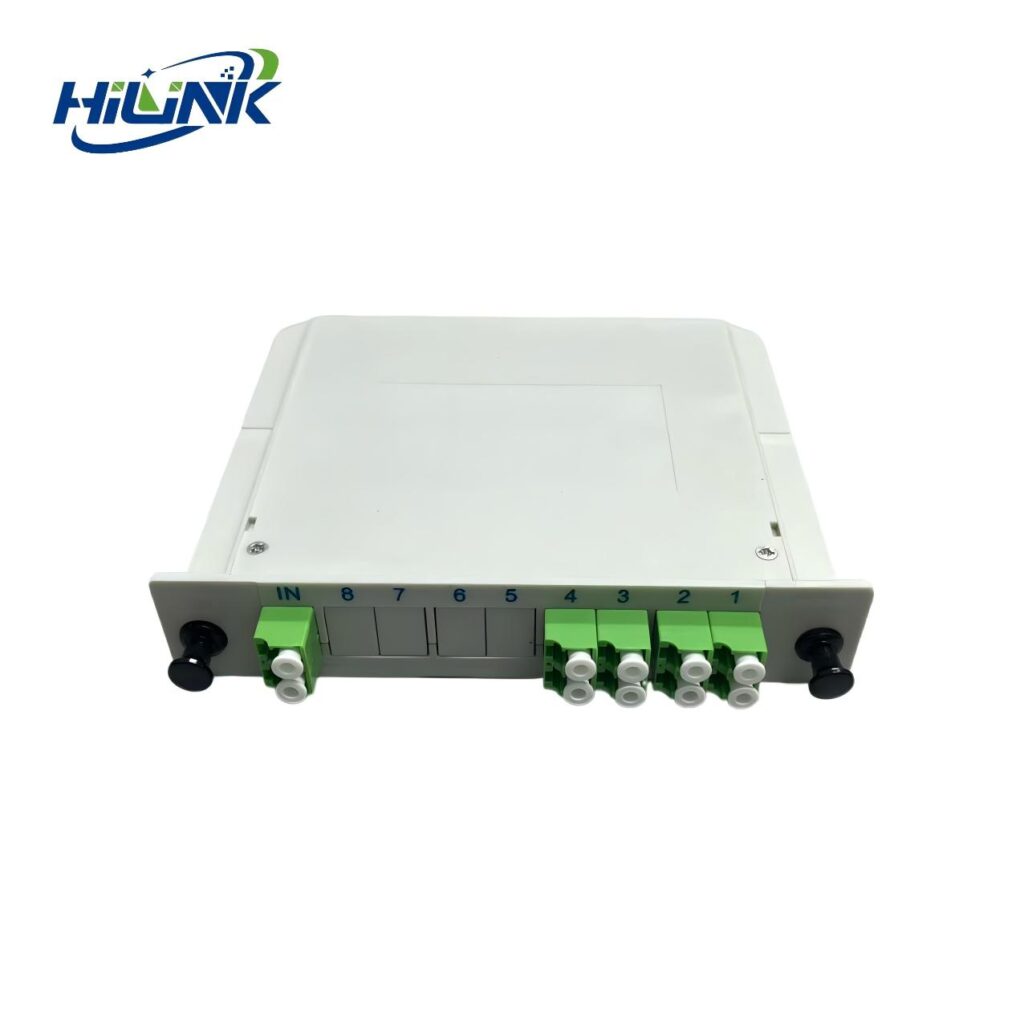

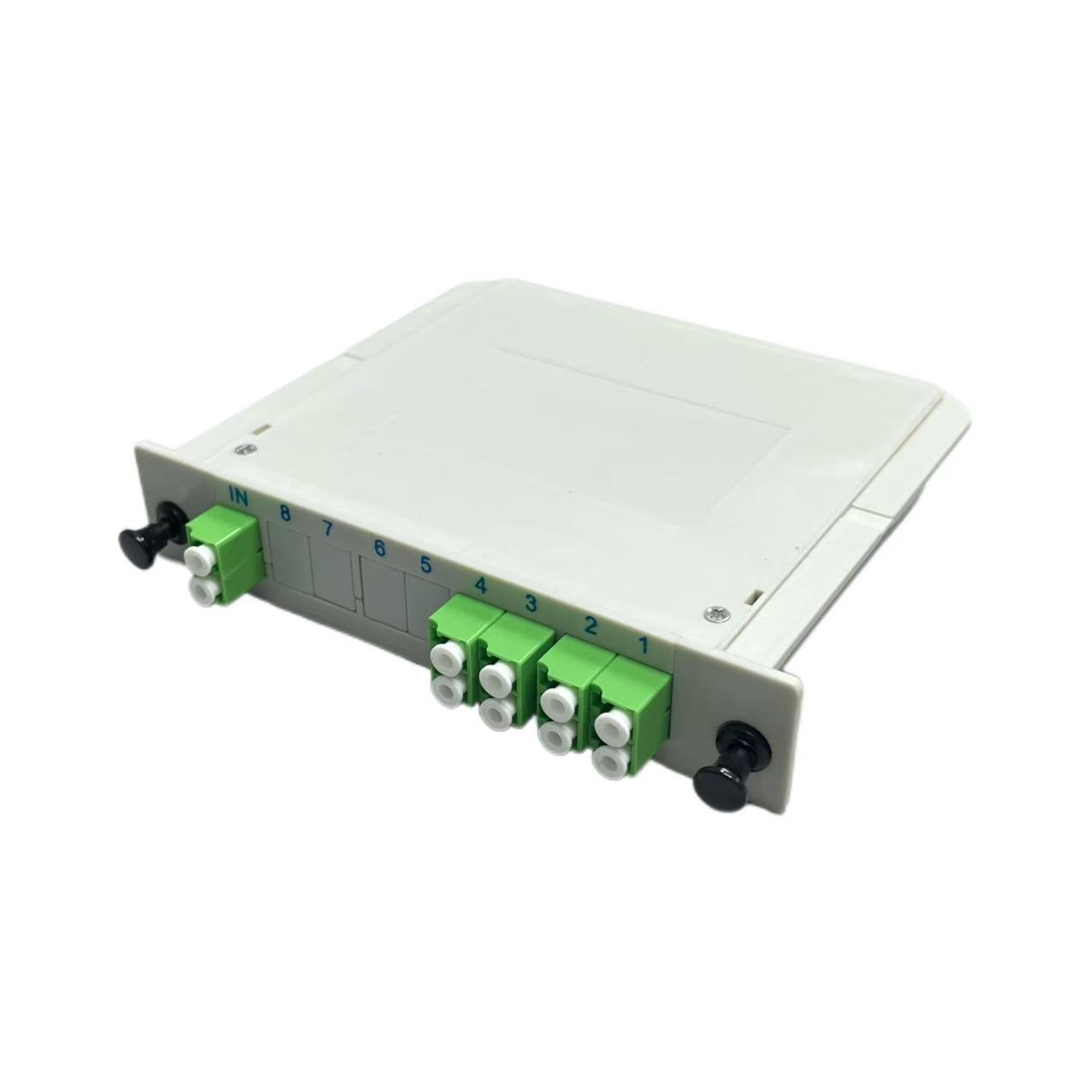

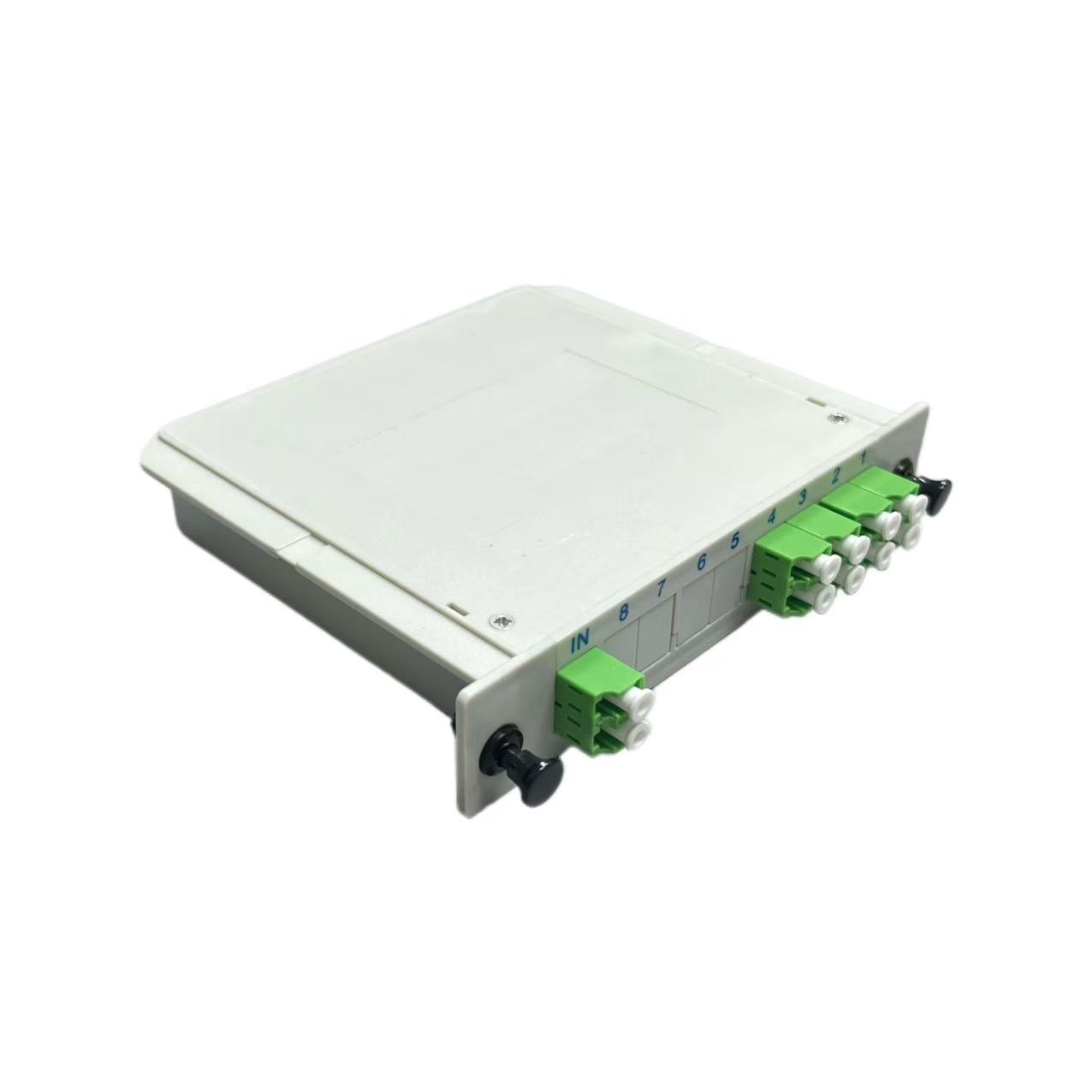

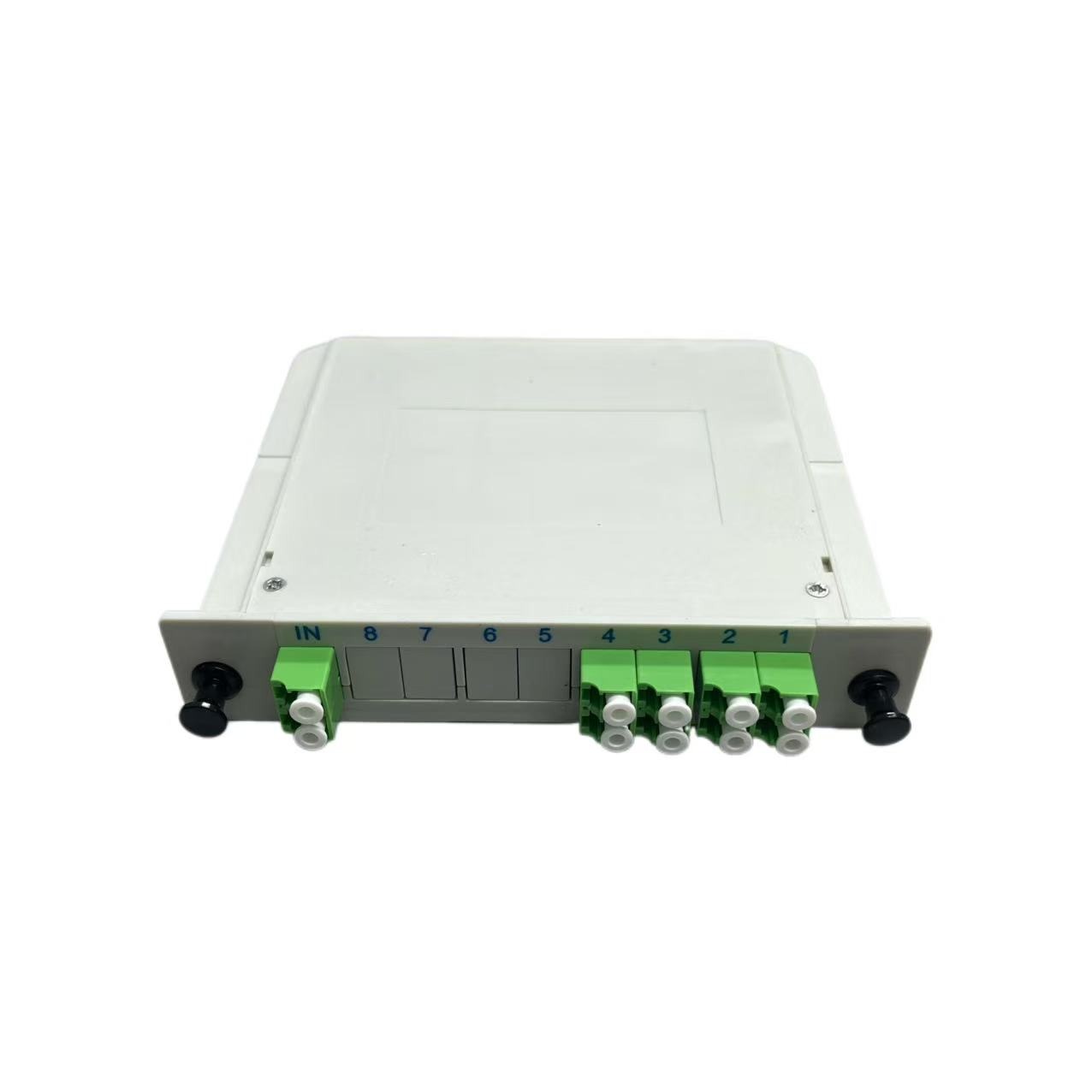

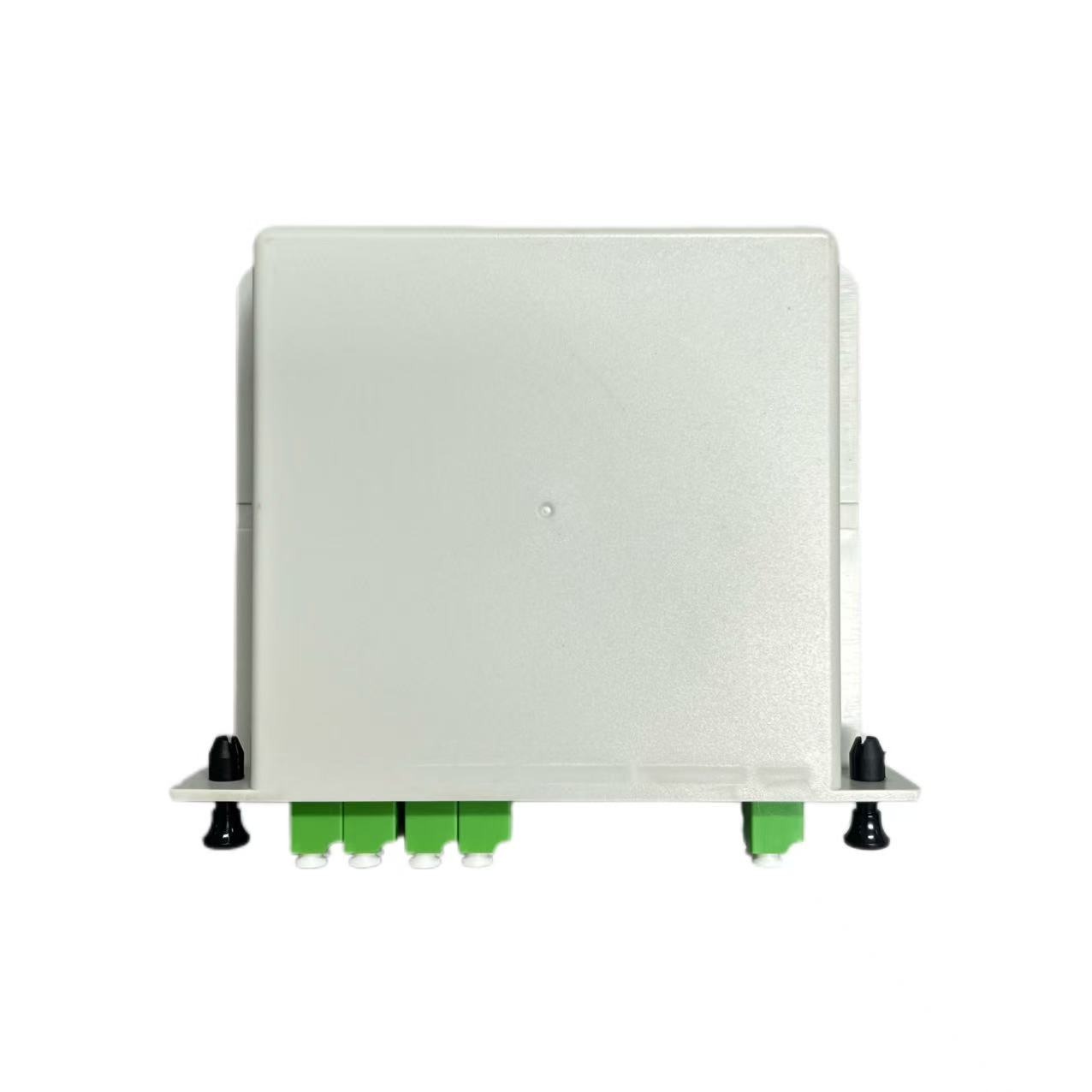

1×4 LC-APC Duplex Chassis Type PLC Splitter
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Insertion Module PLC Splitter
The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used
foroptical power allocation from central office to customer premises in FTTx and FTTH networks.
PLC Splitter offers a cost effective and space saving networking solution in optical transmission system.

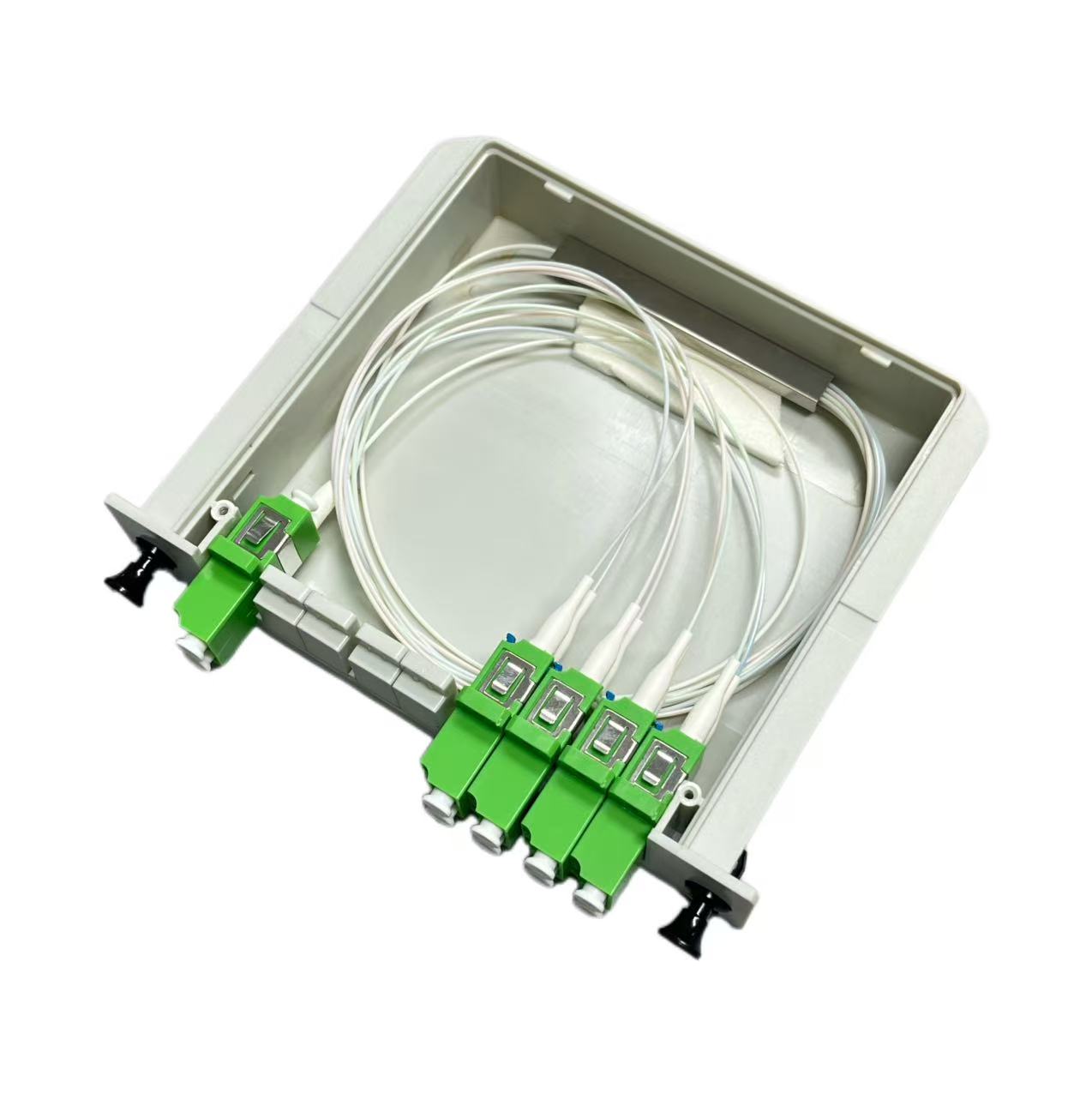

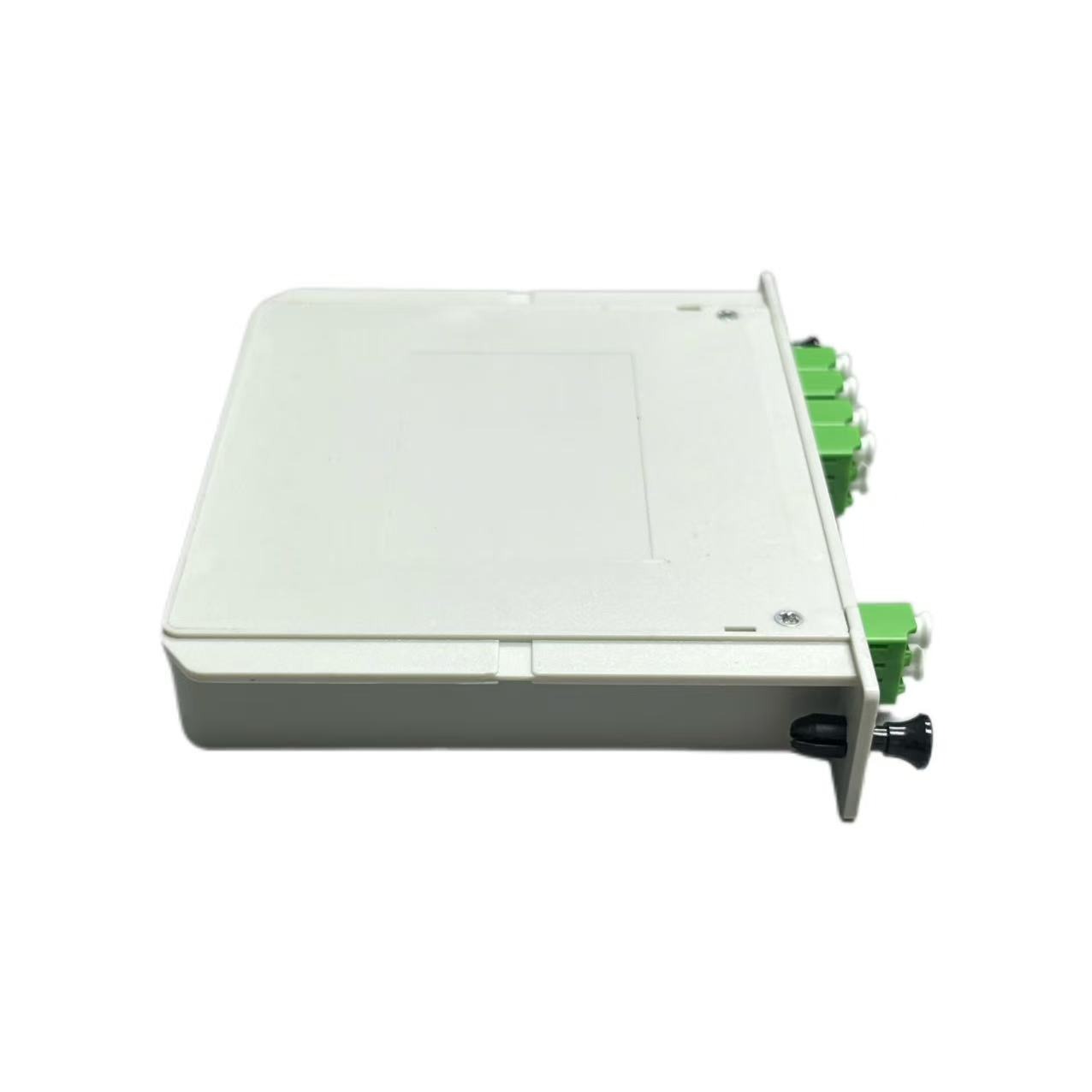

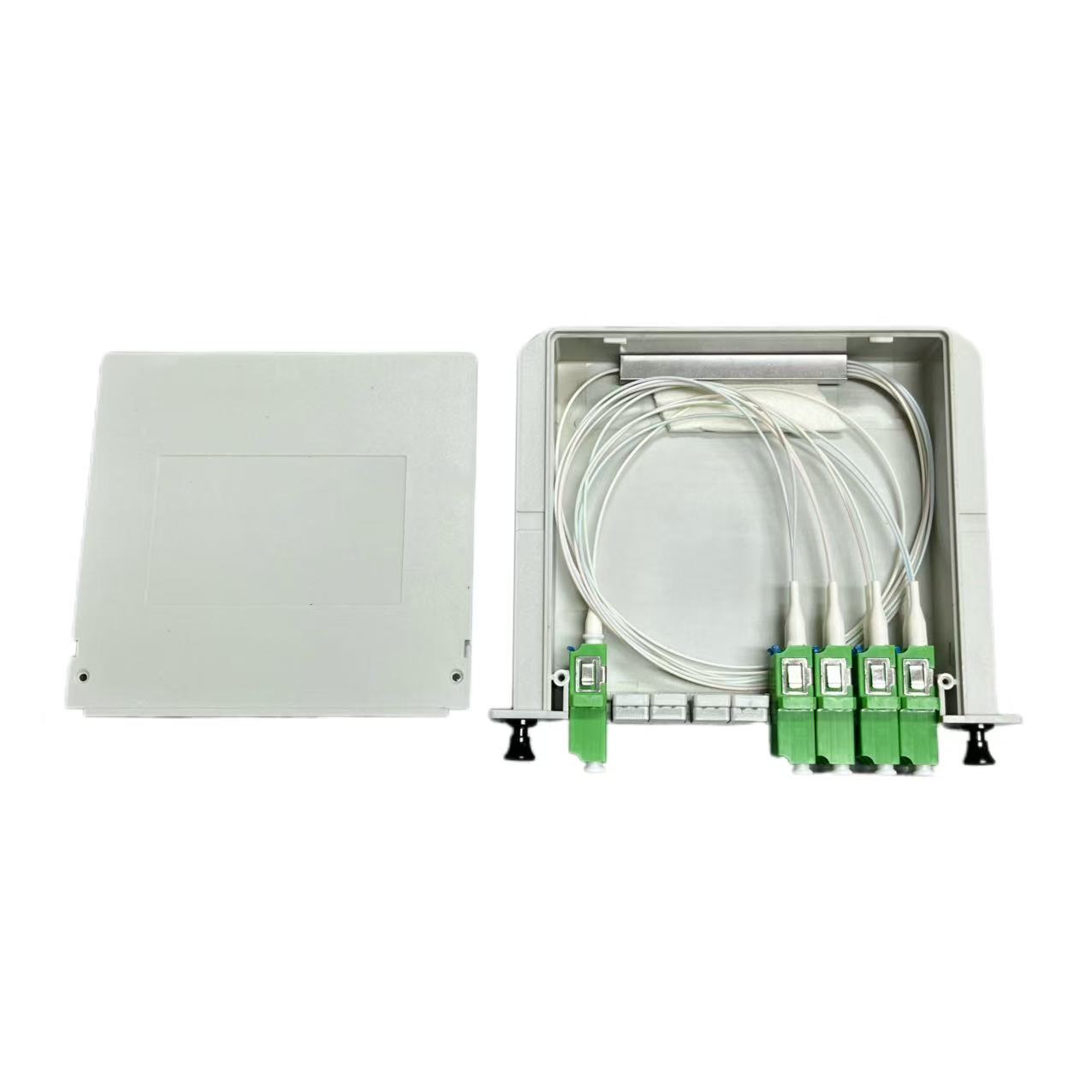

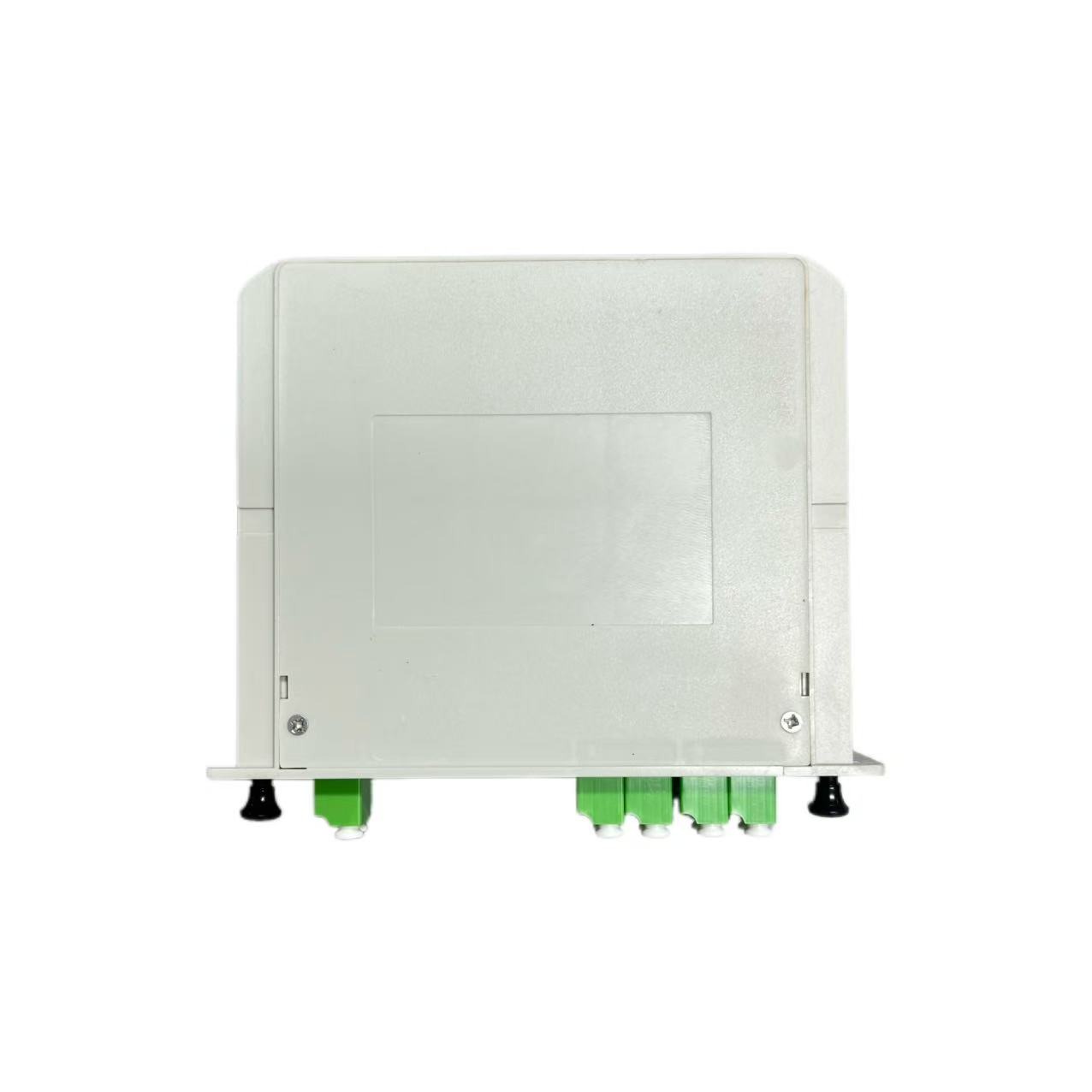

Insertion Module PLC Splitters is packaged in a standard size module, installed in Optical Splitter Box or Fiber Distribution Hub.
* Uniform power splitting
* Compact package dimension
* Low polarization dependent loss
* Good channel-to-channel uniformity
* Low Insertion Loss and high Return Loss
* Environmentally and mechanically stable
* Wide operating wavelength range from 1260nm to 1650nm
PRODUCT SPECIFICATIONS
|
Parameter
|
Specification
|
||||||||
|
Operating Wavelength (nm)
|
1260 ~ 1650
|
||||||||
|
Type
|
1×4
|
1×8
|
1×16
|
2×4
|
2×8
|
2×16
|
1×32
|
2×32
|
1×64
|
|
Insertion Loss (dB) Max. *
|
<7.3
|
<10.5
|
<13.5
|
<7.6
|
<11.2
|
<14.5
|
<16.2
|
<18.2
|
<20.5
|
|
Uniformity (dB) Max.*
|
<0.8
|
<1.0
|
<1.5
|
<1.0
|
<1.5
|
<2.0
|
<2.0
|
<2.5
|
<2.5
|
|
PDL(dB)Max.*
|
<0.2
|
<0.2
|
<0.3
|
<0.3
|
<0.3
|
<0.4
|
<0.3
|
<0.4
|
<0.3
|
|
Directivity (dB)
|
≥55
|
||||||||
|
Return Loss (dB)
|
UPC ≥55 APC ≥60
|
||||||||
|
Operating Temperature (°C)
|
-5~ +75
|
||||||||
|
Storage Temperature (°C)
|
-40 ~ +85
|
||||||||
|
Fiber length
|
1m or custom length
|
||||||||
|
Fiber Type
|
Corning SMF-28e fiber
|
||||||||
|
Connector Type
|
Custom specified
|
||||||||
|
Power Handling (mW)
|
300
|
||||||||
