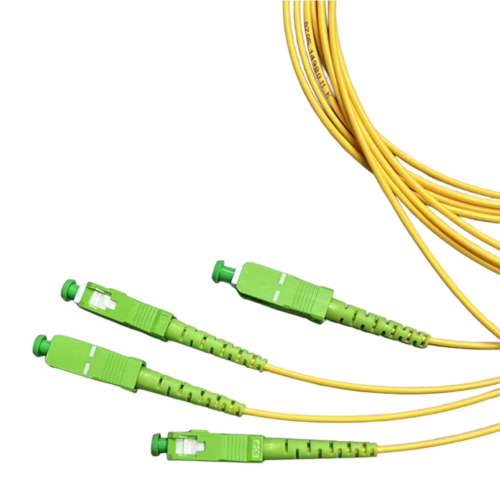

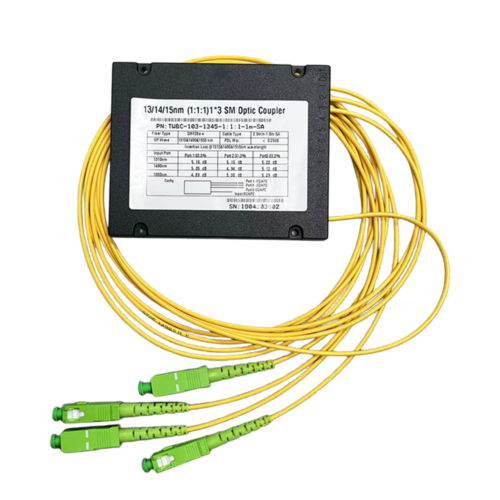

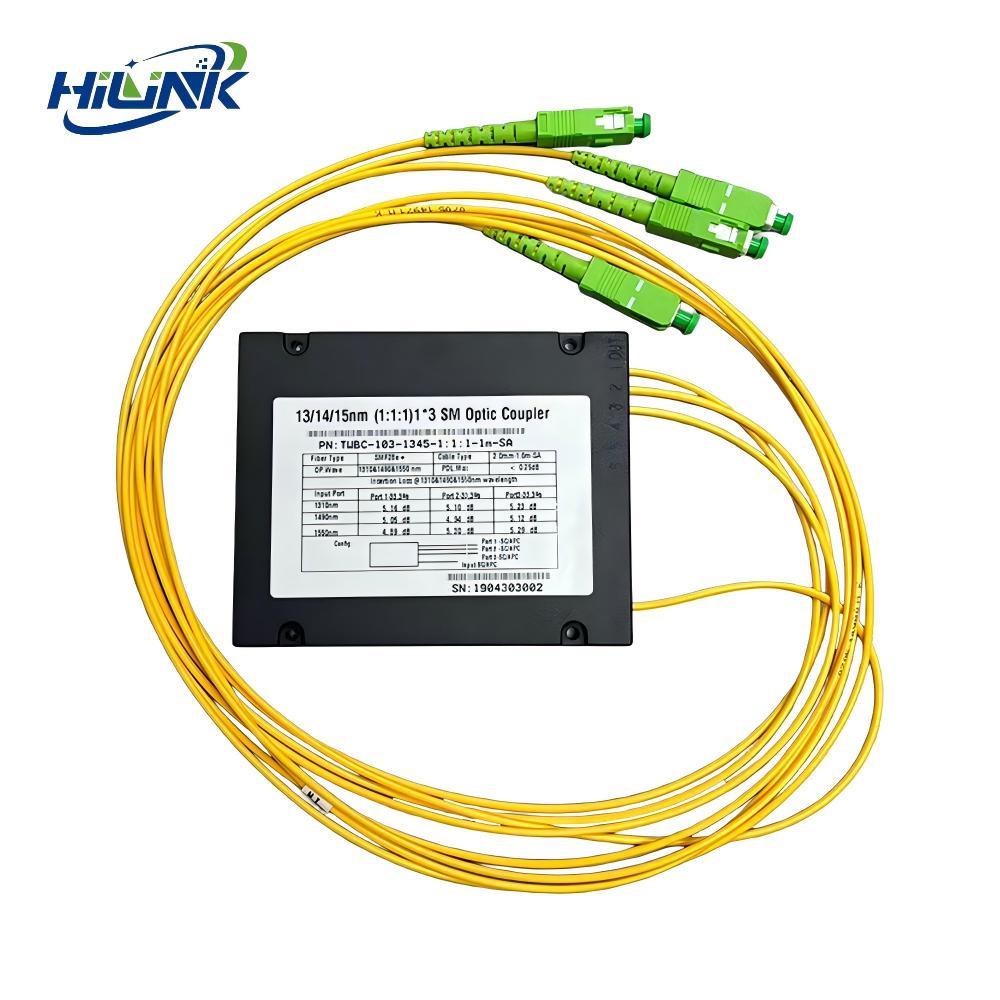

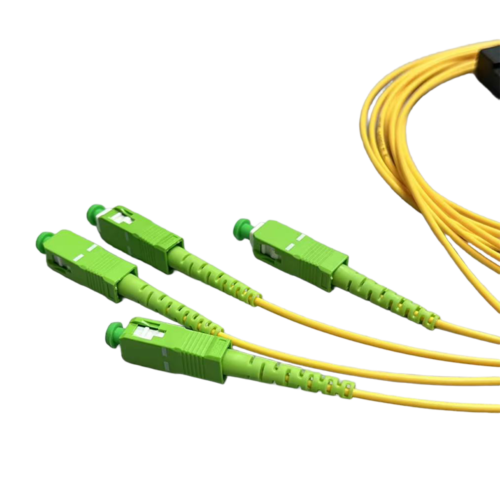

1×3 SC-APC ABS Box Type PLC Splitter
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Application
DWDM network Add/Remove System
CATV fiber optic system
Subway/Access Network
Fiber optic amplifier
CATV fiber optic system
Subway/Access Network
Fiber optic amplifier
Features
Low Insertion Loss and PDL
Compact Design
Good Channel-to Channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliablity and Stability
Good Channel-to Channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliablity and Stability
PRODUCT SPECIFICATIONS
|
Parameter
|
Specification
|
||||||||
|
Operating Wavelength (nm)
|
1260 ~ 1650
|
||||||||
|
Type
|
1×4
|
1×8
|
1×16
|
2×4
|
2×8
|
2×16
|
1×32
|
2×32
|
1×64
|
|
Insertion Loss (dB) Max. *
|
<7.3
|
<10.5
|
<13.5
|
<7.6
|
<11.2
|
<14.5
|
<16.2
|
<18.2
|
<20.5
|
|
Uniformity (dB) Max.*
|
<0.8
|
<1.0
|
<1.5
|
<1.0
|
<1.5
|
<2.0
|
<2.0
|
<2.5
|
<2.5
|
|
PDL(dB)Max.*
|
<0.2
|
<0.2
|
<0.3
|
<0.3
|
<0.3
|
<0.4
|
<0.3
|
<0.4
|
<0.3
|
|
Directivity (dB)
|
≥55
|
||||||||
|
Return Loss (dB)
|
UPC ≥55 APC ≥60
|
||||||||
|
Operating Temperature (°C)
|
-5~ +75
|
||||||||
|
Storage Temperature (°C)
|
-40 ~ +85
|
||||||||
|
Fiber length
|
1m or custom length
|
||||||||
|
Fiber Type
|
Corning SMF-28e fiber
|
||||||||
|
Connector Type
|
Custom specified
|
||||||||
|
Power Handling (mW)
|
300
|
||||||||
