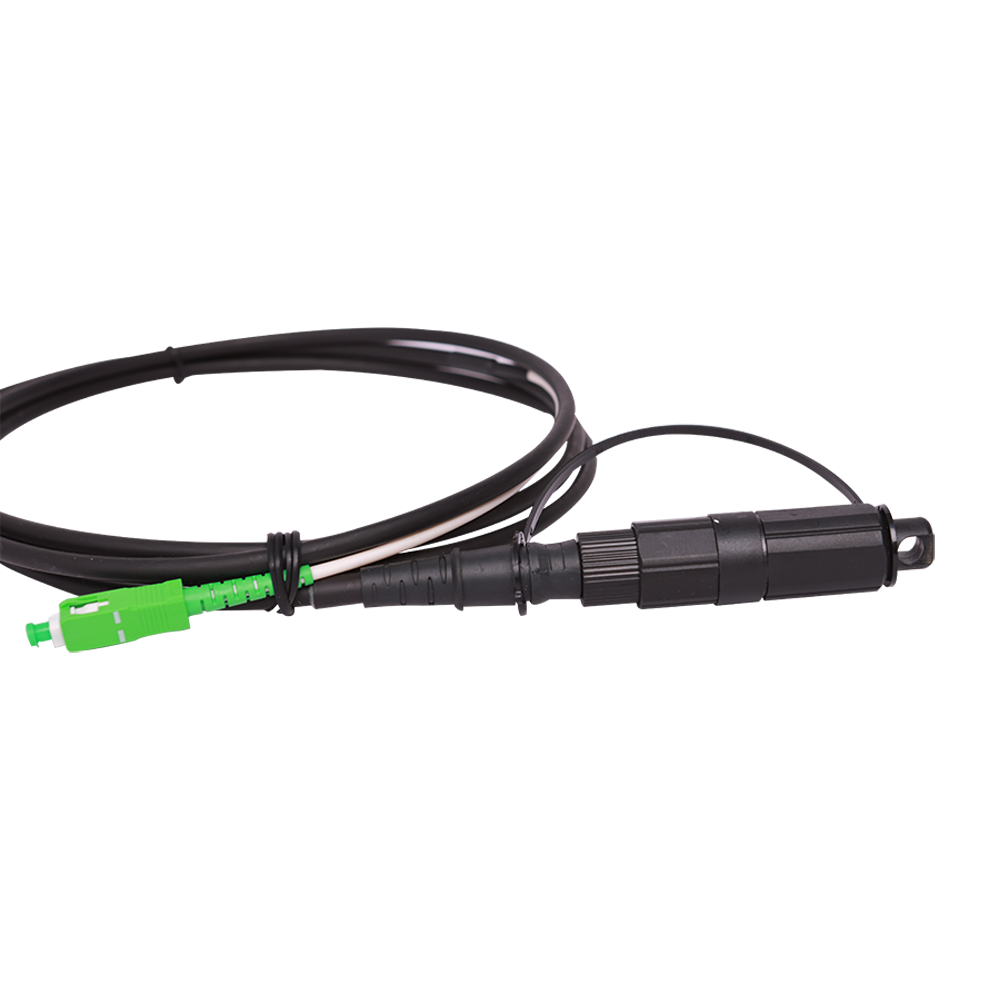

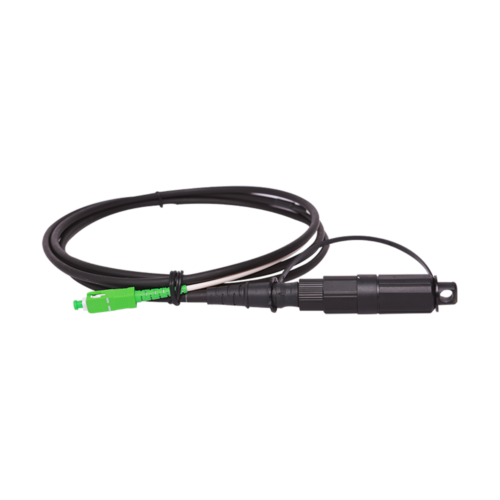

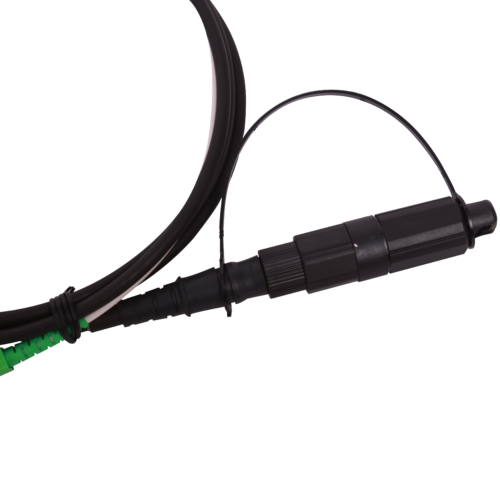

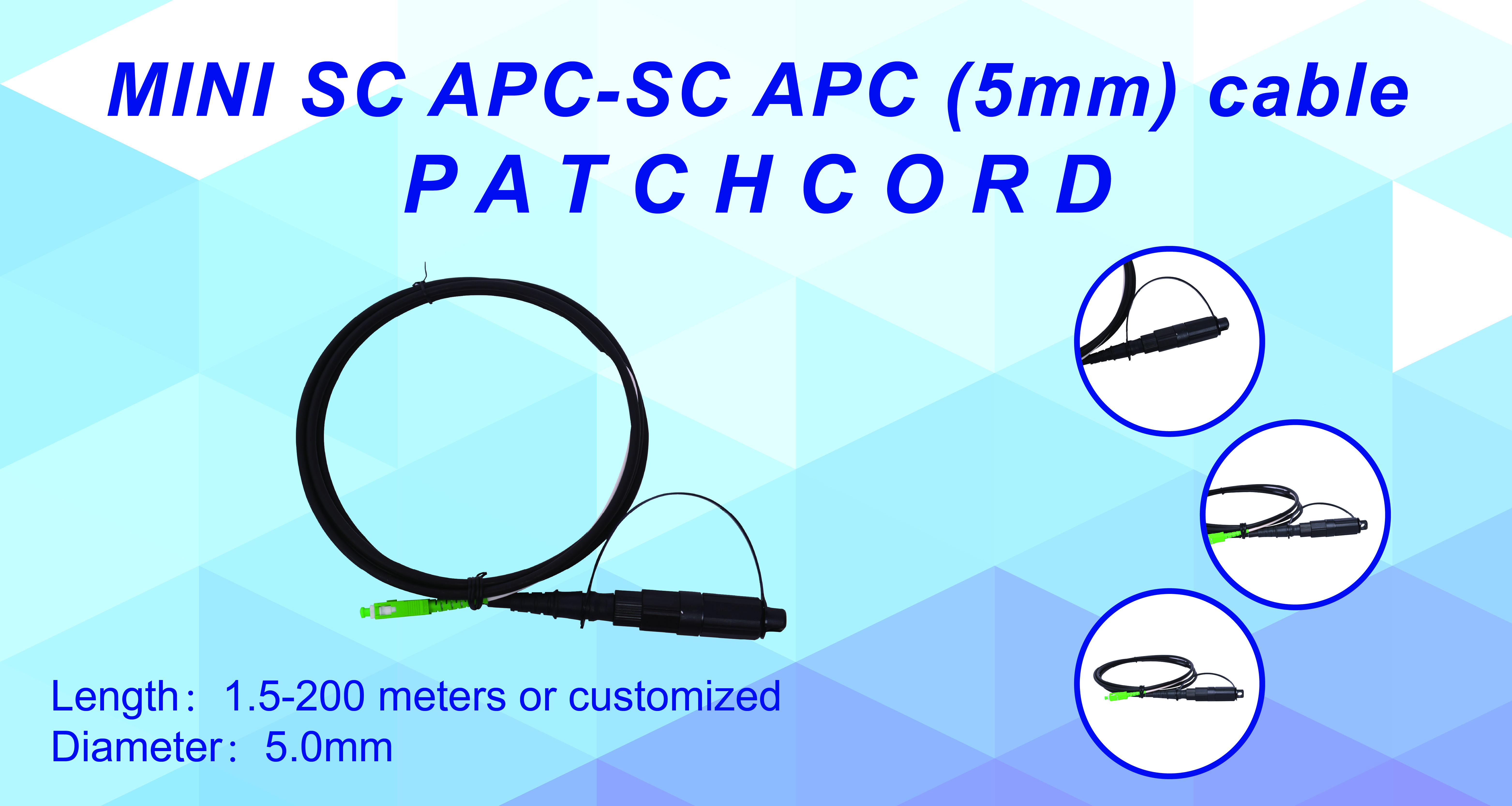

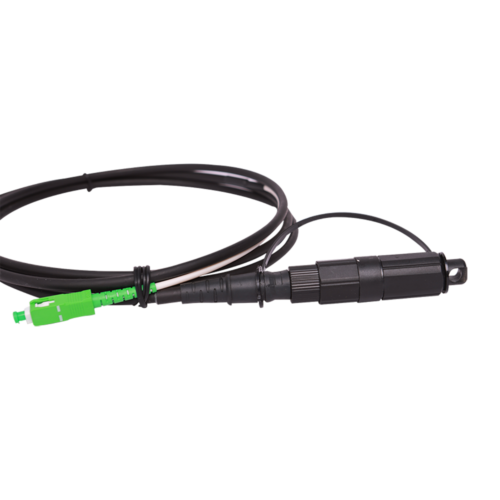

MINI SC APC-SC APC (5mm)
Solicitar un presupuesto
Introduce la cantidad que necesitas y añádela a tu lista de presupuestos para solicitar precios.
Descripción
PRODUCT DISCRIPTION
ESPECIFICACIONES DEL PRODUCTO
|
Items
|
Unit
|
Technical index
|
|
Product Description
|
–
|
PATCHCORD-MINI SC APC-SC APC-SINGLE CORE-G657A1/A2-LSZH
|
|
Length
|
m
|
1.5-200
|
|
Mating Cycles
|
–
|
>1000
|
|
Product Model
|
–
|
MINI SC APC-SC APC
|
|
Tensile strength
|
N
|
≥200
|
|
Diámetro del cable
|
mm
|
5
|
|
Working Wavelength
|
nm
|
1260-1650
|
|
Insertion Loss
|
dB
|
≤0.35
|
|

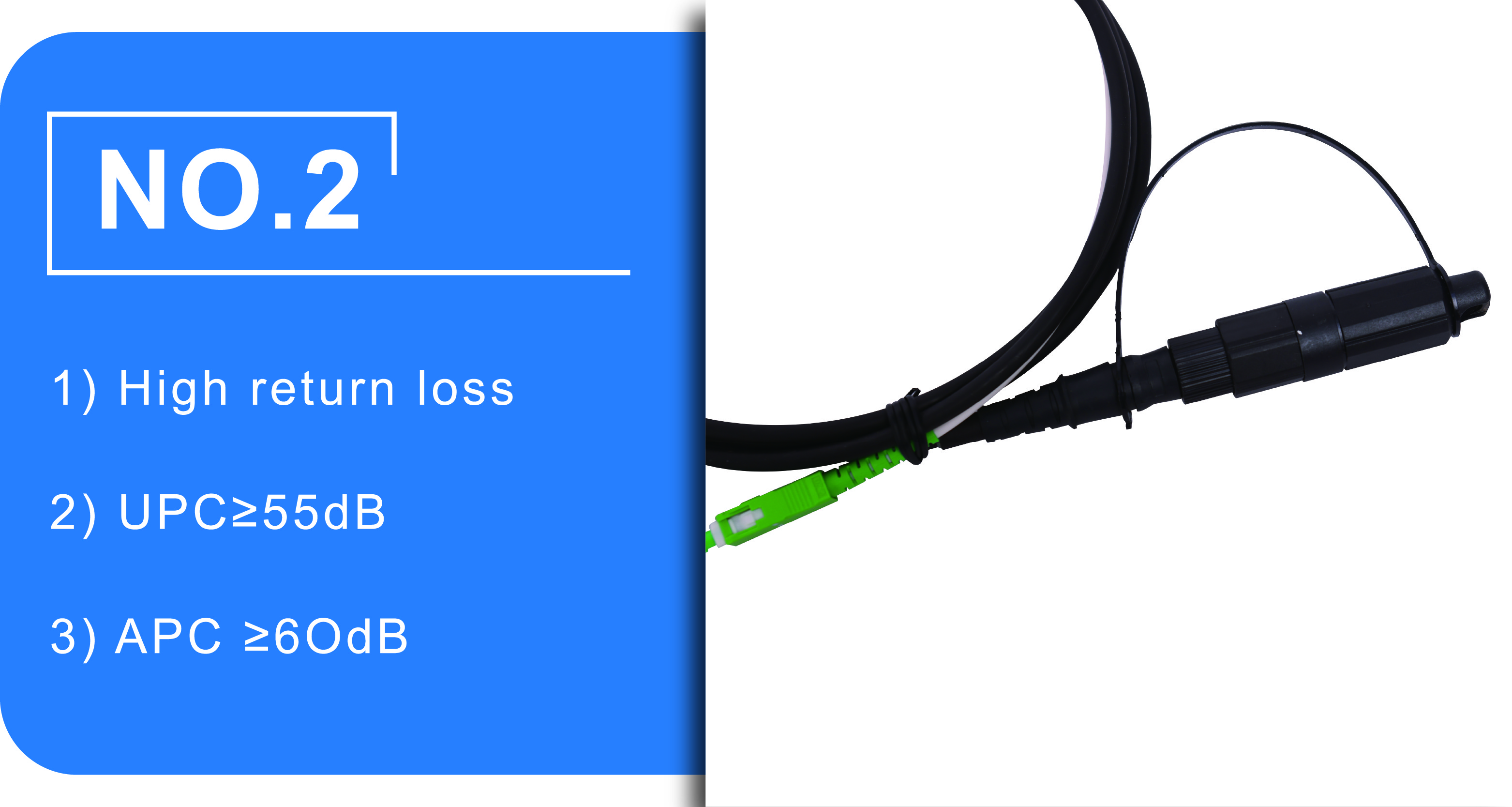

Return Loss
|
dB
|
≥60（APC）
|
|
Operating Temperature
|
℃
|
-40~75
|
|
Storage Temperature
|
℃
|
-40~85
|
|
Water Proof
|
–
|
IP68
|
PRODUCTOS SIMILARES
|
CODE
|
TYPE
|
Color
|
Length
|
|
MINI SC APC-MINI SC APC (5mm)
|
Black
|
1.5-200M
|
|
|
MINI SC APC-SC APC (2X5mm)
|
Black
|
1.5-200M
|
|
|
MINI SC APC-SC APC (2X5mm)
|
Grey
|
1.5-200M
|
|
|
MINI SC APC-MINI SC APC (2x5mm)
|
Black
|
1.5-200M
|
|
|
MINI SC APC-MINI SC APC (2x5mm)
|
Grey
|
1.5-200M
|
|
|
MINI SC APC-SC APC (5.0mm)
|
Black
|
1.5-200M
|
