From consumer gadgets to automotive electronics – discover why FR4 copper clad laminate remains the world’s most widely used substrate material for PCB manufacturing.
What Is FR4 CCL?

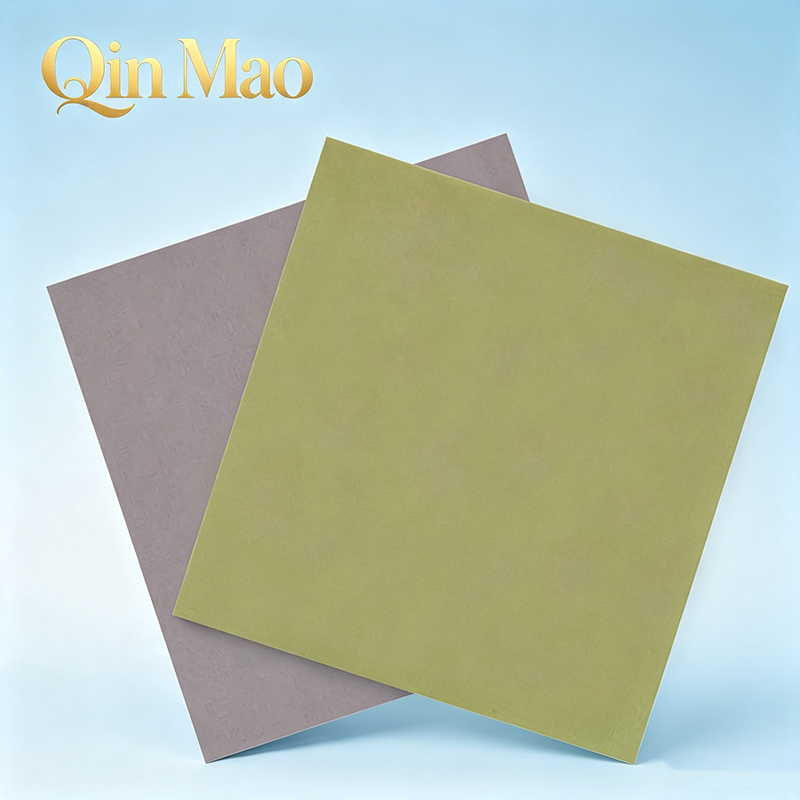

FR4 Copper Clad Laminate is the core, most mature base material used in printed circuit board (PCB) fabrication. It is composed of woven glass fabric as reinforcement and epoxy resin as the matrix, with copper foil laminated onto one or both sides under high temperature and high pressure.
The “FR” in FR4 stands for Flame Retardant, meeting UL 94 V‑0 flammability standards; the “4” designates a specific grade of glass‑reinforced epoxy material. This combination gives FR4 CCL outstanding electrical insulation, mechanical strength, heat resistance, and dimensional stability.
Key Performance Parameters of FR4 CCL
Dielectric Constant (Dk) – The Heart of Signal Transmission
The dielectric constant determines signal propagation speed and impedance control. Standard FR4 has a Dk value in the range of 4.0–4.8, meeting the needs of most low‑ to mid‑frequency digital and analog circuits.
Dissipation Factor (Df) – Guaranteeing Signal Integrity
The dissipation factor measures signal energy lost as heat within the dielectric. Standard FR4 exhibits a Df of about 0.02 (at 1 MHz), performing reliably in consumer electronics and general control circuits.
Glass Transition Temperature (Tg) – A Measure of Heat Resistance
Tg is the temperature at which the laminate begins to soften:
-
Standard FR4: Tg ≈ 130–140°C
-
High‑Tg FR4: Tg ≈ 150–170°C
With the widespread adoption of lead‑free reflow soldering (SAC305 alloys, typically 240–260°C), high‑Tg FR4 has seen growing demand. For example, ITEQ’s IT‑180A high‑Tg material, with its excellent Z‑axis CTE of just 2.7%, has become a benchmark in server motherboard applications.
Coefficient of Thermal Expansion (CTE) – The Key to Reliability
Mismatch in CTE between the substrate and copper foil can lead to via cracking. High‑Tg FR4 reduces Z‑axis CTE values, significantly improving the reliability of multilayer boards and high‑density interconnect (HDI) designs.
Core Advantages of FR4 CCL
✅ Mature Supply Chain & Predictable Processability
FR4 benefits from the world’s most established supply chain and highly predictable processing, making it the most cost‑effective PCB substrate choice. Unlike high‑frequency materials like PTFE, FR4 is compatible with standard PCB fabrication processes – no special plasma desmearing or dedicated drill bits are required.
✅ Excellent Electrical Insulation & Mechanical Strength
With its woven‑glass reinforced epoxy system, FR4 CCL provides outstanding electrical insulation and mechanical strength, capable of withstanding tensile strengths above 340 MPa. Its rated voltage can reach 40 kV, meeting high‑voltage application needs.
✅ Flame Retardancy & Safety
FR4 meets UL 94 V‑0 flammability standards, offering reliable safety protection for electronic devices – a top priority in consumer and automotive electronics.
✅ Flexible Specification Choices
FR4 CCL is available in a wide variety of options:
-
Board thickness: 0.1 mm – 3.2 mm
-
Copper foil thickness: 12 μm, 18 μm, 25 μm, 35 μm, 70 μm
-
Standard panel sizes: 36″×48″ (915×1220 mm), 40″×48″, 41″×49″, etc.
-
Single‑side or double‑side copper cladding available
Wide‑Ranging Applications
📱 Consumer Electronics
FR4 is the standard substrate for smartphones, laptops, televisions, and many other consumer products. Its proven reliability and cost‑effectiveness make it the dominant choice for high‑volume production.
📡 Communication Equipment
The global rollout of 5G networks demands vast numbers of base stations and networking equipment, whose PCBs widely employ FR4 as the base material. From base station control boards to network switches, FR4 delivers consistent performance.
🚗 Automotive Electronics
With the shift toward electric vehicles (EVs) and advanced driver‑assistance systems (ADAS), the number of electronic control units (ECUs), infotainment systems, and power management modules in vehicles continues to grow. FR4 CCL, with its excellent thermal performance, mechanical strength, and flame retardancy, is ideal for meeting stringent automotive safety standards.
🏭 Industrial Control & Instrumentation
Industrial automation demands rugged, reliable PCBs. FR4 performs consistently in harsh industrial environments subject to temperature and humidity variations.
💻 Servers & Networking Equipment
From PCIe Gen 3 control planes to multilayer server motherboards, FR4 and its high‑Tg derivatives play an indispensable role in data centers and network infrastructure.
Why Choose FR4 CCL?
FR4 CCL remains the electronics industry’s “default choice” because it strikes the best balance among performance, cost, reliability, and processability. Whether you’re designing the next‑generation smartphone, automotive electronic control systems, or industrial automation equipment, FR4 CCL provides a solid, dependable foundation.
Core advantages at a glance:
-
✅ The world’s most mature supply chain & lowest per‑board cost
-
✅ Excellent electrical insulation & mechanical strength
-
✅ UL 94 V‑0 flame retardancy for safety
-
✅ Flexible thickness & copper foil options
-
✅ Compatible with standard PCB processes – no special handling required
-
✅ Continuously evolving high‑Tg, halogen‑free, and low‑loss product lines
FR4 CCL – the cornerstone of the electronics industry for over six decades, and still a reliable platform for tomorrow’s innovations. Want to learn more about how FR4 CCL can meet your product needs? Contact us today for expert advice.
