Sterility is one of the most critical quality requirements during eye drop bottle liquid filling because ophthalmic products are directly applied to the human eye. Any microbial contamination, particulate contamination, or loss of container closure integrity may affect product safety and patient health.

To ensure product quality, pharmaceutical manufacturers must use advanced filling equipment and strict aseptic manufacturing processes. A modern eye drop filling machine is designed not only for accurate liquid dosing but also for maintaining a controlled sterile environment throughout the filling, plugging, and capping process.

An advanced aseptic eye drop filling machine integrates cleanroom technology, sterile air protection, precision filling systems, automatic inspection, and validated processes to meet international pharmaceutical standards, including FDA 21 CFR Part 210/211, EU GMP Annex 1, and PIC/S GMP requirements.

Why Sterility Is Important in Eye Drop Manufacturing

Eye drops are classified as sterile pharmaceutical products because they are administered directly onto sensitive ocular tissues. Unlike many oral liquid products, eye drops must meet strict microbiological quality requirements.

The main contamination risks during eye drop production include:

• Microorganisms from the environment
• Particles generated by operators or equipment
• Contaminated containers or closures
• Poor filling area control
• Improper sealing after filling

1. Cleanroom Environment Control

The first step in maintaining sterility during eye drop filling is controlling the manufacturing environment. A pharmaceutical-grade eye drop filling machine is usually installed in a controlled cleanroom environment.

Typical cleanroom configuration:

• Grade A / ISO 5 filling zone
• Grade B background area for aseptic processing
• Grade C/D preparation areas

The filling area is protected by:

• HEPA-filtered air supply
• Laminar airflow system
• Positive pressure control
• Temperature and humidity monitoring

2. Use of Aseptic Eye Drop Filling Machine Technology

An aseptic eye drop filling machine is specifically designed to protect the product from contamination during liquid filling.

The machine integrates multiple sterile protection technologies, including:

• Stainless steel 316L product-contact parts
• Sterile liquid pathway design
• Closed filling system
• Automatic bottle handling
• No bottle, no filling function
• No bottle, no cap function

3. Sterile Bottle Preparation Before Filling

Before entering the filling station, eye drop bottles must be properly prepared. The typical process includes:

Bottle Unscrambling

Automatic bottle unscrambling systems arrange empty bottles into the production line without manual contact.

Bottle Air Washing

Sterile compressed air is used to remove:

• Dust particles
• Glass particles
• Plastic particles

Sterilization Process

Depending on the bottle material and production requirements, sterilization methods may include:

• Steam sterilization
• Gamma sterilization
• Sterile component supply

4. Precision Sterile Filling System

The filling process is the core stage where sterility must be maintained. A high-quality eye drop filling machine uses precision filling technologies such as:

• Peristaltic pump filling
• Ceramic piston pump filling
• Servo-controlled filling systems

Peristaltic Pump Filling

Peristaltic pumps are widely used for sterile eye drop production because the liquid only contacts the sterile tubing.

Advantages:

• Reduced cross-contamination risk
• Easy product changeover
• Simplified cleaning validation
• Suitable for preservative-free eye drops

Ceramic Piston Pump Filling

Ceramic piston pumps provide:

• High filling accuracy
• Excellent repeatability
• Long service life
• Stable performance for high-speed production

5. Laminar Airflow Protection During Filling

During filling, the product and open containers are exposed to the highest contamination risk. Therefore, modern aseptic eye drop filling machines are equipped with:

• Grade A laminar airflow protection
• HEPA filtration
• Unidirectional airflow
• Sterile filling chamber

6. Automatic Plugging and Capping Under Sterile Conditions

After liquid filling, the bottle must be immediately closed to maintain sterility. The filling machine automatically performs:

• Dropper plug insertion
• Cap placement
• Screw capping

A servo-controlled capping system ensures:

• Accurate torque control
• Reliable sealing
• Consistent container closure integrity

7. Online Vision Inspection and Rejection System

Quality inspection is another important step in maintaining sterile product quality. Modern eye drop production lines use automatic vision inspection systems to detect:

• Missing bottle
• Missing filling
• Incorrect liquid level
• Missing inner plug
• Missing cap
• High cap
• Crooked cap
• Damaged bottle

8. Cleaning and Validation Requirements

To maintain long-term sterility performance, pharmaceutical equipment must support cleaning and validation procedures.

Important requirements include:

• CIP (Clean-In-Place)
• SIP (Sterilization-In-Place)
• Cleaning validation
• Equipment qualification

Required pharmaceutical documentation normally includes:

• Design Qualification (DQ)
• Factory Acceptance Test (FAT)
• Site Acceptance Test (SAT)
• Installation Qualification (IQ)
• Operational Qualification (OQ)
• Performance Qualification (PQ)

These validation activities ensure that the equipment consistently performs according to GMP requirements.

9. Compliance with Global GMP Standards

A reliable aseptic eye drop filling machine should be designed according to international pharmaceutical regulations.

Key standards include:

• FDA 21 CFR Part 210/211
• EU GMP Annex 1
• PIC/S GMP
• WHO GMP

Typical GMP design features include:

• SS316L product-contact materials
• Smooth surface finishing
• Hygienic piping design
• Easy cleaning structure
• Closed processing areas
• Automated control system

How does Shanghai Reliance Machinery ensure sterile eye drop filling?

Shanghai Reliance Machinery provides advanced eye drop filling machines and complete ophthalmic liquid filling solutions for pharmaceutical manufacturers worldwide.

Our aseptic eye drop filling machine solutions include:

• Automatic bottle feeding
• Sterile air washing
• Precision liquid filling
• Dropper insertion
• Servo capping
• Vision inspection
• Automatic rejection
• Labeling and packaging integration

Designed for compliance with FDA and EU GMP requirements, our machines help pharmaceutical companies achieve reliable sterile production, improved efficiency, and consistent product quality.

Conclusion

Maintaining sterility during eye drop bottle liquid filling requires a combination of advanced equipment design, controlled cleanroom conditions, validated processes, and strict GMP management.

A modern eye drop filling machine provides more than accurate filling—it creates a complete sterile manufacturing environment through laminar airflow protection, automatic handling, contamination control, and intelligent inspection.

For pharmaceutical manufacturers producing ophthalmic solutions, investing in a reliable aseptic eye drop filling machine is essential to ensure product safety, regulatory compliance, and long-term manufacturing success.

Discover the top 10 questions to ask before buying a pharma sterile liquid filling capping machine, including GMP compliance, filling accuracy, automation, and maintenance.

Choosing the right pharmaceutical sterile liquid filling capping machine is an important decision for any drug manufacturer. The equipment directly affects product quality, production efficiency, GMP compliance, and long-term operating costs.

Before investing in a sterile liquid filling machine, pharmaceutical companies should carefully evaluate the following key questions.

1. What Type of Sterile Liquid Products Will Be Filled?

Different pharmaceutical liquids require different filling technologies. Before purchasing a machine, consider:

• Eye drops

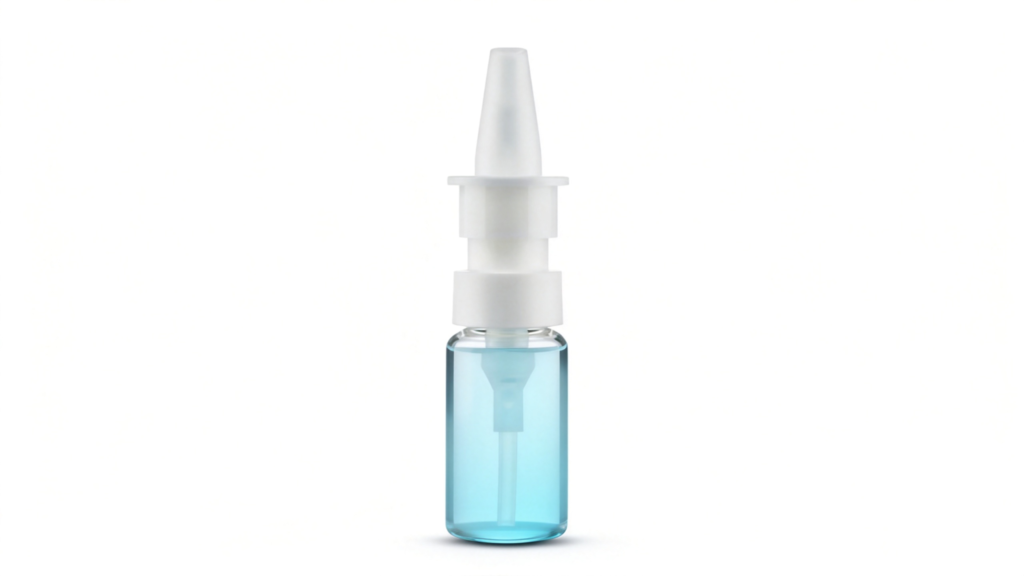

• Nasal sprays
• Injectable solutions
• Oral liquids
• Topical liquids
• Anesthetic liquids

Product characteristics such as viscosity, volume, and sterility requirements will determine the suitable filling system.

2. What Filling Accuracy Does the Machine Provide?

Filling accuracy is critical for pharmaceutical production. A reliable sterile liquid filling capping machine should provide:

• High filling precision
• Stable filling performance
• Automatic volume adjustment
• Minimal product loss

Common filling systems include:

• Peristaltic pump
• Ceramic piston pump
• Time-pressure filling system

3. Does the Machine Meet GMP and Regulatory Requirements?

Sterile pharmaceutical production requires strict compliance with regulations. The filling machine should be designed according to:

• EU GMP requirements
• FDA requirements
• PIC/S guidelines
• Data integrity requirements

Important features include stainless steel construction, hygienic design, and validation support.

4. Can the Machine Prevent Contamination Risks?

Aseptic manufacturing requires effective contamination control. Key functions include:

• Sterile product contact parts
• Cleanroom-compatible design
• No bottle, no fill function
• No bottle, no cap function
• Optional RABS or isolator integration

5. What Is the Production Capacity?

The machine capacity should match your production requirements. Consider:

• Bottles per minute
• Working hours per day
• Future production expansion

A scalable pharma liquid filling line can help manufacturers increase output without replacing the complete system.

6. How Easy Is the Machine to Clean and Maintain?

Easy maintenance helps reduce downtime. A good sterile filling machine should offer:

• Quick-change parts
• Easy access to components
• Simple cleaning procedures
• Reliable spare parts supply

7. What Inspection Functions Are Available?

Automatic inspection improves product quality and reduces manual checking. Optional inspection systems include:

• Vision inspection
• Fill level inspection
• Cap inspection
• Check weighing system
• Missing component detection

8. Can the Machine Handle Different Bottle Sizes?

Pharmaceutical manufacturers often require multiple package formats. A flexible filling machine should support:

• Different bottle diameters
• Different filling volumes
• Quick product changeover
• Recipe management through PLC system

9. What Automation and Control System Is Used?

A modern pharmaceutical filling machine should provide intelligent control. Typical features include:

• Siemens PLC and HMI
• Servo motor control
• Alarm monitoring
• Production data recording
• Optional audit trail function

Automation improves reliability and operator efficiency.

10. Does the Supplier Provide Complete Technical Support?

Choosing an experienced pharmaceutical machinery supplier is essential. Before purchase, check whether the supplier provides:

• Machine customization
• Installation support
• FAT and SAT service
• IQ/OQ documentation
• Operator training
• After-sales service

Conclusion

Buying a pharma sterile liquid filling capping machine requires careful evaluation of product requirements, filling technology, GMP compliance, automation level, and supplier experience.

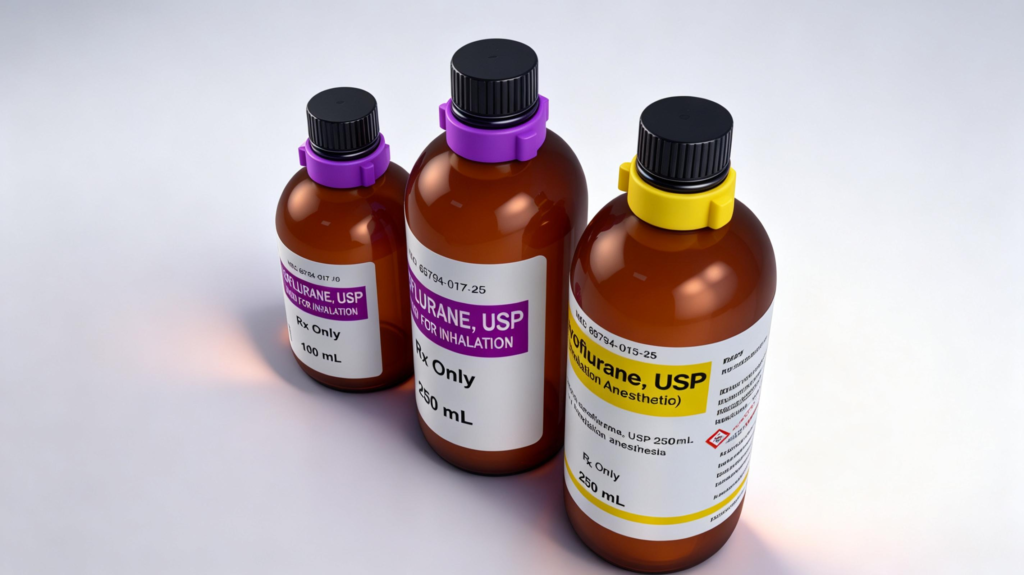

Successful Installation of Automatic Sevoflurane Filling Capping Line for Pharmaceutical Production

Shanghai Reliance Machinery recently completed the installation and commissioning of a high-speed sevoflurane filling machine for a pharmaceutical manufacturer in Europe. The project was designed to provide a reliable and GMP-compliant solution for the automatic filling and capping of sevoflurane inhalation anesthetic liquid.

This successful installation demonstrates Reliance’s expertise in designing and manufacturing sevoflurane filling capping machines for global pharmaceutical companies.

Project Background

Sevoflurane is a widely used inhalation anesthetic agent that requires precise filling technology and strict quality control during production. Due to the characteristics of anesthetic liquids, the filling system must provide:

• High filling accuracy
• Excellent sealing performance
• Minimal product loss
• Stable continuous operation
• Compliance with pharmaceutical GMP requirements

The European customer required an automated filling solution capable of improving production efficiency while ensuring product quality and process reliability.

Customized Sevoflurane Filling Capping Machine Solution

Based on the customer’s production requirements, Shanghai Reliance supplied a complete automatic sevoflurane filling and capping machine with integrated functions:

• Bottle feeding system
• High-precision liquid filling
• Automatic cap placement
• Servo-controlled capping
• Filling volume monitoring
• Cap detection and rejection
• PLC control system

The machine is specially designed for pharmaceutical liquid filling applications, including inhalation anesthetics such as sevoflurane and isoflurane.

Key Features of the Sevoflurane Filling Machine

High-Accuracy Filling System

The machine adopts an advanced filling system to ensure stable filling performance for anesthetic liquids.

Features include:

• Precise filling volume control
• Reduced liquid waste
• Consistent product quality
• Suitable for different bottle sizes

GMP-Compliant Design

The equipment is manufactured with pharmaceutical standards in mind:

• Stainless steel 304/316L construction
• Hygienic product contact parts
• Easy cleaning design
• Cleanroom-compatible structure

The system can be integrated into GMP pharmaceutical production environments.

Automatic Capping and Inspection

The sevoflurane filling capping machine integrates automatic cap handling and quality inspection functions.

The system can detect and reject:

• Missing caps
• Incorrect caps
• Loose or abnormal sealing conditions

This helps ensure every finished bottle meets pharmaceutical packaging requirements.

Project Results

After installation and commissioning, the sevoflurane filling line achieved:

• Stable automatic production
• Improved filling efficiency
• Reduced manual operation
• Enhanced product consistency
• Reliable pharmaceutical packaging performance

The successful European installation highlights Shanghai Reliance Machinery’s ability to provide customized inhalation anesthetic filling solutions for international pharmaceutical manufacturers.

Reliable Partner for Sevoflurane Filling Solutions

Shanghai Reliance Machinery specializes in the design and manufacture of:

• Sevoflurane Filling Capping Machine
• Isoflurane Filling Machine
• Pharmaceutical Liquid Filling Machine
• Sterile Liquid Filling Line
• GMP Pharmaceutical Packaging Equipment

With professional engineering experience and global project support, Reliance provides complete solutions for pharmaceutical companies requiring accurate, safe, and efficient liquid filling systems.

Sterility is one of the most critical quality requirements during eye drop bottle liquid filling because ophthalmic products are directly applied to the human eye. Any microbial contamination, particulate contamination, or loss of container closure integrity may affect product safety and patient health.

To ensure product quality, pharmaceutical manufacturers must use advanced filling equipment and strict aseptic manufacturing processes. A modern eye drop filling machine is designed not only for accurate liquid dosing but also for maintaining a controlled sterile environment throughout the filling, plugging, and capping process.

An advanced aseptic eye drop filling machine integrates cleanroom technology, sterile air protection, precision filling systems, automatic inspection, and validated processes to meet international pharmaceutical standards, including FDA 21 CFR Part 210/211, EU GMP Annex 1, and PIC/S GMP requirements.

Why Sterility Is Important in Eye Drop Manufacturing

Eye drops are classified as sterile pharmaceutical products because they are administered directly onto sensitive ocular tissues. Unlike many oral liquid products, eye drops must meet strict microbiological quality requirements.

The main contamination risks during eye drop production include:

• Microorganisms from the environment
• Particles generated by operators or equipment
• Contaminated containers or closures
• Poor filling area control
• Improper sealing after filling

1. Cleanroom Environment Control

The first step in maintaining sterility during eye drop filling is controlling the manufacturing environment. A pharmaceutical-grade eye drop filling machine is usually installed in a controlled cleanroom environment.

Typical cleanroom configuration:

• Grade A / ISO 5 filling zone
• Grade B background area for aseptic processing
• Grade C/D preparation areas

The filling area is protected by:

• HEPA-filtered air supply
• Laminar airflow system
• Positive pressure control
• Temperature and humidity monitoring

2. Use of Aseptic Eye Drop Filling Machine Technology

An aseptic eye drop filling machine is specifically designed to protect the product from contamination during liquid filling.

The machine integrates multiple sterile protection technologies, including:

• Stainless steel 316L product-contact parts
• Sterile liquid pathway design
• Closed filling system
• Automatic bottle handling
• No bottle, no filling function
• No bottle, no cap function

3. Sterile Bottle Preparation Before Filling

Before entering the filling station, eye drop bottles must be properly prepared. The typical process includes:

Bottle Unscrambling

Automatic bottle unscrambling systems arrange empty bottles into the production line without manual contact.

Bottle Air Washing

Sterile compressed air is used to remove:

• Dust particles
• Glass particles
• Plastic particles

Sterilization Process

Depending on the bottle material and production requirements, sterilization methods may include:

• Steam sterilization
• Gamma sterilization
• Sterile component supply

4. Precision Sterile Filling System

The filling process is the core stage where sterility must be maintained. A high-quality eye drop filling machine uses precision filling technologies such as:

• Peristaltic pump filling
• Ceramic piston pump filling
• Servo-controlled filling systems

Peristaltic Pump Filling

Peristaltic pumps are widely used for sterile eye drop production because the liquid only contacts the sterile tubing.

Advantages:

• Reduced cross-contamination risk
• Easy product changeover
• Simplified cleaning validation
• Suitable for preservative-free eye drops

Ceramic Piston Pump Filling

Ceramic piston pumps provide:

• High filling accuracy
• Excellent repeatability
• Long service life
• Stable performance for high-speed production

5. Laminar Airflow Protection During Filling

During filling, the product and open containers are exposed to the highest contamination risk. Therefore, modern aseptic eye drop filling machines are equipped with:

• Grade A laminar airflow protection
• HEPA filtration
• Unidirectional airflow
• Sterile filling chamber

6. Automatic Plugging and Capping Under Sterile Conditions

After liquid filling, the bottle must be immediately closed to maintain sterility. The filling machine automatically performs:

• Dropper plug insertion
• Cap placement
• Screw capping

A servo-controlled capping system ensures:

• Accurate torque control
• Reliable sealing
• Consistent container closure integrity

7. Online Vision Inspection and Rejection System

Quality inspection is another important step in maintaining sterile product quality. Modern eye drop production lines use automatic vision inspection systems to detect:

• Missing bottle
• Missing filling
• Incorrect liquid level
• Missing inner plug
• Missing cap
• High cap
• Crooked cap
• Damaged bottle

8. Cleaning and Validation Requirements

To maintain long-term sterility performance, pharmaceutical equipment must support cleaning and validation procedures.

Important requirements include:

• CIP (Clean-In-Place)
• SIP (Sterilization-In-Place)
• Cleaning validation
• Equipment qualification

Required pharmaceutical documentation normally includes:

• Design Qualification (DQ)
• Factory Acceptance Test (FAT)
• Site Acceptance Test (SAT)
• Installation Qualification (IQ)
• Operational Qualification (OQ)
• Performance Qualification (PQ)

These validation activities ensure that the equipment consistently performs according to GMP requirements.

9. Compliance with Global GMP Standards

A reliable aseptic eye drop filling machine should be designed according to international pharmaceutical regulations.

Key standards include:

• FDA 21 CFR Part 210/211
• EU GMP Annex 1
• PIC/S GMP
• WHO GMP

Typical GMP design features include:

• SS316L product-contact materials
• Smooth surface finishing
• Hygienic piping design
• Easy cleaning structure
• Closed processing areas
• Automated control system

How does Shanghai Reliance Machinery ensure sterile eye drop filling?

Shanghai Reliance Machinery provides advanced eye drop filling machines and complete ophthalmic liquid filling solutions for pharmaceutical manufacturers worldwide.

Our aseptic eye drop filling machine solutions include:

• Automatic bottle feeding
• Sterile air washing
• Precision liquid filling
• Dropper insertion
• Servo capping
• Vision inspection
• Automatic rejection
• Labeling and packaging integration

Designed for compliance with FDA and EU GMP requirements, our machines help pharmaceutical companies achieve reliable sterile production, improved efficiency, and consistent product quality.

Conclusion

Maintaining sterility during eye drop bottle liquid filling requires a combination of advanced equipment design, controlled cleanroom conditions, validated processes, and strict GMP management.

A modern eye drop filling machine provides more than accurate filling—it creates a complete sterile manufacturing environment through laminar airflow protection, automatic handling, contamination control, and intelligent inspection.

For pharmaceutical manufacturers producing ophthalmic solutions, investing in a reliable aseptic eye drop filling machine is essential to ensure product safety, regulatory compliance, and long-term manufacturing success.

Both the US FDA and European Union GMP regulations emphasize contamination prevention, process control, equipment validation, and traceability for sterile pharmaceutical manufacturing. A qualified aseptic eye drop filling machine should support key requirements, including:

• High-level contamination control during filling
• Cleanroom-compatible machine design
• Accurate liquid dosing performance
• Sterile product protection
• Reliable filling and capping operations
• Complete documentation for equipment qualification
• Data integrity and production traceability

The latest EU GMP Annex 1 guidelines for sterile medicinal products place strong emphasis on contamination control strategies (CCS), barrier technology, environmental monitoring, and automated aseptic processing.

RELIANCE eye drops filling equipment is designed based on these principles to help pharmaceutical companies meet global compliance expectations.

How Does RELIANCE Eye Drops Filling Machine Support FDA Compliance?

FDA regulations require pharmaceutical manufacturers to ensure that sterile drug products are produced using controlled and validated processes.

RELIANCE eye drop filling and capping machines incorporate several design features that support FDA-compliant production:

Aseptic Filling Design

The machine adopts an optimized aseptic filling structure to reduce the risk of microbial contamination. Depending on customer requirements, the system can be integrated with:

• Laminar airflow protection
• Restricted Access Barrier System (RABS)
• Isolator technology

Accurate and Reliable Filling System

Eye drop products usually require precise filling volumes, such as 5ml, 10ml, 15ml, or 20ml.

RELIANCE machines can use advanced filling technologies such as:

• Peristaltic pump filling system
• Ceramic pump filling system

GMP-Compatible Automation Components

The equipment uses internationally recognized automation components, including:

• Siemens PLC control system
• Siemens HMI touchscreen operation
• Servo motor control technology
• Safety monitoring system

How Does RELIANCE Eye Drops Filling Machine Meet EU GMP Requirements?

EU GMP regulations focus heavily on sterile manufacturing control. RELIANCE designs its aseptic eye drop filling machine according to GMP engineering principles.

Key GMP features include:

1. Hygienic Machine Design

The machine structure is designed for pharmaceutical environments:

• Stainless steel 304/316L materials
• Smooth surfaces with easy cleaning design
• Reduced dead corners
• Easy access for maintenance and sterilization

2. No Bottle No Filling, No Bottle No Capping System

To improve production safety and reduce product loss, RELIANCE eye drop filling machines are equipped with intelligent control functions:

• No bottle, no filling
• No bottle, no cap feeding
• Automatic rejection of defective bottles

3. Vision Inspection System

Modern pharmaceutical production requires strict quality control.

RELIANCE eye drop filling lines can integrate vision inspection systems to detect:

• Missing caps
• Incorrect cap positioning
• Filling level errors
• Container defects
• Labeling mistakes

Qualification and Documentation Support for Pharmaceutical Projects

For regulated pharmaceutical markets, equipment documentation is an important part of project approval.

RELIANCE can provide pharmaceutical equipment documentation support, including:

• User Requirement Specification (URS)
• Design Qualification (DQ)
• Installation Qualification (IQ)
• Operational Qualification (OQ)
• Factory Acceptance Test (FAT)
• Site Acceptance Test (SAT)
• Operation manuals
• Maintenance manuals

Why Choose RELIANCE Sterile Eye Drops Filling Machine?

Choosing the right equipment supplier is essential for pharmaceutical manufacturers looking for long-term production reliability.

RELIANCE provides:

Global GMP-Oriented Design

Our machines are developed for pharmaceutical companies worldwide, supporting requirements from different regulated markets.

Complete Eye Drop Production Solutions

RELIANCE can provide complete production lines including:

• Bottle unscrambler machine
• Air washing machine
• Eye drops filling and capping machine
• Vision inspection system
• Labeling machine
• Cartoning machine

Flexible Production Capacity

RELIANCE eye drop filling machines are available for different production requirements, from laboratory-scale production to high-speed commercial manufacturing.

Is the RELIANCE Eye Drops Filling Machine FDA and EU GMP Compliant?

Yes. RELIANCE eye drops filling machines are designed with FDA and EU GMP compliance requirements in mind. Through aseptic filling technology, GMP-friendly design, automated control systems, and comprehensive documentation support, RELIANCE helps pharmaceutical manufacturers produce safe and high-quality ophthalmic products.

For companies searching for a reliable sterile eye drops filling machine manufacturer, RELIANCE provides customized solutions for eye drop, nasal spray, ear drop, and other sterile liquid pharmaceutical production applications.

Introduction

Volatile anesthetic liquids, such as isoflurane, sevoflurane, and desflurane, are widely used in modern anesthesia systems due to their fast onset and controllable anesthetic effects. During pharmaceutical production, achieving high volatile anesthetic liquid filling accuracy is one of the most important challenges for manufacturers.

Because these anesthetic liquids have characteristics such as high volatility, low viscosity, and strict dosage requirements, pharmaceutical companies need advanced anesthetic liquid filling machines to ensure accurate filling, reduce product loss, and comply with GMP manufacturing standards.

This article explains the key factors that help improve filling accuracy for volatile anesthetic liquids and how a professional volatile anesthetic filling machine can optimize production performance.

Challenges of Filling Volatile Anesthetic Liquids

Unlike conventional pharmaceutical liquids, volatile anesthetics require special filling technologies due to their physical properties.

1. High Volatility and Evaporation Risk

Volatile anesthetic products can easily evaporate during the filling process. Excessive exposure to air may lead to:

• Filling volume deviation
• Product loss
• Unstable filling results
• Increased production cost

2. Low Viscosity and Flow Control

Volatile anesthetic liquids usually have low viscosity, making precise flow control more difficult. Traditional filling methods may cause:

• Liquid dripping
• Foaming
• Inconsistent filling volume

Key Technologies to Improve Volatile Anesthetic Filling Accuracy

1. Use a High-Precision Filling Pump System

The filling pump is the core component affecting filling accuracy. For volatile anesthetic liquids, the filling system should provide:

• High dosing precision
• Stable liquid flow
• Low shear force
• Easy cleaning and maintenance

2. Optimize the Filling Nozzle Design

The filling nozzle directly affects filling performance. A professional volatile anesthetic filling machine should include:

• Anti-dripping filling nozzles
• Diving filling function (if required)
• Short liquid path design
• Sealed filling structure

3. Control the Filling Environment

Environmental conditions can influence volatile anesthetic filling accuracy. Temperature changes may affect liquid expansion and evaporation.

To maintain stable production, pharmaceutical filling lines should include:

• Controlled temperature environment
• Clean production area
• Airflow management
• Proper ventilation system

4. Apply Servo Control Technology

Modern pharmaceutical filling equipment uses servo motors and PLC control systems to improve precision.

Compared with traditional mechanical control systems, servo-driven filling machines provide:

• More accurate filling movement
• Easy parameter adjustment
• Better repeatability
• Faster production changeover

5. Reduce Product Exposure During Filling

Reducing the contact time between anesthetic liquid and the surrounding environment is important for improving accuracy.

Advanced anesthetic filling and capping machines are designed with:

• Automatic bottle feeding
• Closed liquid transfer system
• Automatic filling
• Immediate capping after filling

Importance of Capping Accuracy After Filling

Filling accuracy is not only related to liquid dosing. Proper sealing after filling is also critical for volatile anesthetic products.

A reliable anesthetic liquid filling capping machine should provide:

• Accurate cap positioning
• Controlled capping torque
• Leakage prevention
• Online inspection

Quality Control and Inspection System

To ensure consistent product quality, modern anesthetic filling lines can integrate inspection technologies, including:

• Filling volume inspection
• Missing cap detection
• Cap torque monitoring
• Vision inspection system
• Reject system for defective bottles

How Anesthetic Liquid Filling Machine Improves Production Efficiency

RELIANCE designs and manufactures customized volatile anesthetic liquid filling machines for pharmaceutical companies producing products such as isoflurane and sevoflurane.

The equipment is designed with:

• High-precision filling technology
• Customized filling solutions for volatile liquids
• Servo-controlled operation
• GMP-compliant design
• Automatic filling and capping process
• Reliable inspection systems

The equipment adopts multi-station rotary indexing transmission structure, integrating syringe feeding, inner wall washing, drying sterilization, accurate liquid filling, rubber stopper pressing and output functions into one machine. Each station runs synchronously under servo motor control, with filling precision controlled within ±0.5%, effectively avoiding insufficient or over-filling of expensive injection raw materials. The liquid delivery pipeline is equipped with sterile filter membranes to ensure no microbial contamination during liquid transmission, and the whole filling cavity can be disinfected by online SIP steam sterilization without disassembly.

The fixture of the rotary turntable is customized for standard pre-filled syringes of different specifications (1ml, 3ml, 5ml, 10ml), and mold replacement can be finished within 15 minutes to switch different production batches. All contact liquid components are imported 316L stainless steel and medical-grade silicone, resistant to acid and alkali liquid medicines, and free of material precipitation that affects drug stability. The fully isolated operating cabin isolates the filling area from the external environment, maintaining Class 100 sterile environment inside the cabin during continuous production.

Matched with the ampoule vision inspection machine as the post-process quality control link, the full pre-filled syringe production line realizes automatic closed-loop production from empty syringe feeding to finished product defect detection. For biopharmaceutical factories with strict aseptic requirements, this rotary filling machine reduces human access to the sterile area, minimizes the risk of microbial contamination, and the automatic data recording function meets the traceability requirements of pharmaceutical industry production management, helping enterprises pass international industry compliance audits and enhance product market competitiveness.

The inspection station is divided into three core working modes: standstill shooting, rotary scanning and emergency stop rejection, matched with multi-angle high-speed cameras to capture full-surface images of ampoules. The built-in bottle brake mechanism ensures each ampoule stays in a fixed position during scanning, avoiding blurry images caused by shaking. The AI system is pre-trained with thousands of defective ampoule samples, capable of identifying micro defects including glass chips, black spots, liquid bubbles, unfilled cavities and broken ampoule necks with detection accuracy up to 99.9%.

All transmission parts contacting ampoules use soft silicone fixtures to prevent glass breakage during high-speed conveying. The whole machine adopts fully sealed dust-proof design, suitable for Class 10000 clean pharmaceutical workshops, and the defective product automatic rejection channel separates unqualified ampoules without mixing with finished products. It supports linkage with front ampoule filling-sealing machines and rear labeling machines, realizing online uninterrupted inspection in the full production line.

From the compliance perspective, the inspection data of the machine can be automatically stored and exported, providing complete inspection records for GMP and FDA factory audits, which cannot be realized by manual inspection. For pharmaceutical enterprises producing high-volume injectable ampoules, one vision inspection machine can replace 6-8 lamp inspection workers, cutting labor costs while eliminating the unstable error rate caused by long-time manual visual work, greatly improving the overall product qualification rate of injectable drugs.
